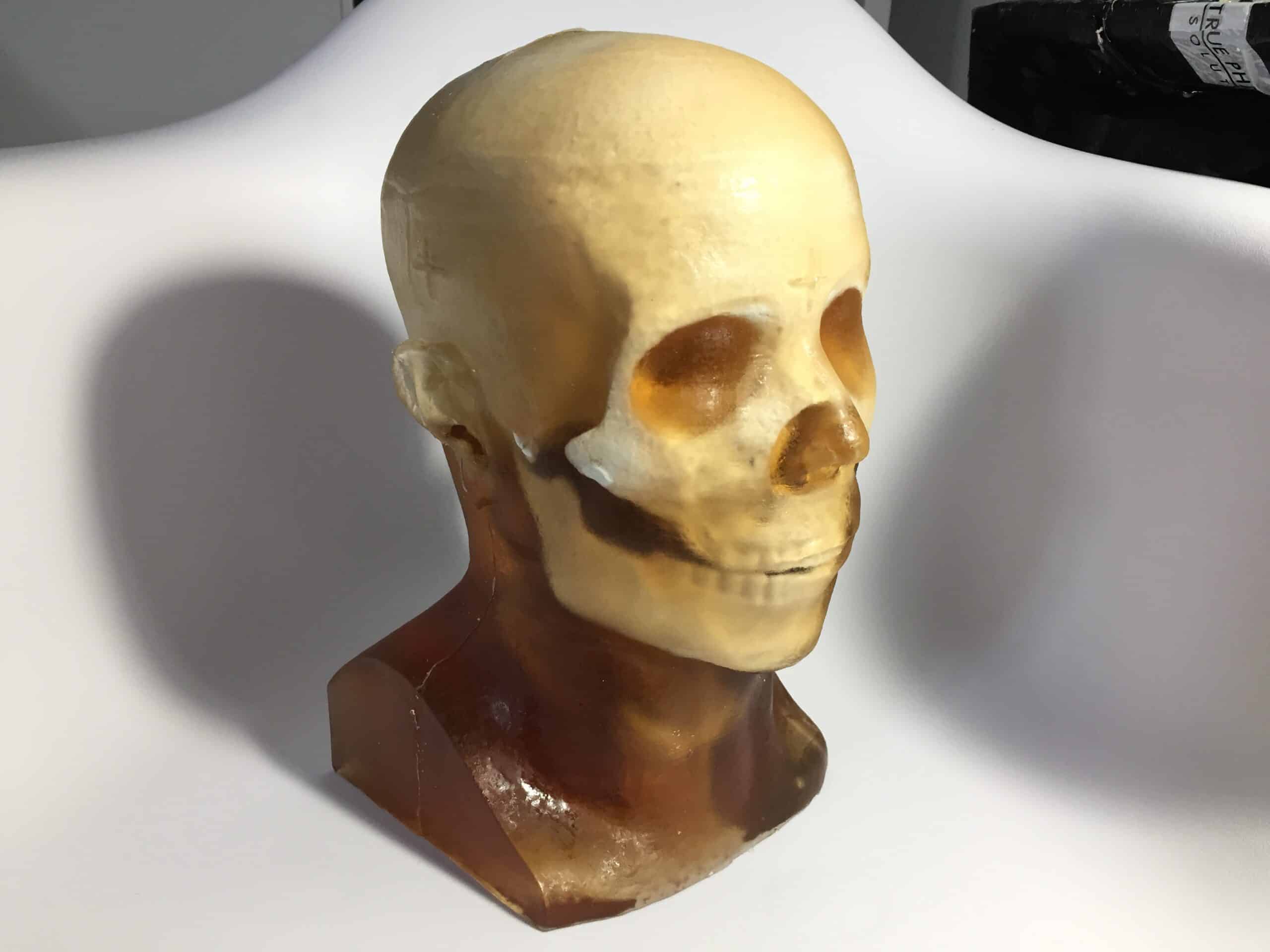

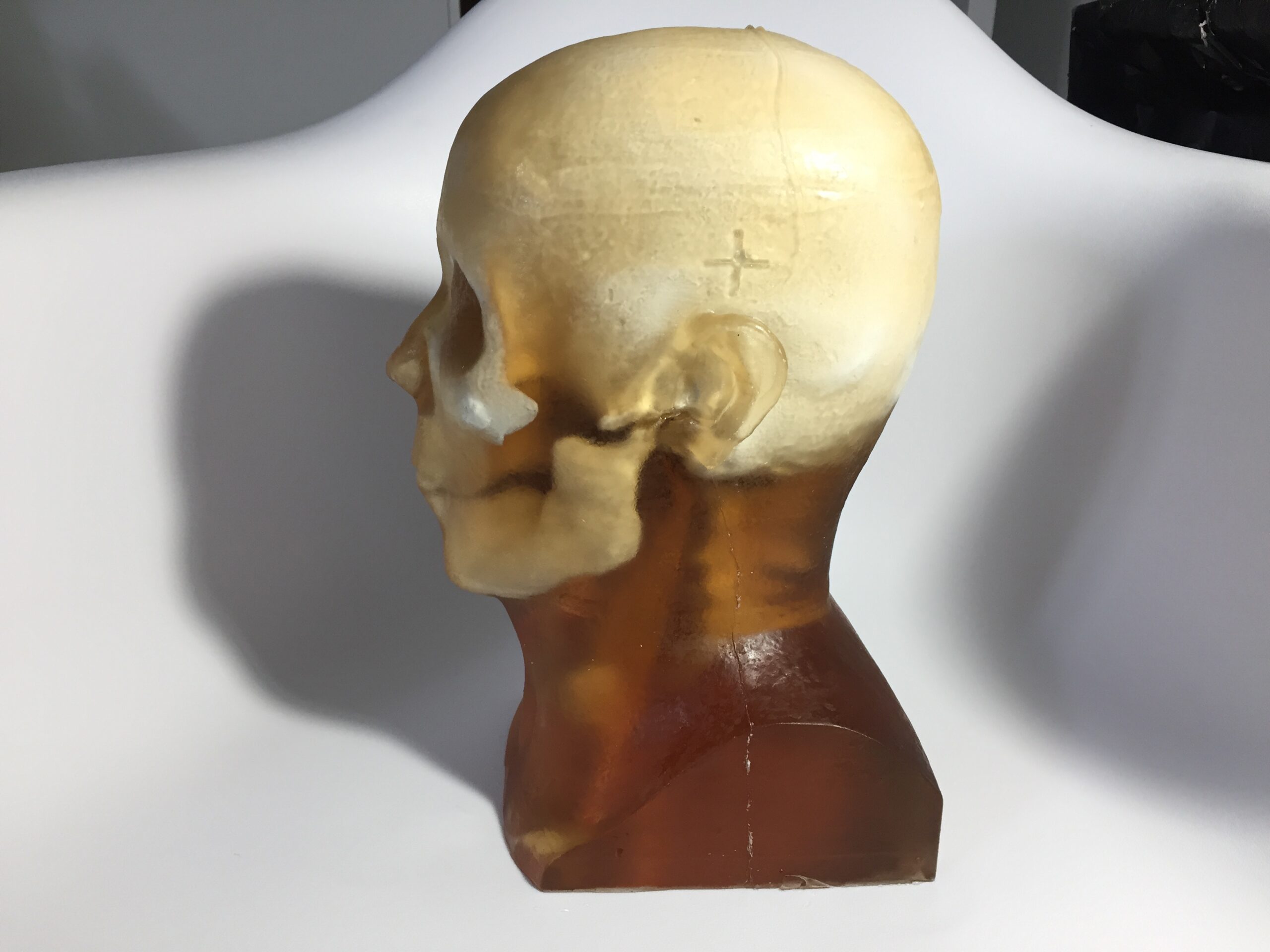

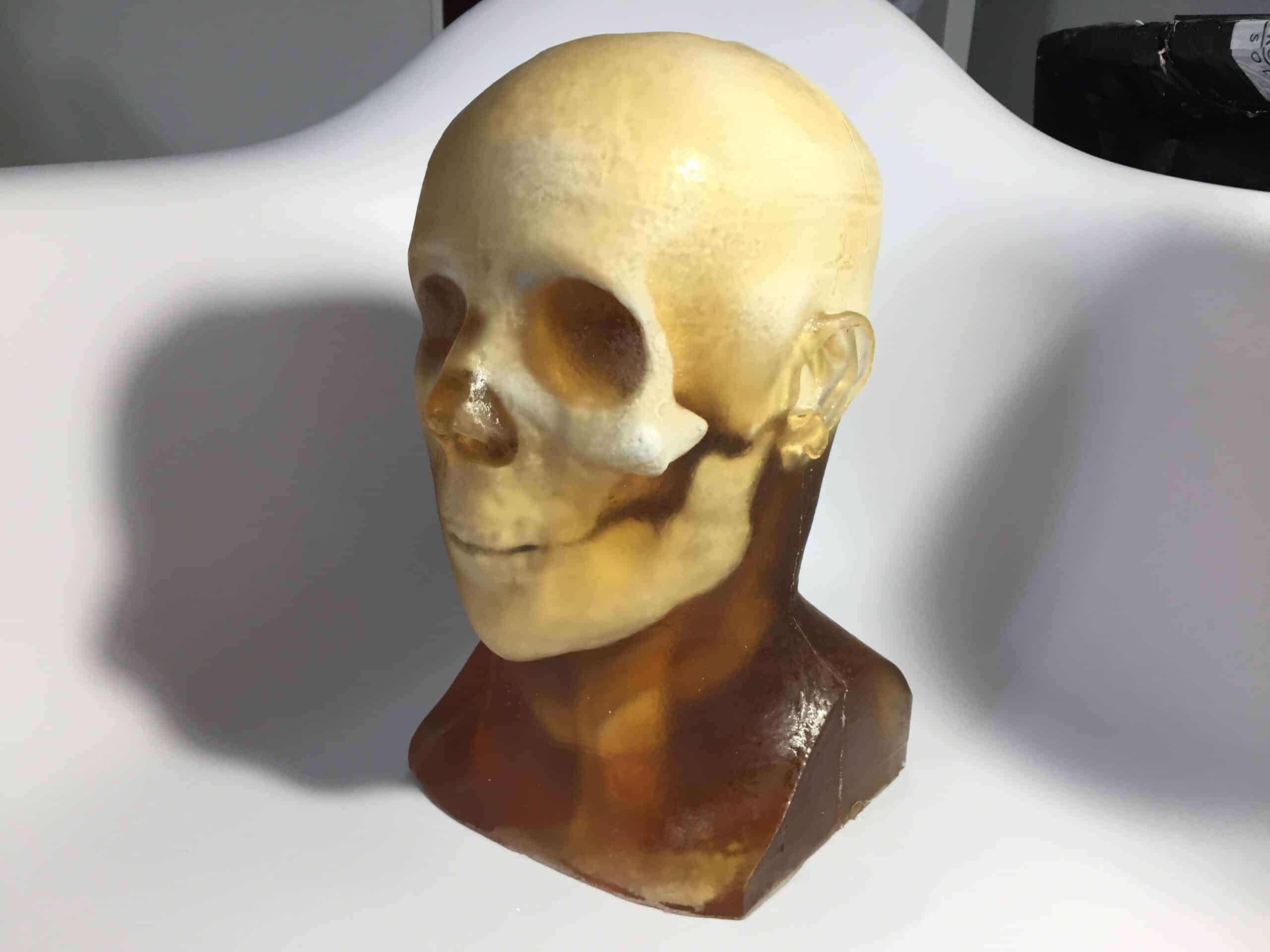

The Adult Head (Static) Phantom is designed to be suitable for medical imaging of foreign static objects such as small bone pieces, shrapnel, bullets, and any other metal or non-metal targets. The phantom is designed based on an average anatomy of a human male head, and it is made out of realistic soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and X-Ray/CT applications.
The materials used to build this phantom are stable with time, and they do not dry out. The skull bone has a realistic three-layered structure with an inner diploe layer.
In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product to be the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with Proton Density imaging methods. The phantom can be still imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

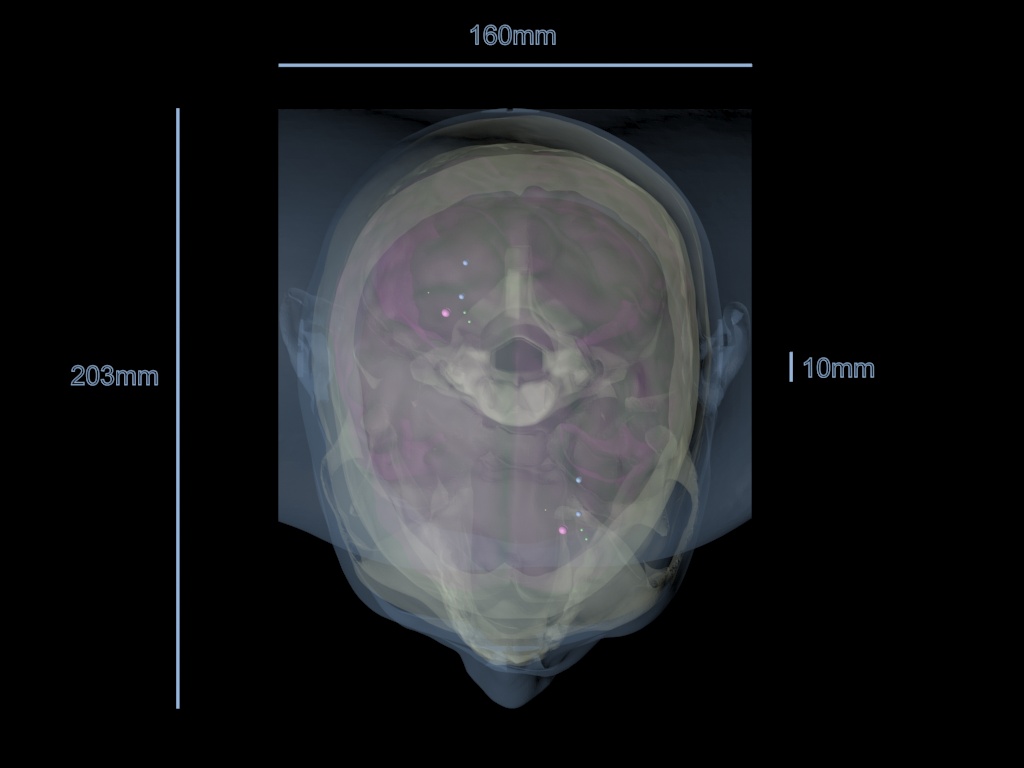

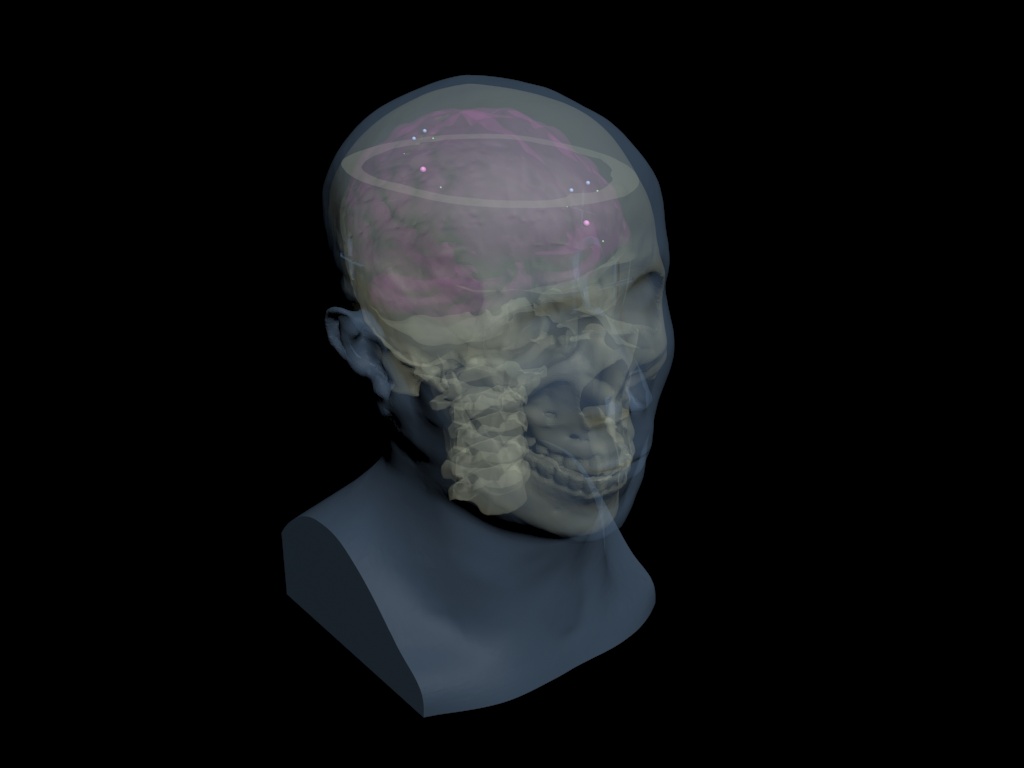

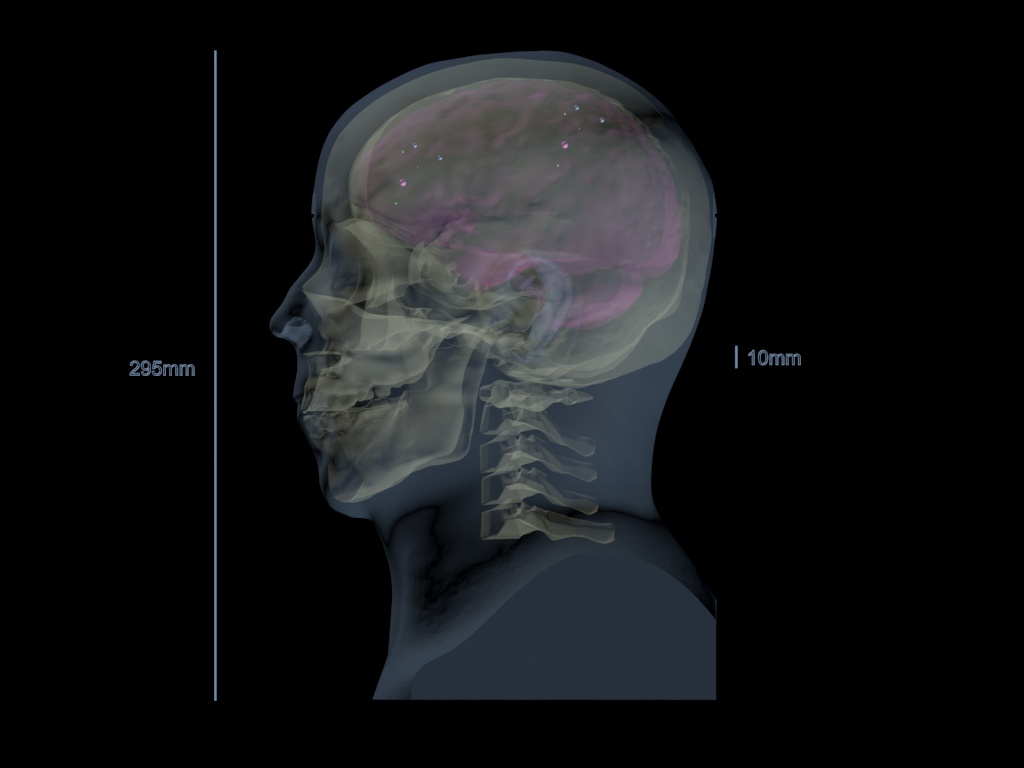

Anatomy:
Realistic Skull Phantom
Realistic Brain Phantom
Gray Matter
Small Static Objects (0.5mm, 1mm, 3mm Diameters)
Cervical Spine

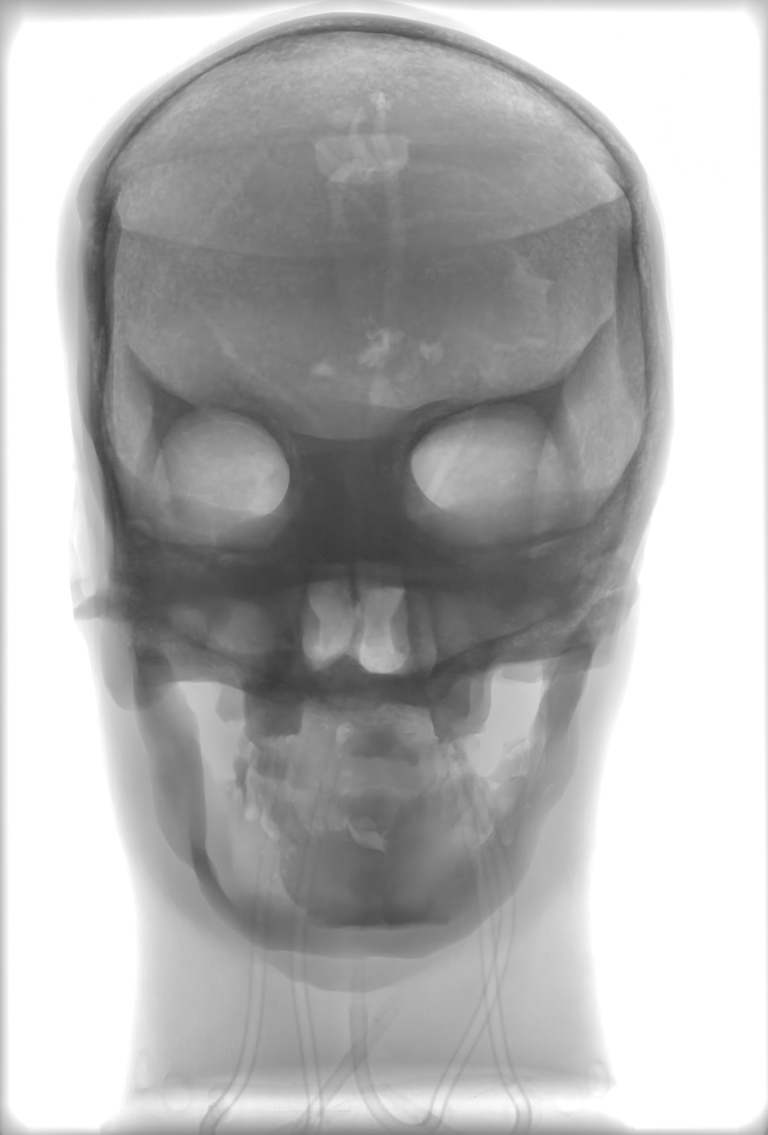

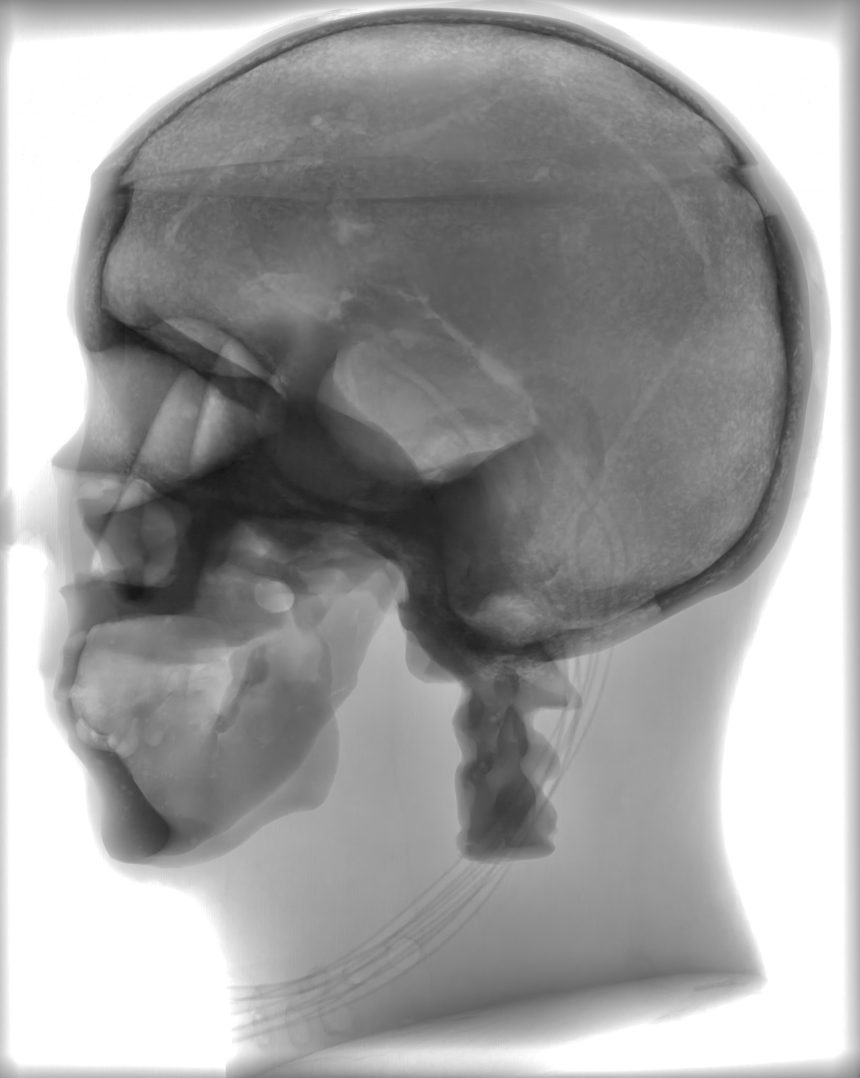

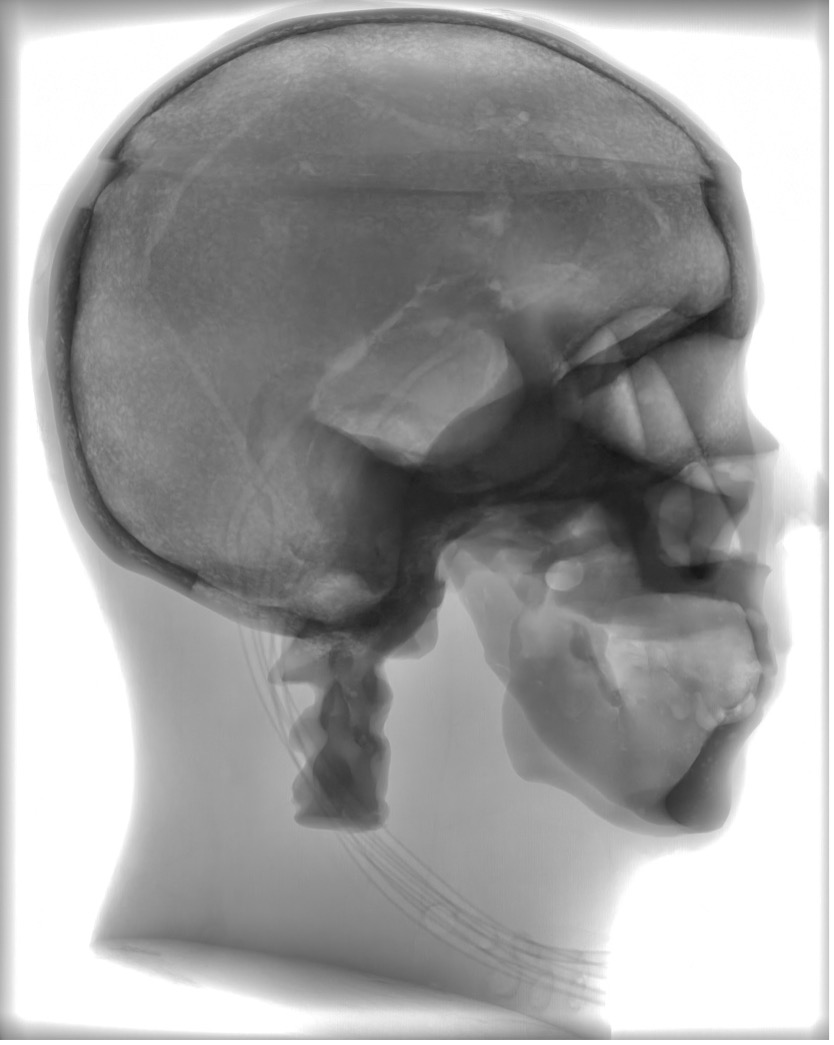

X-Ray Scans:
*/ These X-RAY scans were obtained from our Adult Head (Dynamic) for X-Ray CT, US, MRI SKU: HD-A02. They serve as only an example of our imaging quality. Actual product images may vary. If you have any questions related to these, please write us at info@truephantom.com /*
For more imaging quality references, please see our Radiographs page.

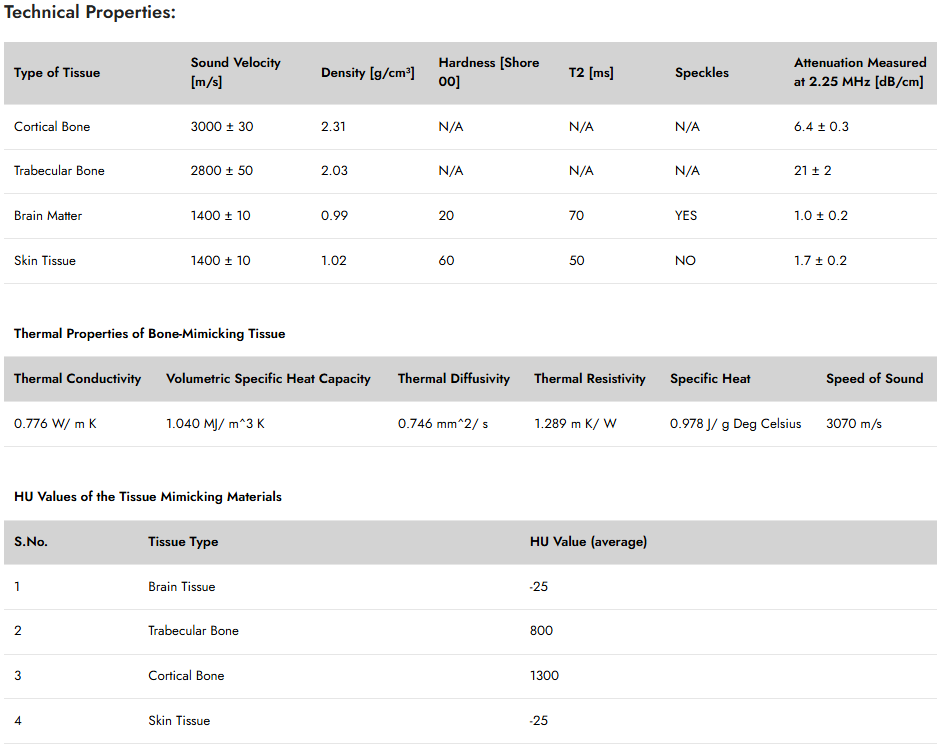

Technical Properties:
Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
Brain Matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
Skin Tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
Thermal Properties of Bone-Mimicking Tissue | |||||
Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
HU Values of the Tissue Mimicking Materials | ||
S.No. | Tissue Type | HU Value (average) |
1 | Brain Tissue | -25 |
2 | Trabecular Bone | 800 |
3 | Cortical Bone | 1300 |
4 | Skin Tissue | -25 |
Add-ons (Optional):
Included in Order:
Adult Head (Static) Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case

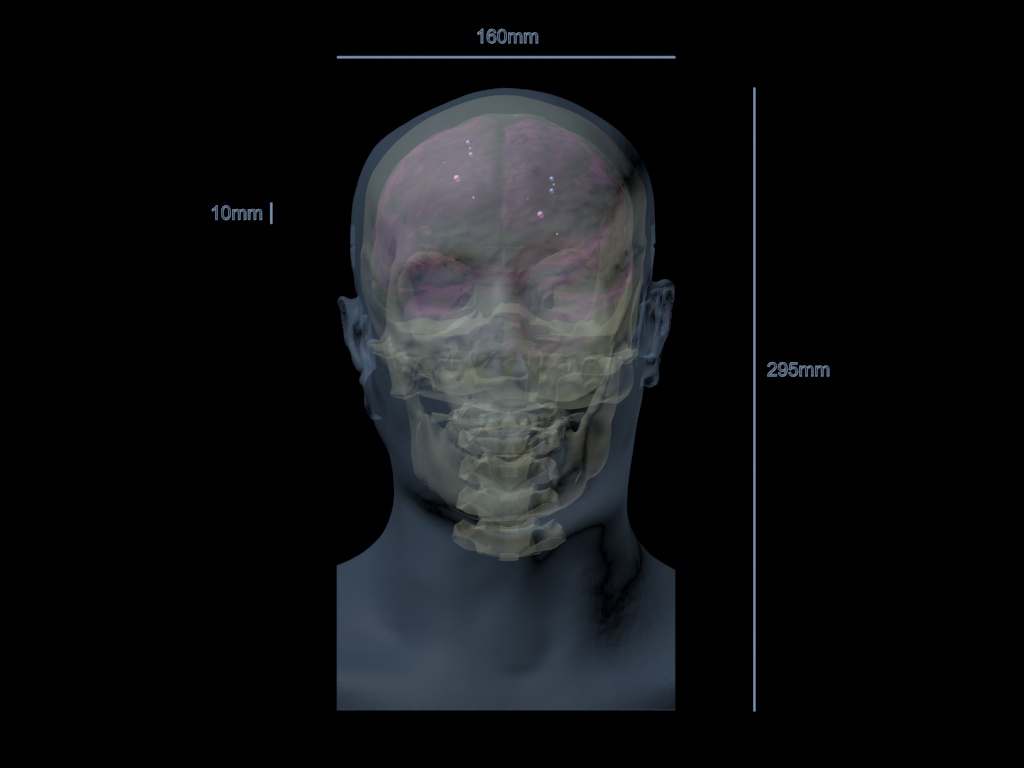

Size & Weight:
Phantom:
Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.).
Shipment:
Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.)
Materials Used:
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ:
Contact us for any questions you may have.
