Description

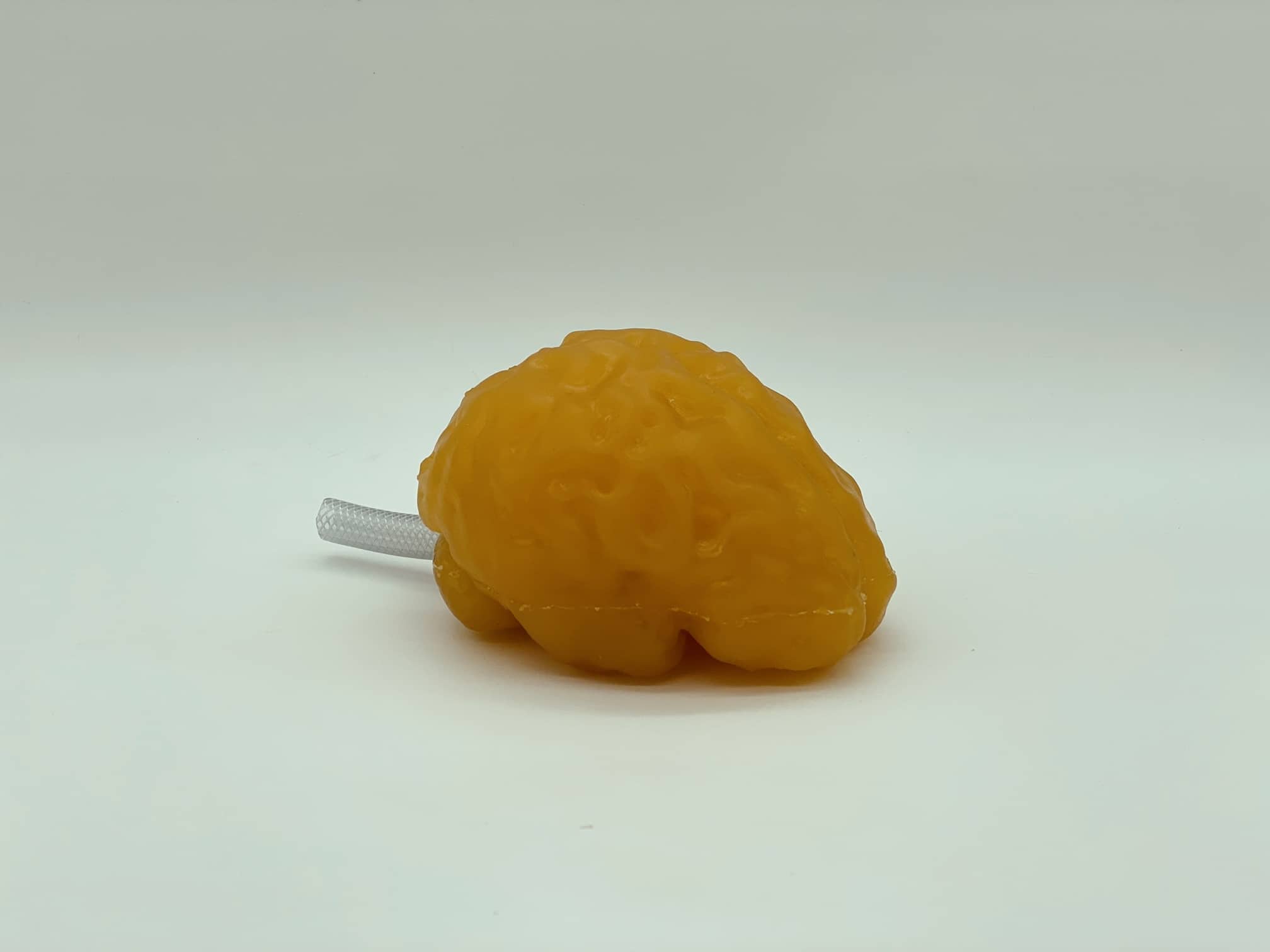

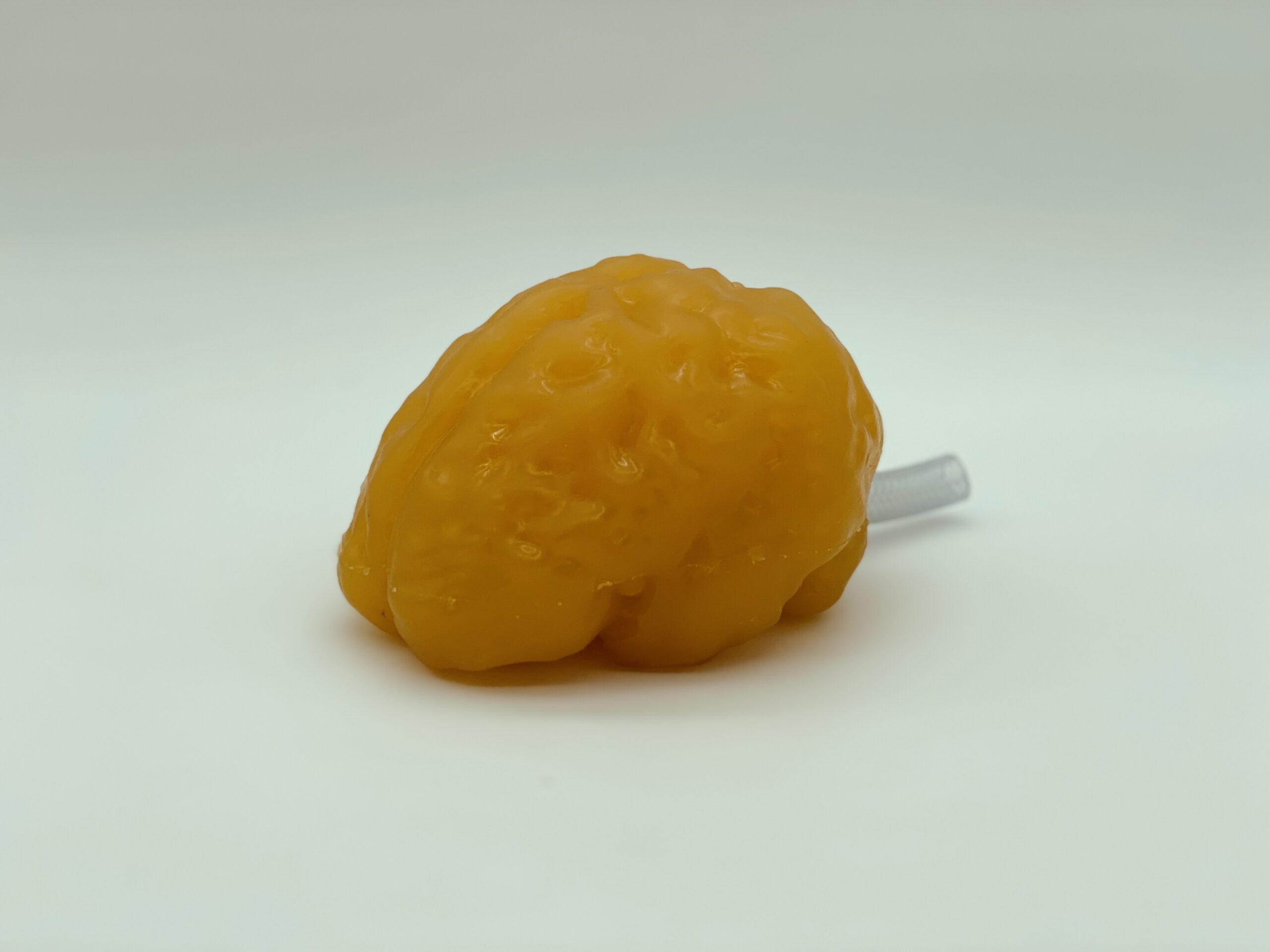

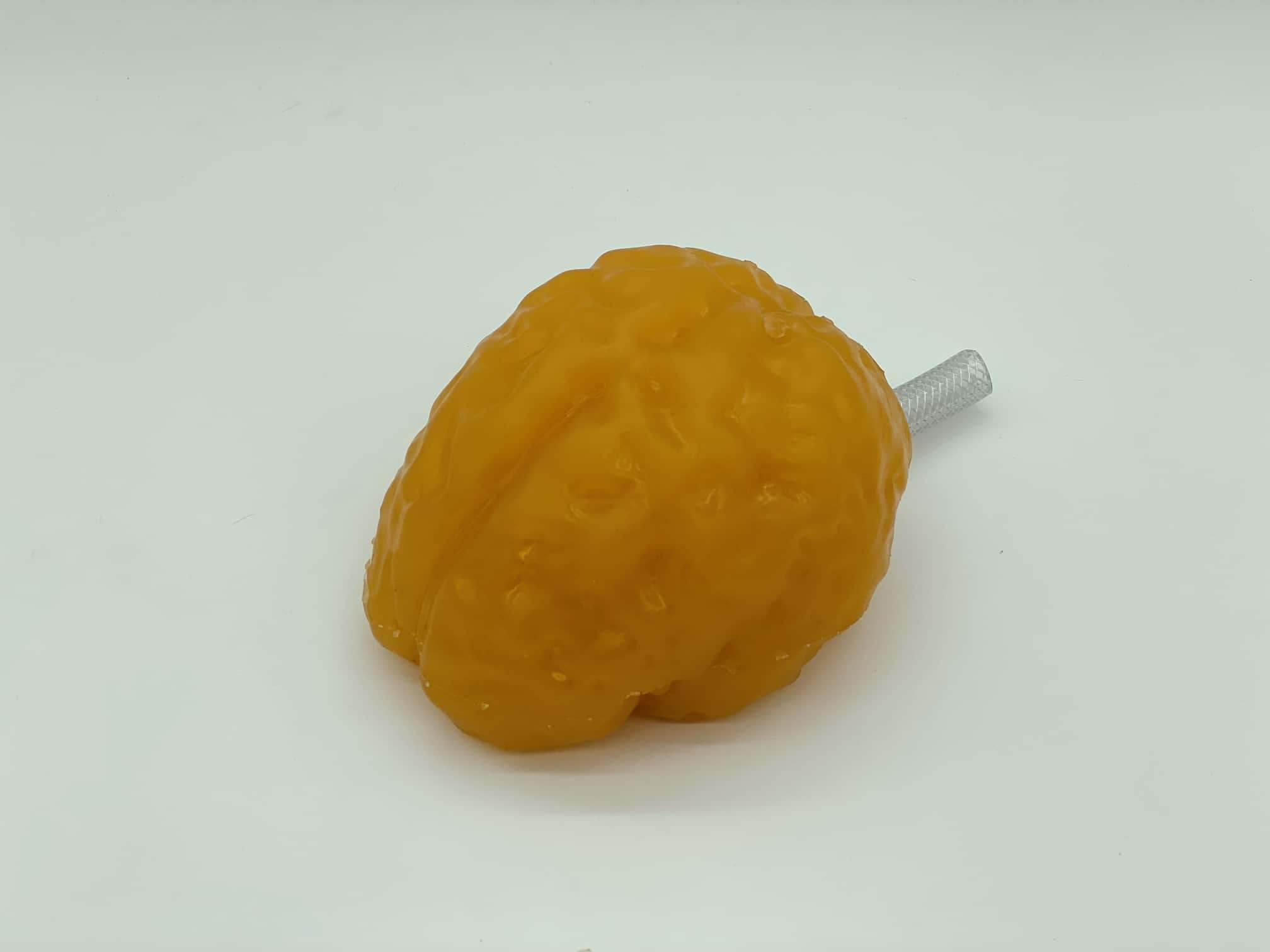

Standard Adult Brain for multipurpose
The phantom is designed based on an average brain and it is made out of realistic tissue mimicking materials suitable for Ultrasound, MRI and CT applications. The Phantom has the following features:
- Geometry & dimensions of an average human
- Realistic brain tissue
- Brain ventricles
- Brain tumor
- Falx cerebri
Design:
-

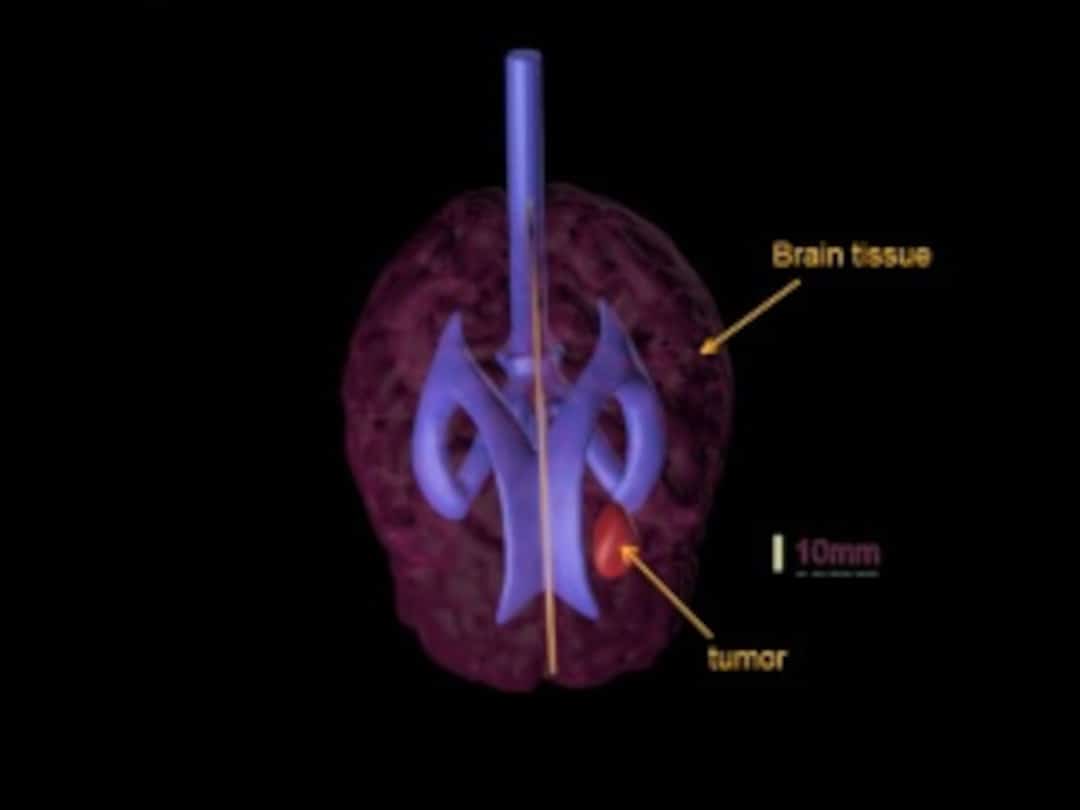

- Top View
-

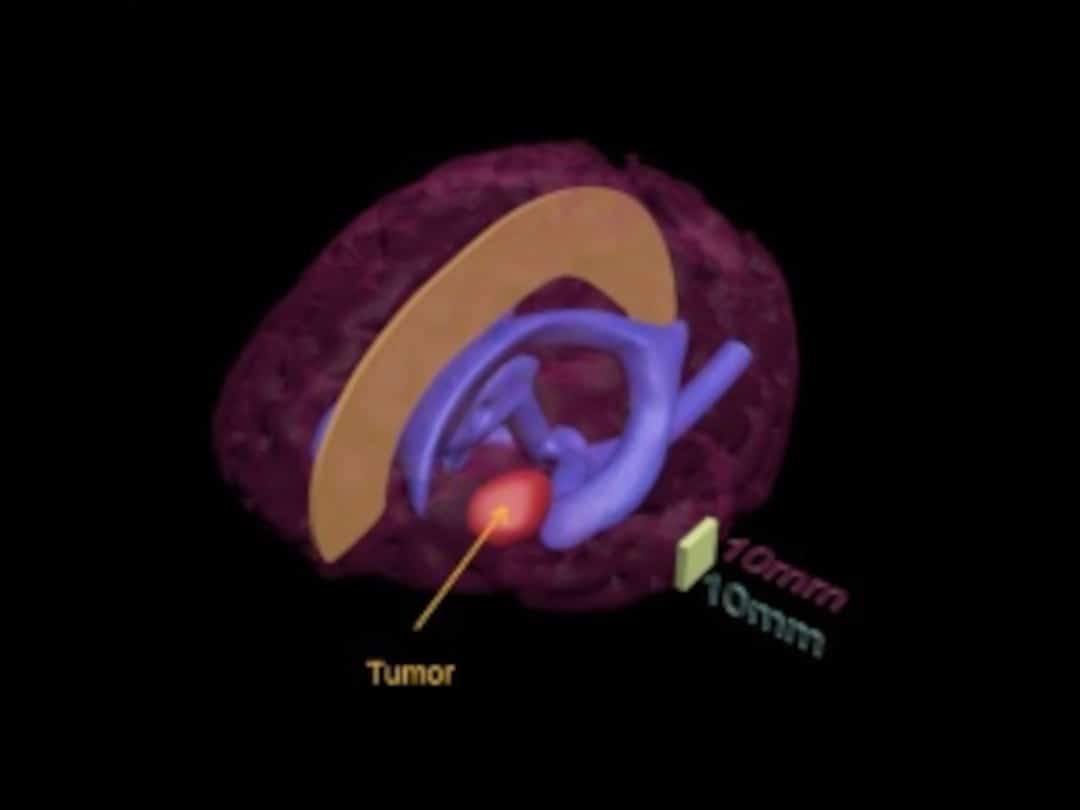

- Perspective View
-

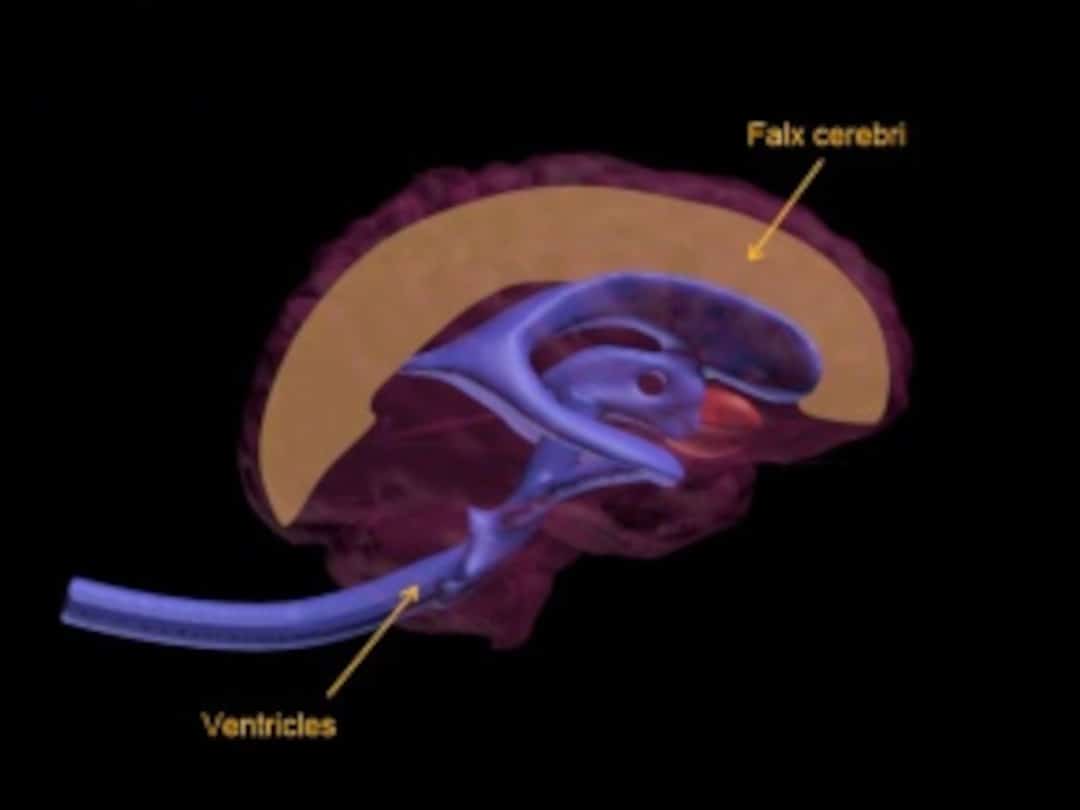

- Lateral View
-

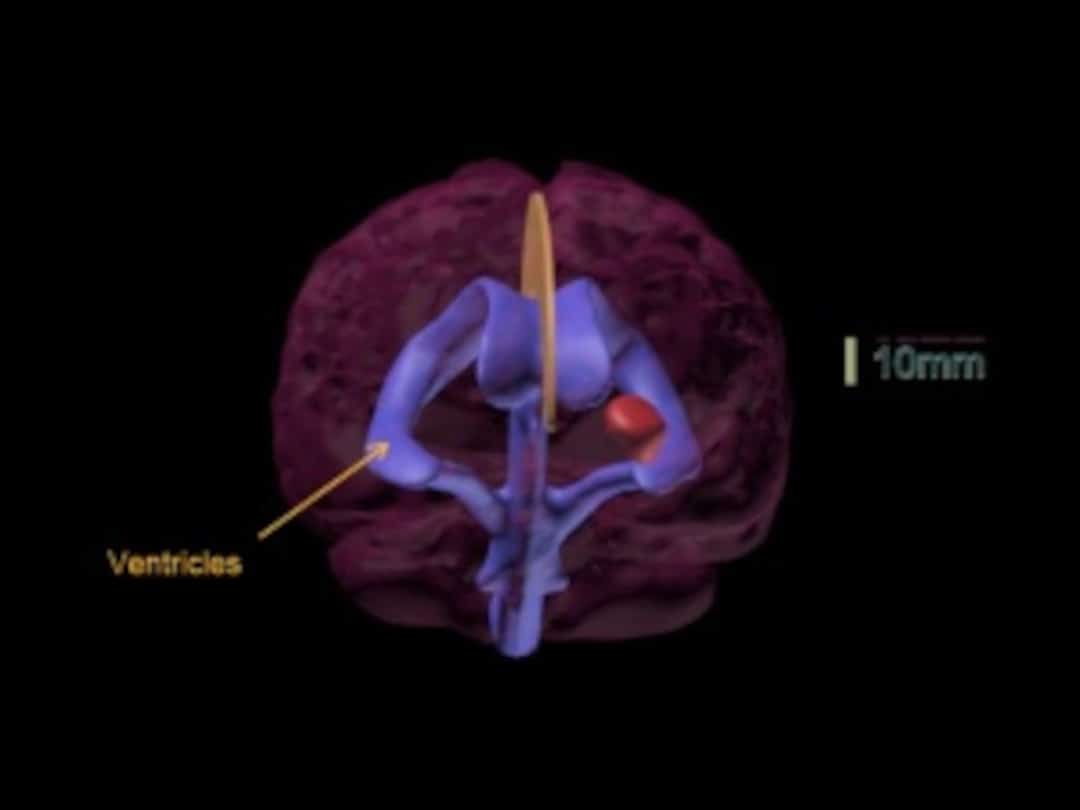

- Front View
Ultrasound Scans:
-

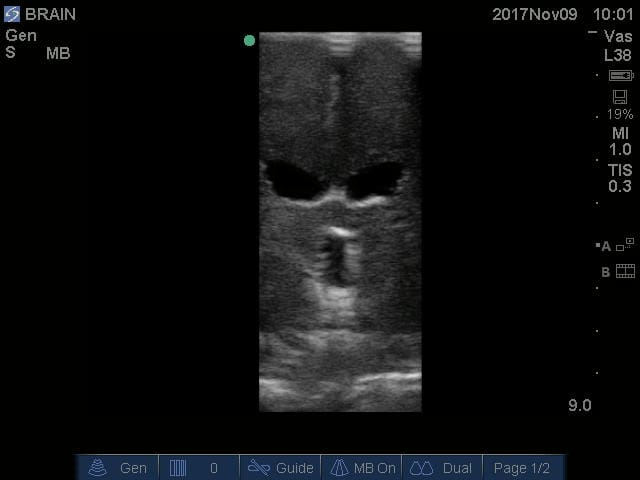

- Ventricles Coronal View
-

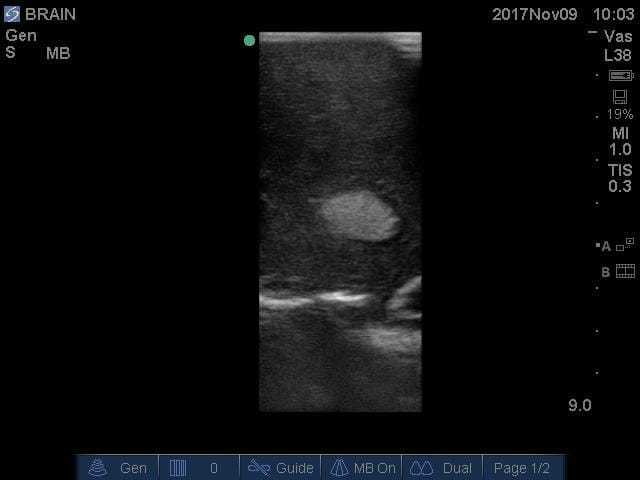

- Brain Sagittal View

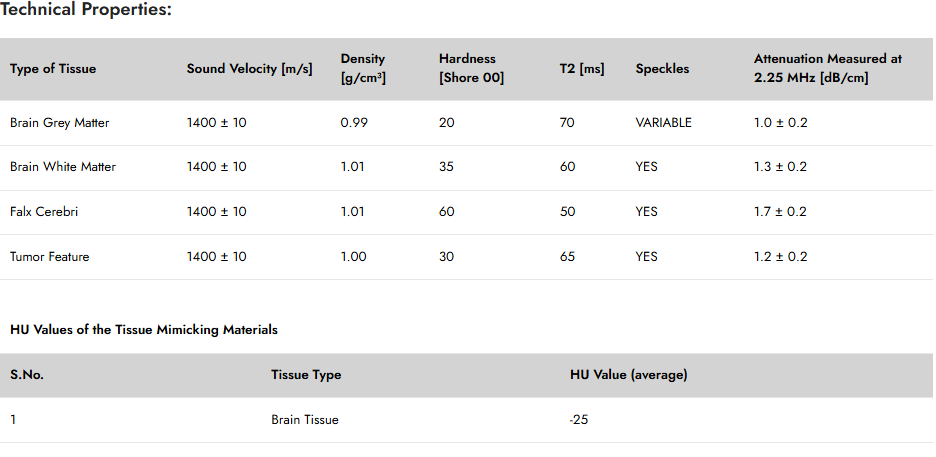

| Standard Adult Brain for multipurpose | ||||||
| Type of the tissues: | Sound velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation measured at 2.25 MHz [dB/cm] |
| Brain tissue | 1400 ± 10 | 0.99 | 20 | 70 | VARIABLE | 1.0 ± 0.2 |
| Falx cerebri | 1400 ± 10 | 1.01 | 60 | 50 | YES | 1.7 ± 0.2 |
| Tumor feature | 1400 ± 10 | 1.00 | 30 | 65 | YES | 1.2 ± 0.2 |
| THERMAL PROPERTIES OF OUR BONE MIMICKING MATERIAL | |||||
| Thermal Conductivity: | Volumetric Specific Heat Capacity: | Thermal Diffusivity: | Thermal Resistivity: | Specific Heat: | Speed of Sound: |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
