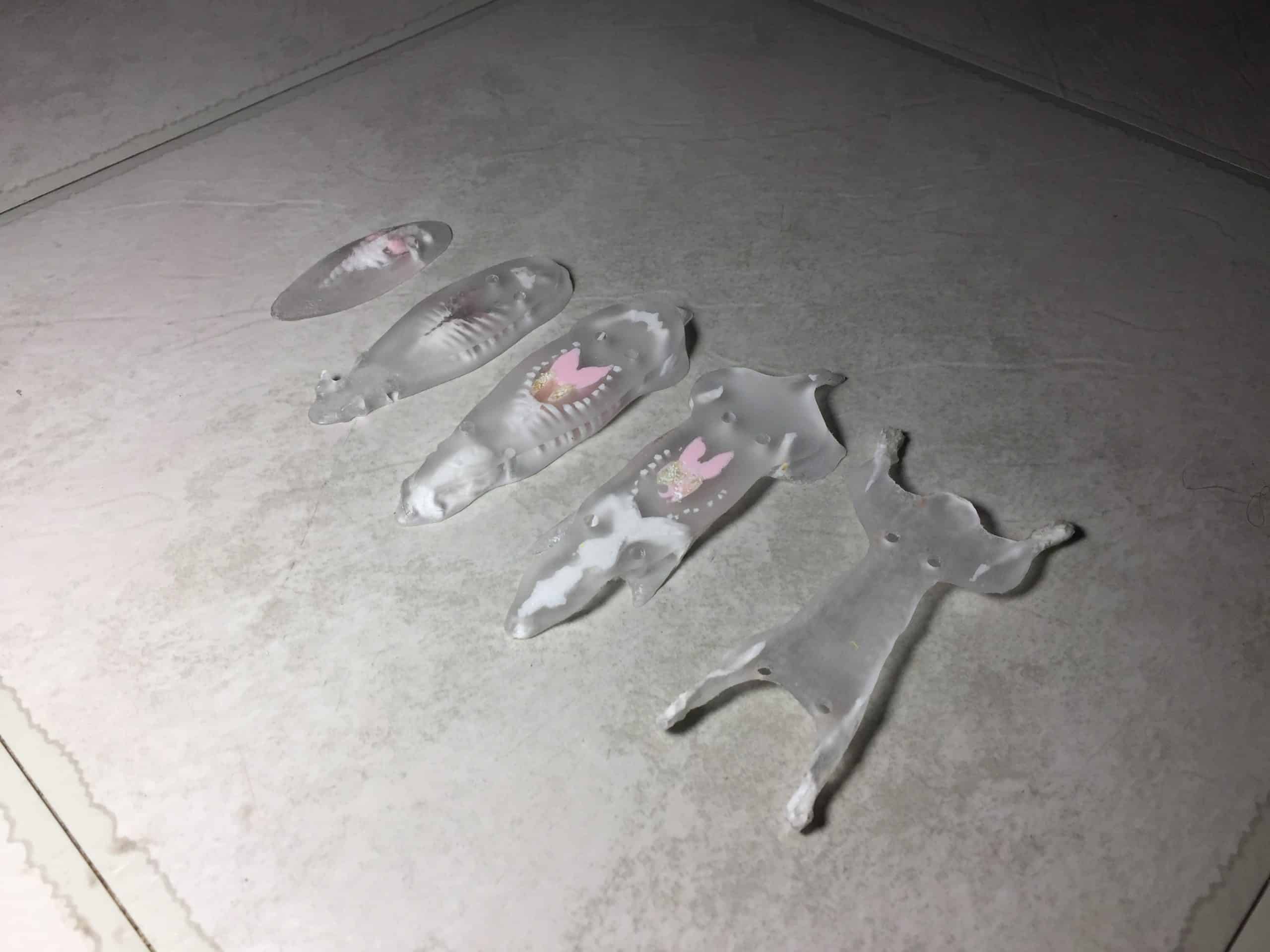

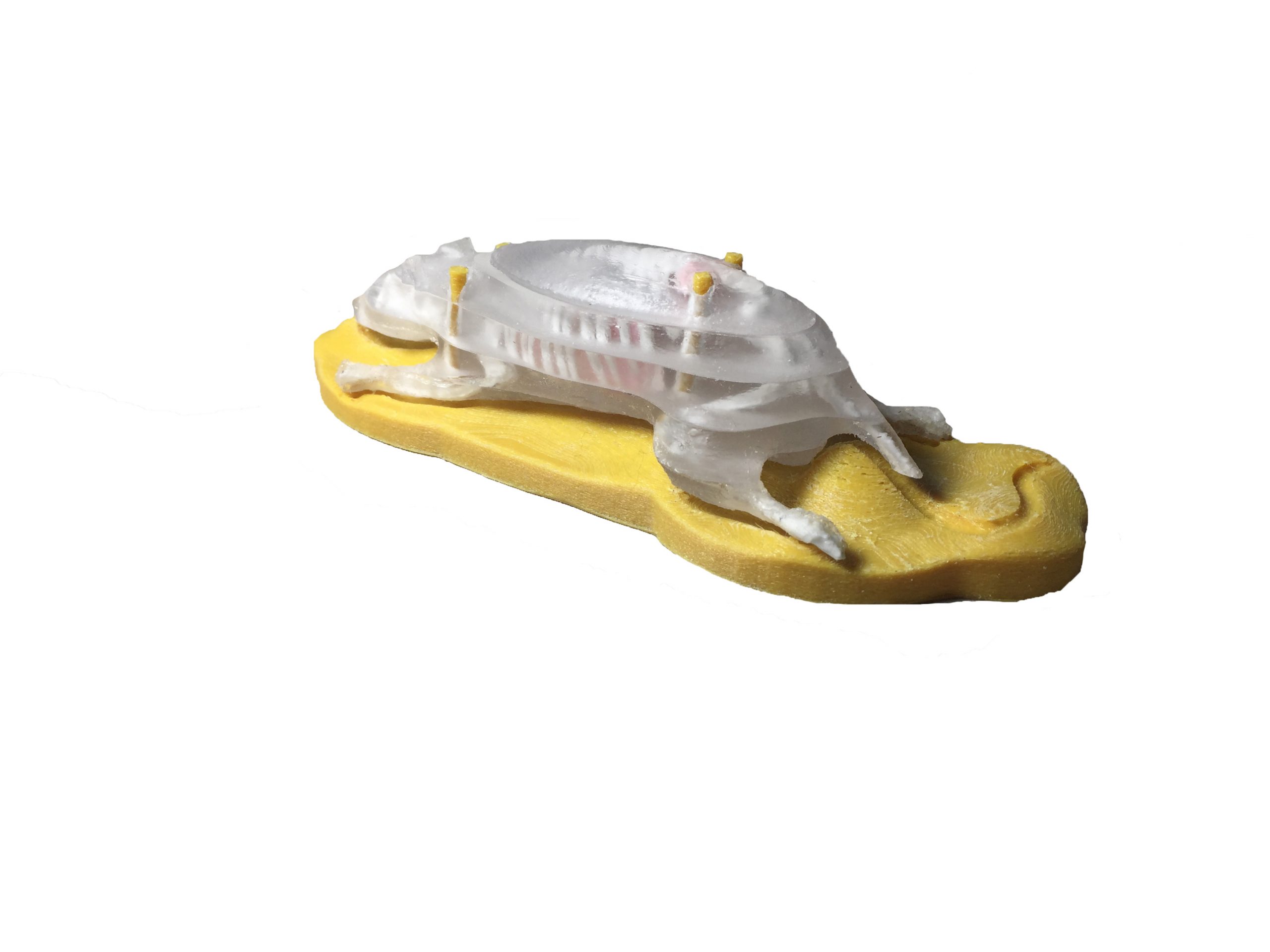

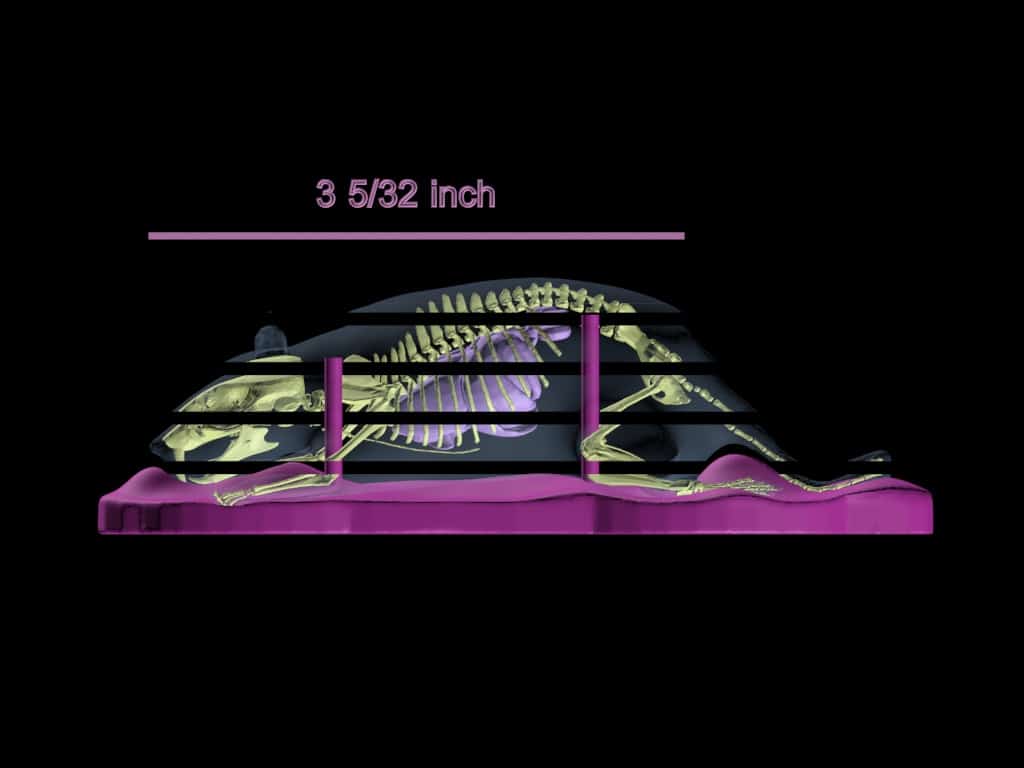

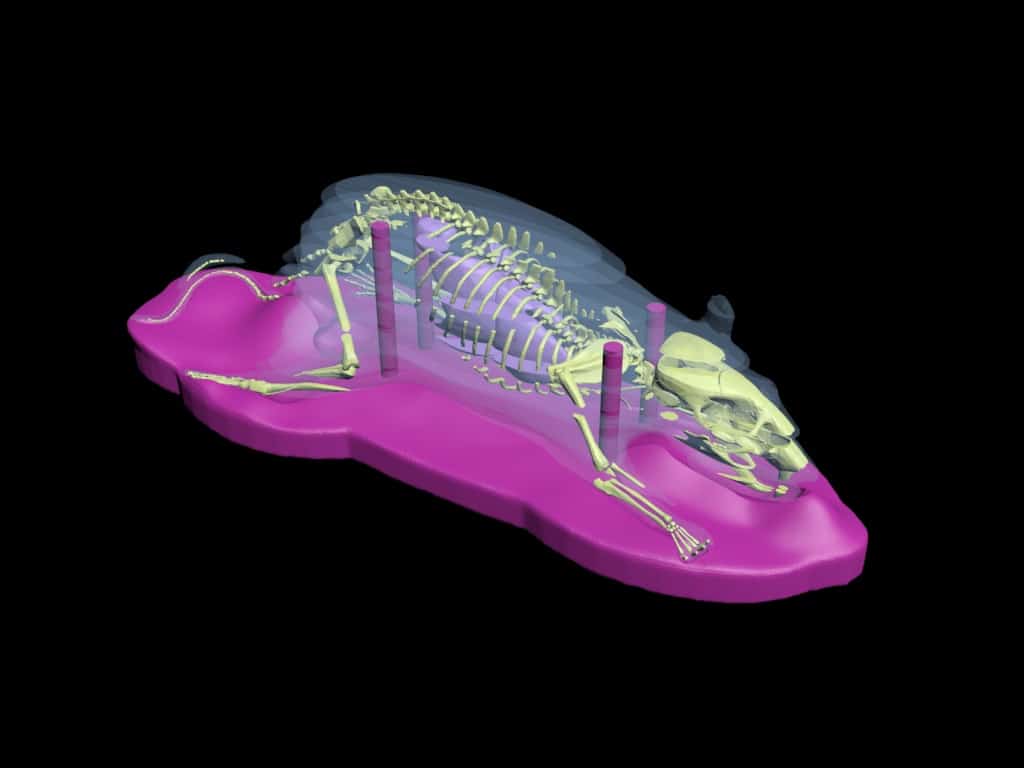

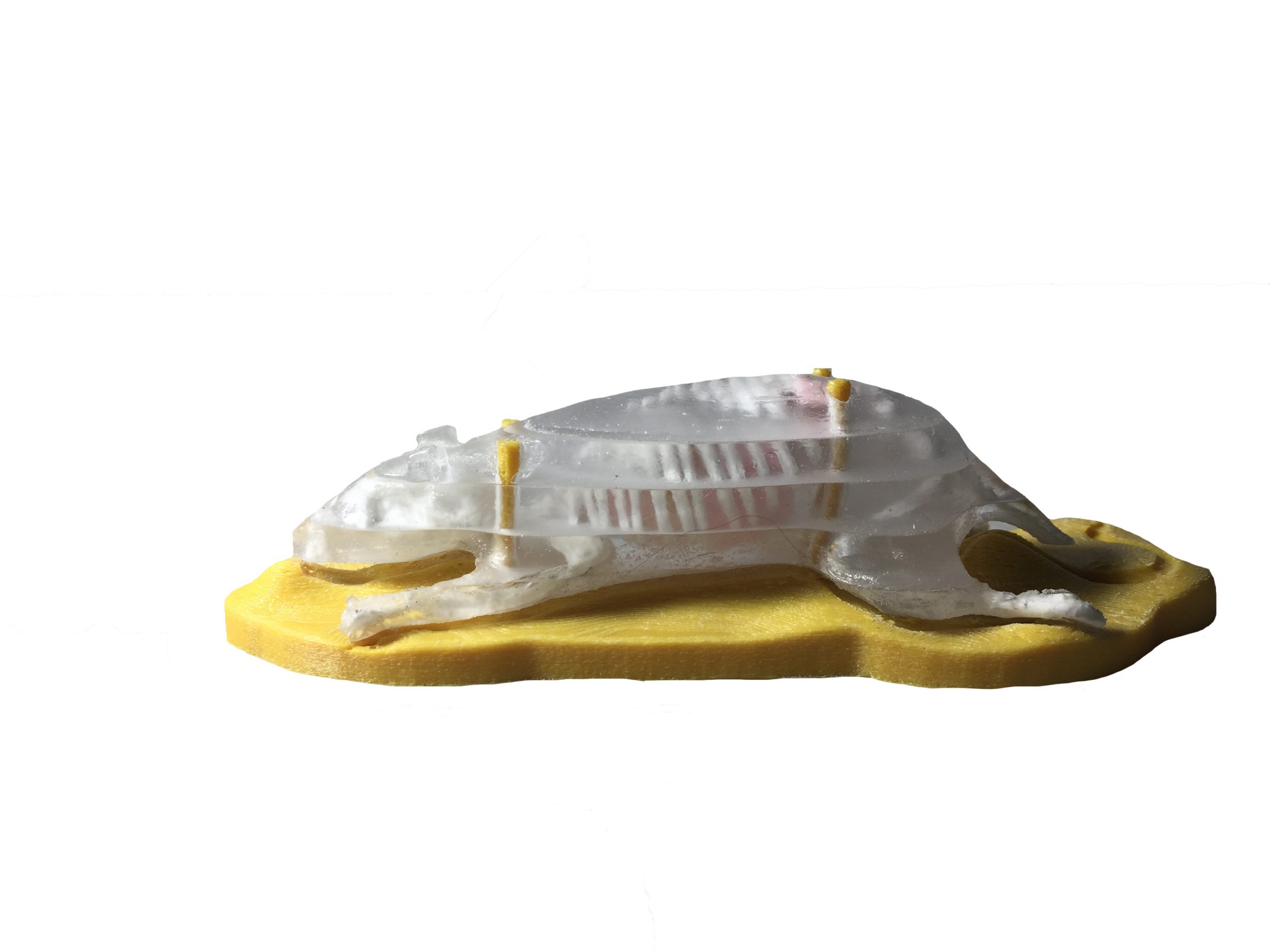

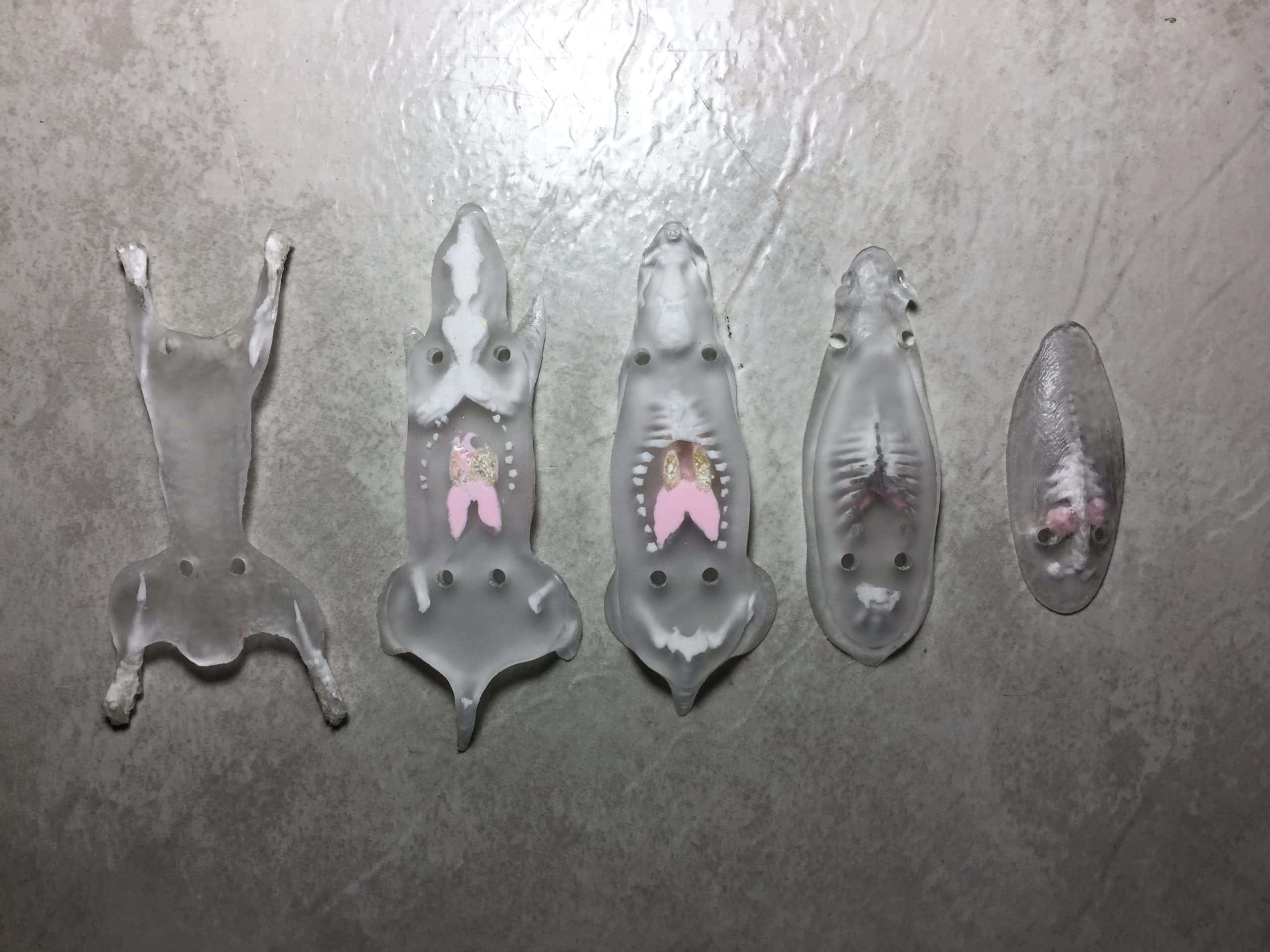

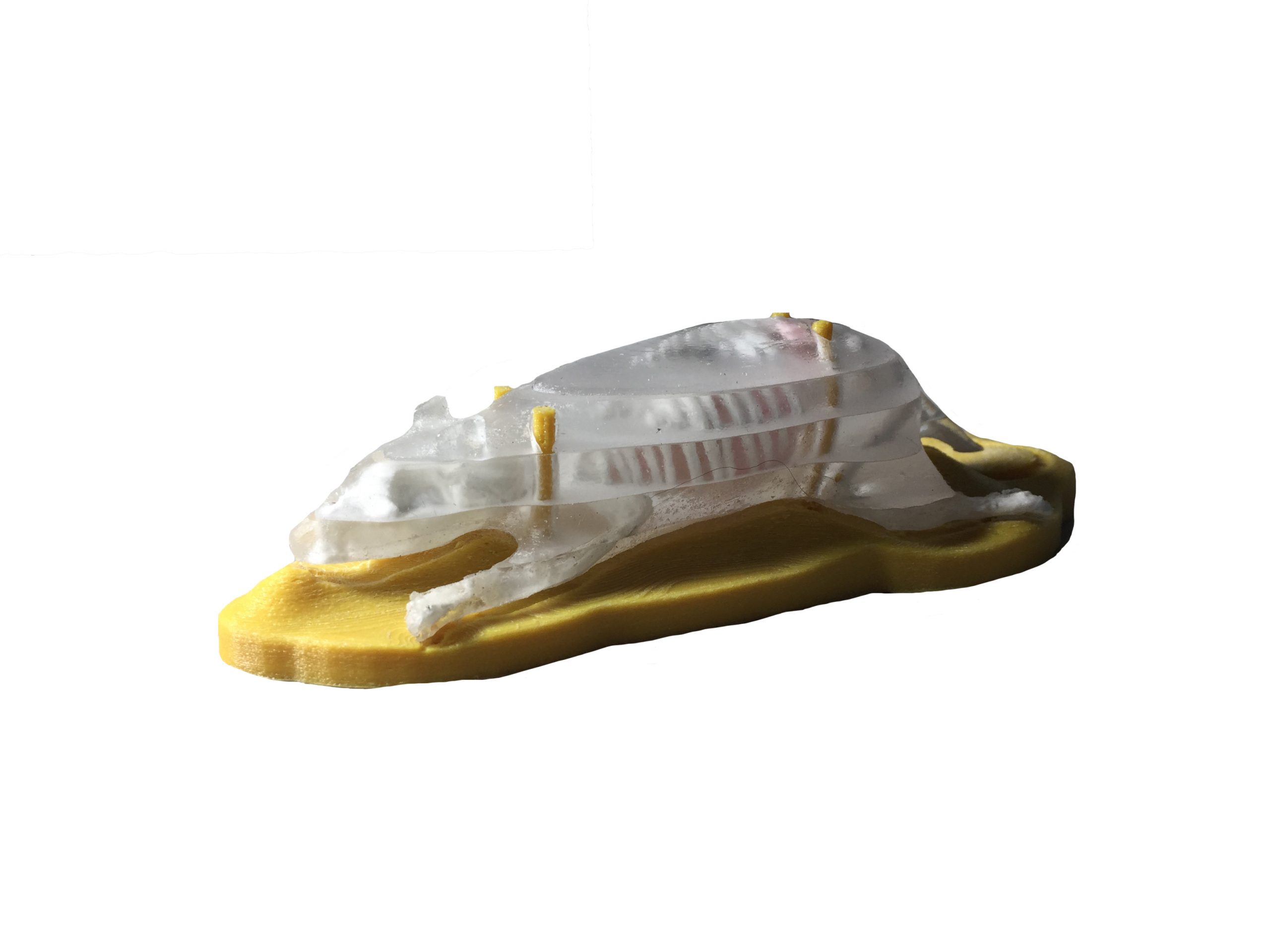

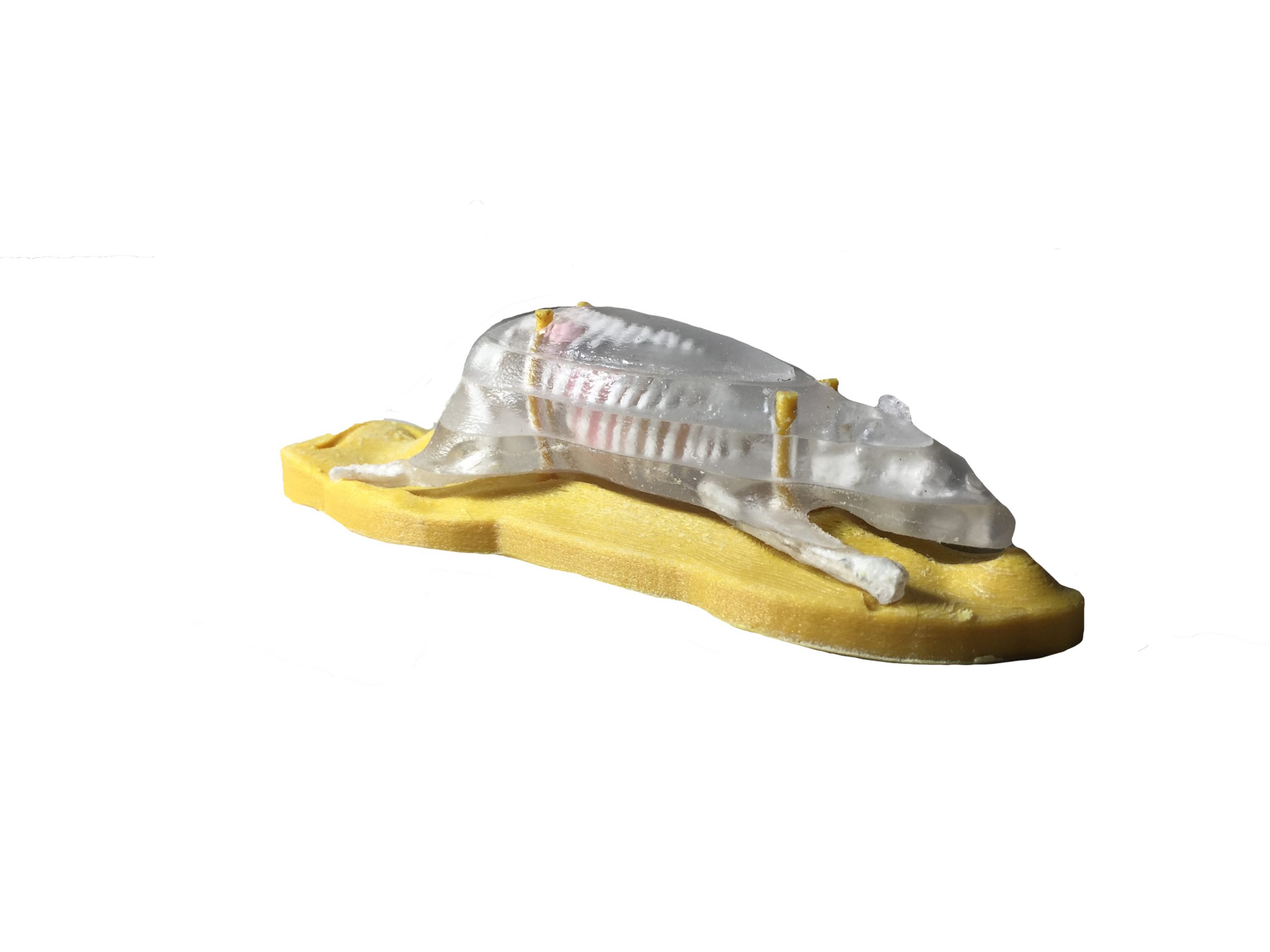

Sectional Mouse Phantom for X-Ray/CT is designed based on the average anatomy of a mouse, and it is sliced into four 5 mm thick segments. The phantom can be used for medical imaging research and development, testing, and calibration-related work. It can be customized in terms of size, shape, internal features, and properties to fit the needs of a wide variety of biomedical research projects.
- Full Skeleton
- Heart
- Lungs
- Diaphragm
- Liver
- Kidneys
- Pancreas
- Spleen

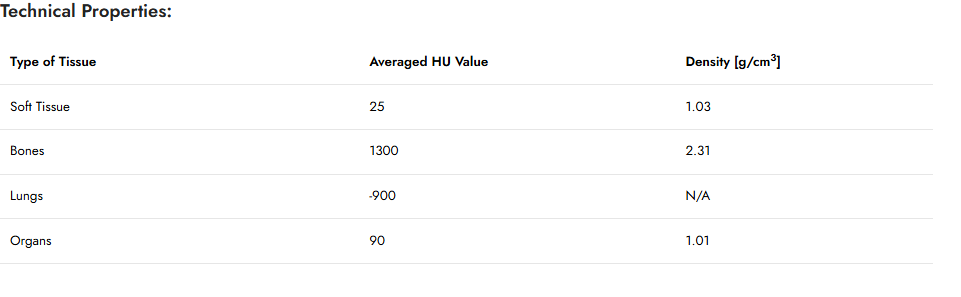

Technical Properties:
| Type of Tissue | Averaged HU Value | Density [g/cm3] |
| Soft Tissue | 25 | 1.03 |
| Bones | 1300 | 2.31 |
| Lungs | -900 | N/A |
| Organs | 90 | 1.01 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
- Sectional Mouse Phantom
- User manual/assembly instructions
- 2-year warranty and unlimited customer service
- Hard carry case
Phantom:

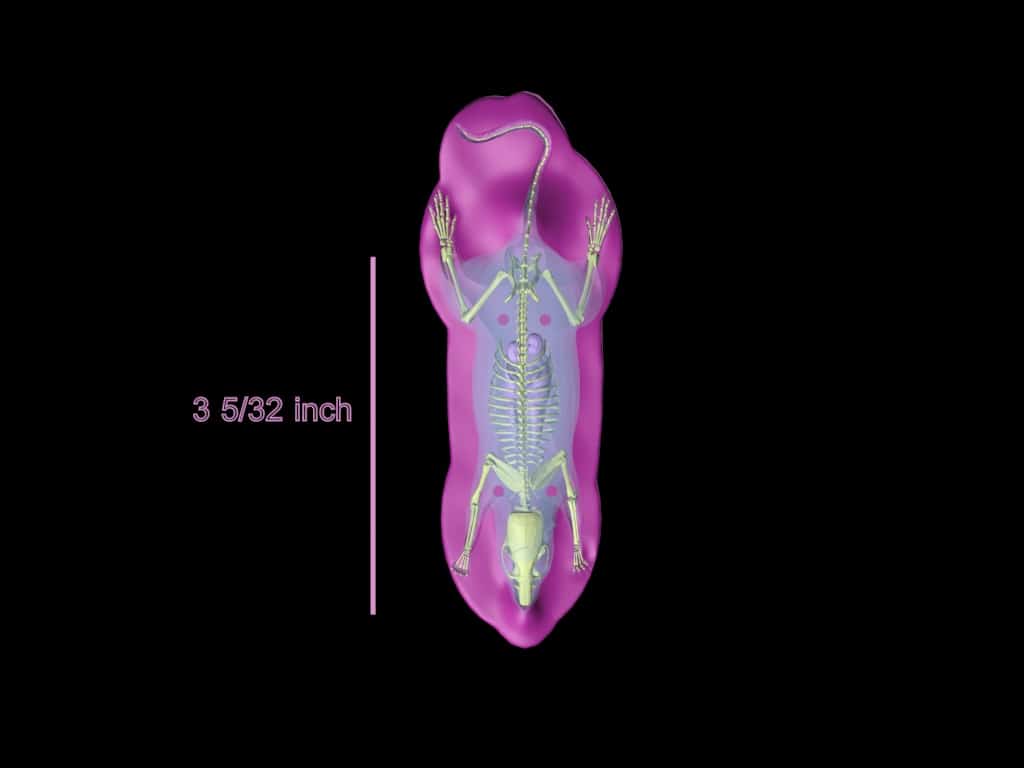

- Size: 2 x 4 x 1 Inches,
- Weight: 0.5 Lbs (approx.).
Shipment:
- Size: 10 x 8 x 6 Inches,
- Weight: 3 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
