HomeX-Ray CT, MRI Rat Phantom (Anatomical) for X-Ray CT, MRI
Click to enlarge

Rat Phantom (Anatomical) for X-Ray CT, MRI

Rat Phantom (Anatomical) is based on the average anatomy of a rat/mouse and is suitable for both X-Ray/CT and MR imaging methods, and it can be customized to excel in a selected imaging modality. It is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices.

PLEASE NOTE: WE CAN CUSTOMIZE THIS PRODUCT BASED ON YOUR REQUIREMENTS
Add to quote
This product is already in your quote request list.
Browse the list
SKU: RT-A01 Categories: All Products, Veterinary, X-Ray CT, MRI Tags: x-ray rat phantom, mri rat phantom, rat phantom
  • Description
Description

Rat Phantom (Anatomical) is designed based on an average anatomy of a rat/mouse and it is suitable for X-Ray/CT and MRI imaging methods. It can be customized to excel in a selected imaging modality which makes it is a powerful tool that can be used for testing and calibration-related work of various medical imaging devices.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The phantom can be customized in size and shape. The internal features can also be modified in terms of shape and properties to fit the needs of any particular bio-medical research project.

Anatomy
  • Complete Rat Skeleton
  • Heart
  • Lungs
  • Diaphragm
  • Liver
  • Kidneys
  • Pancreas
  • Spleen

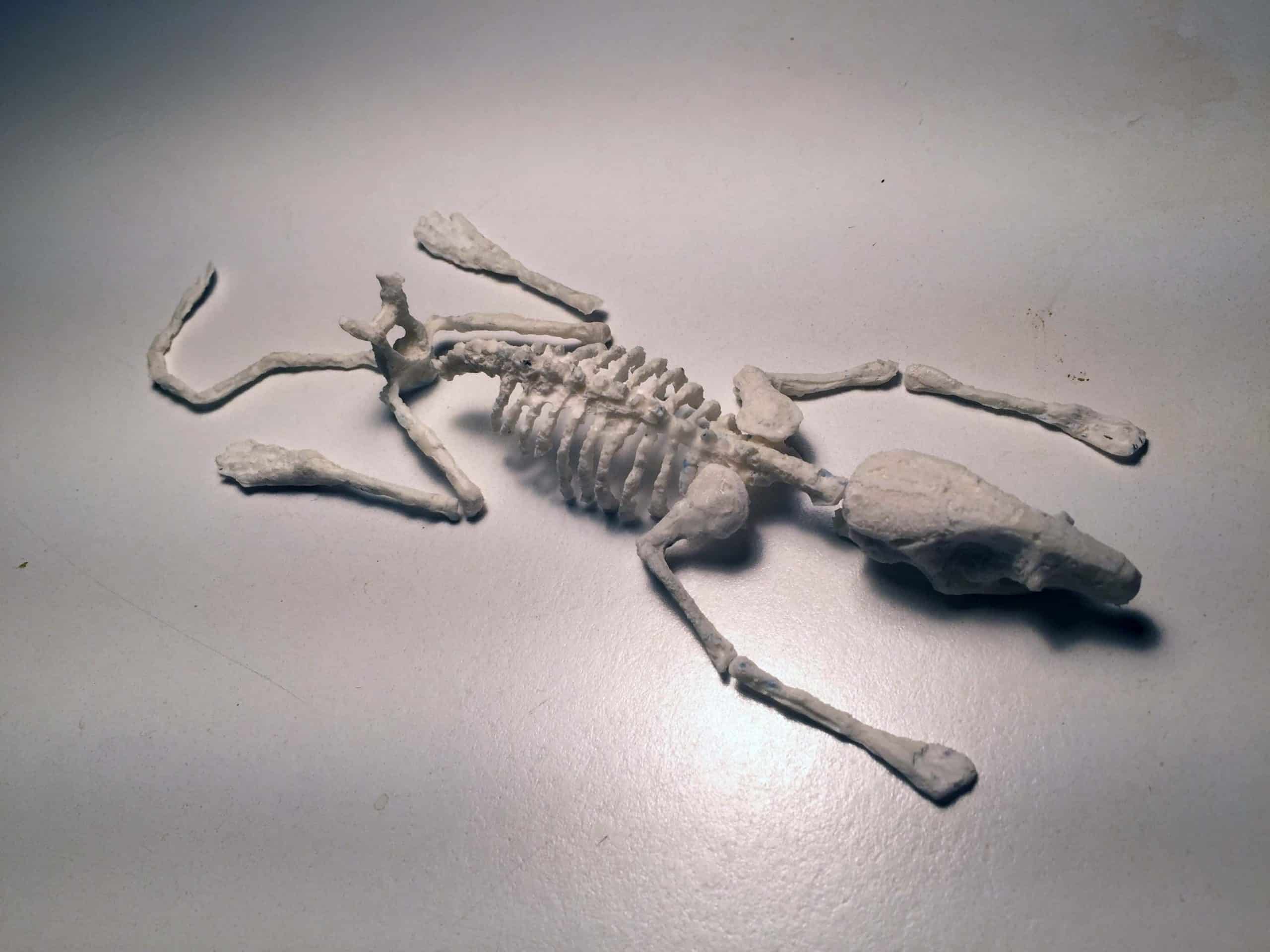

Internal Skeleton

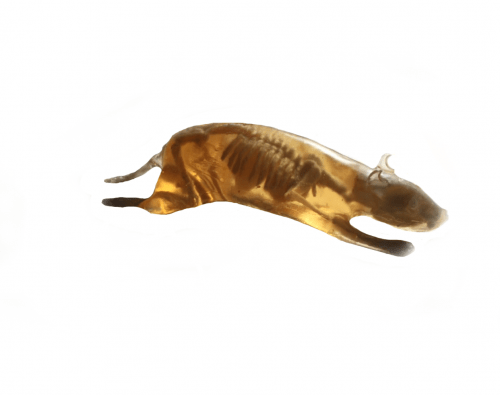

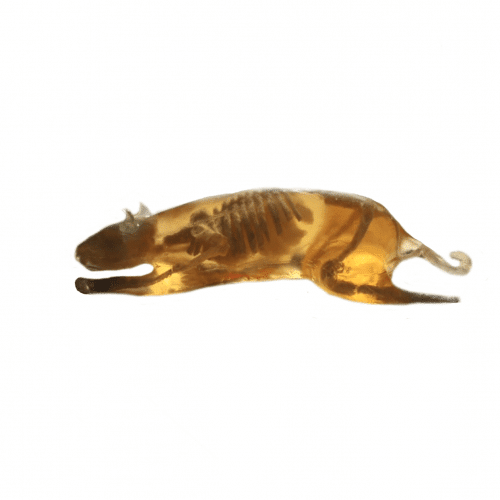

Translucent Amber Version

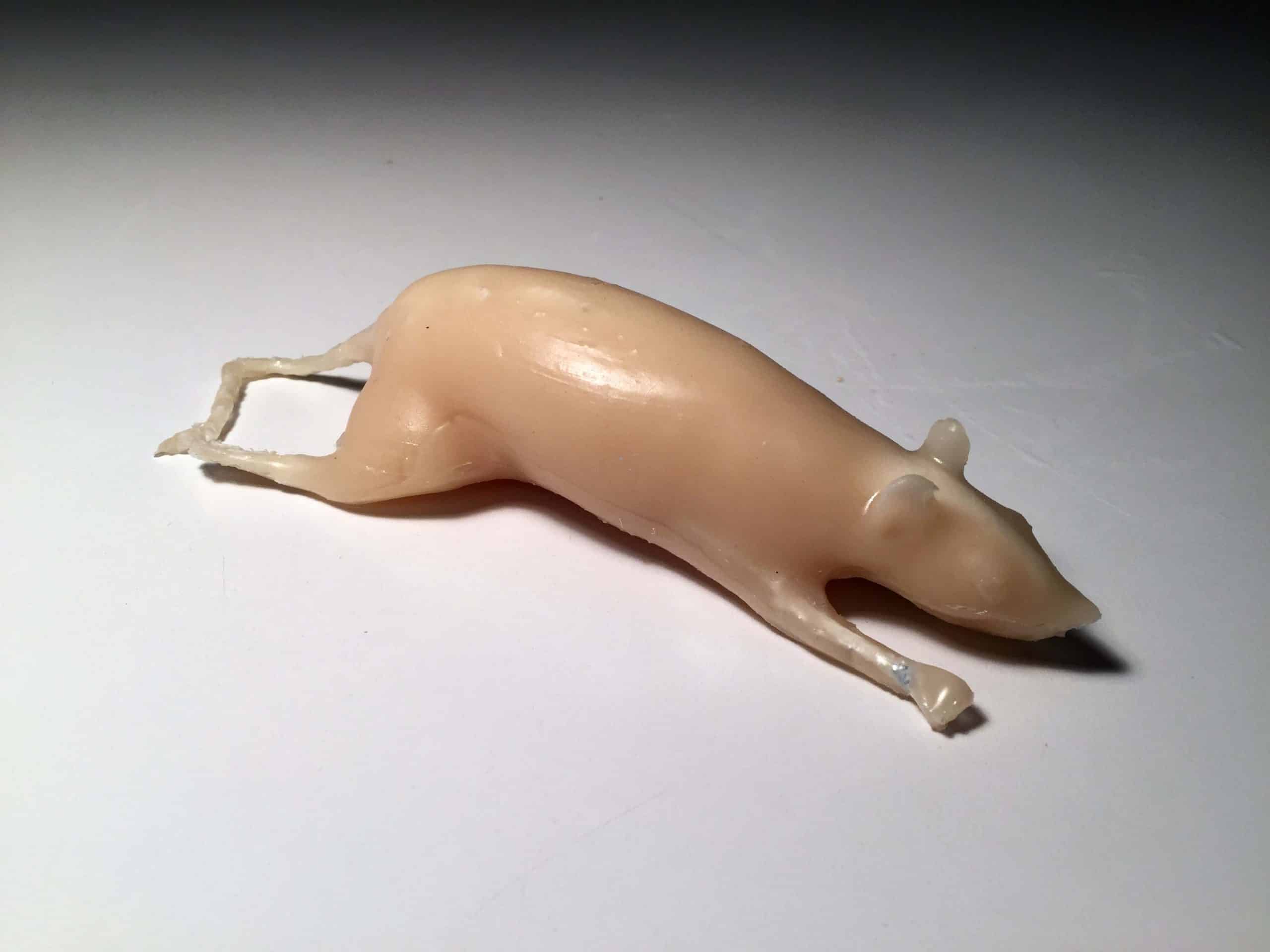

Opaque Version

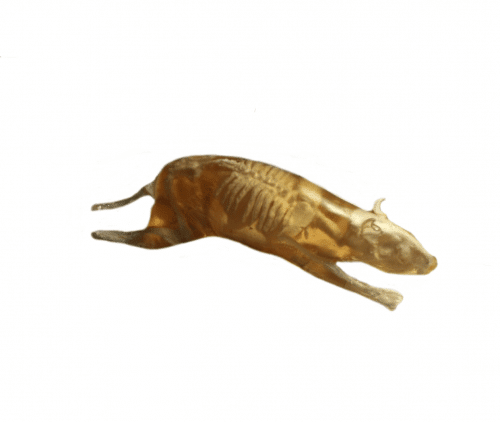

Translucent Amber Version

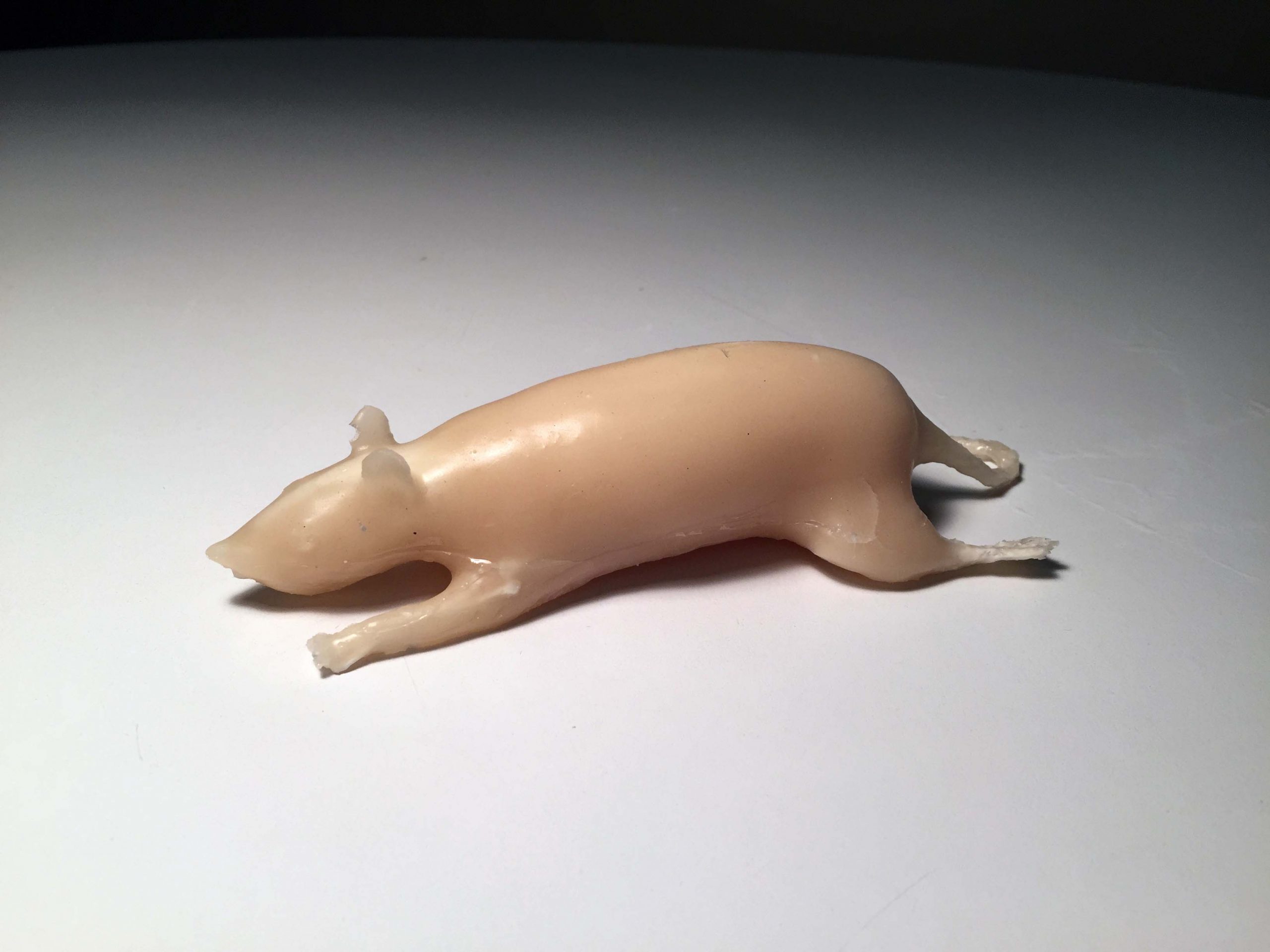

Opaque Version
Translucent Amber Version

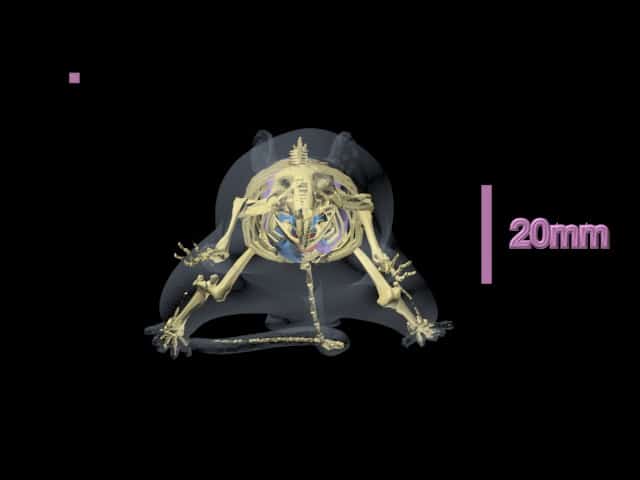

Front View

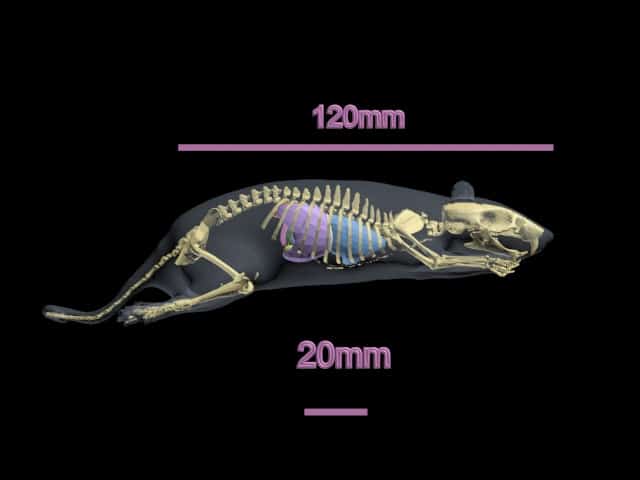

Lateral View

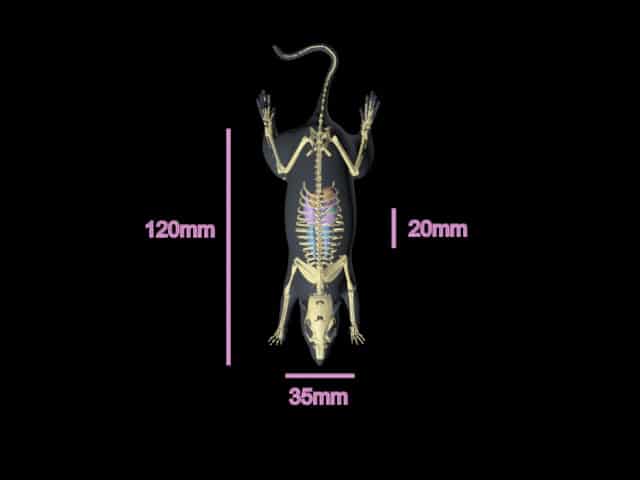

Top View

Scan Results:

Coming Soon…

In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.

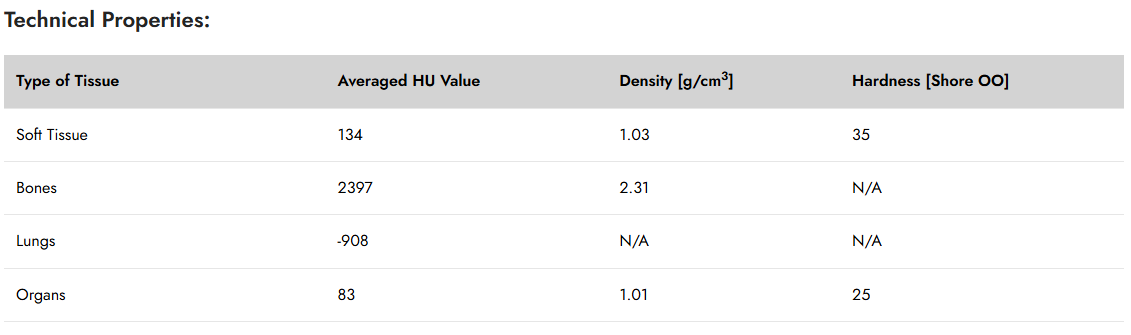

Technical Properties:

Type of TissueAveraged HU ValueDensity [g/cm3]Hardness [Shore OO]
Soft Tissue1341.0335
Bones23972.31N/A
Lungs-908N/AN/A
Organs831.0125

View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.

View Tables
Included in Order
  • Rat (Anatomical) Phantom

  • User Manual/Assembly Instructions

  • 2-Year Warranty & Unlimited Customer Service

  • Hard Carry Case

Size & Weight

Phantom:

  • Size: 7 x 3 x 2 Inches
  • Weight: 1 Lb (approx.).

Shipment:

  • Size: 10 x 8 x 6 Inches
  • Weight: 3 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ
  • Please refer to our FAQ page.
