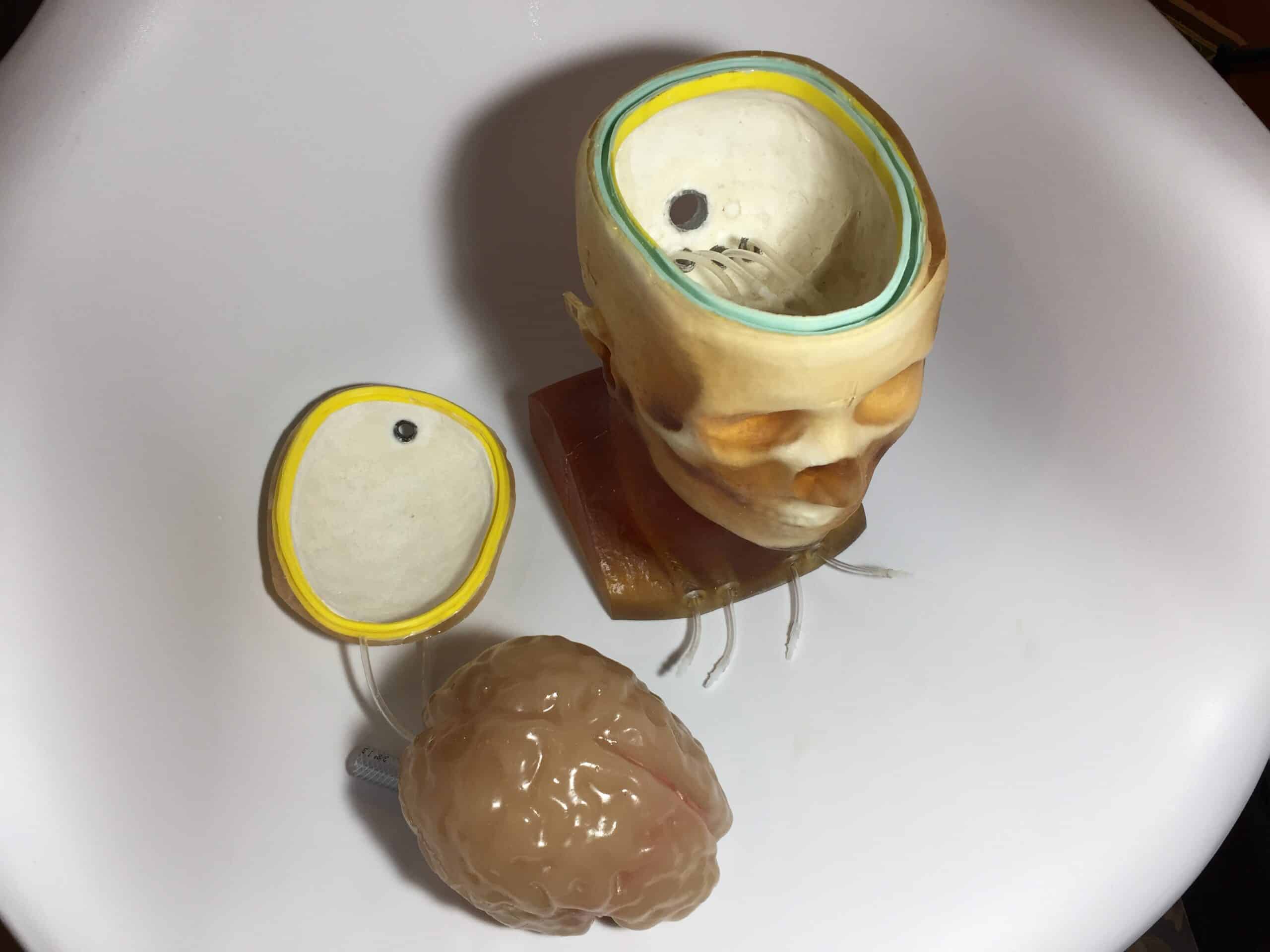

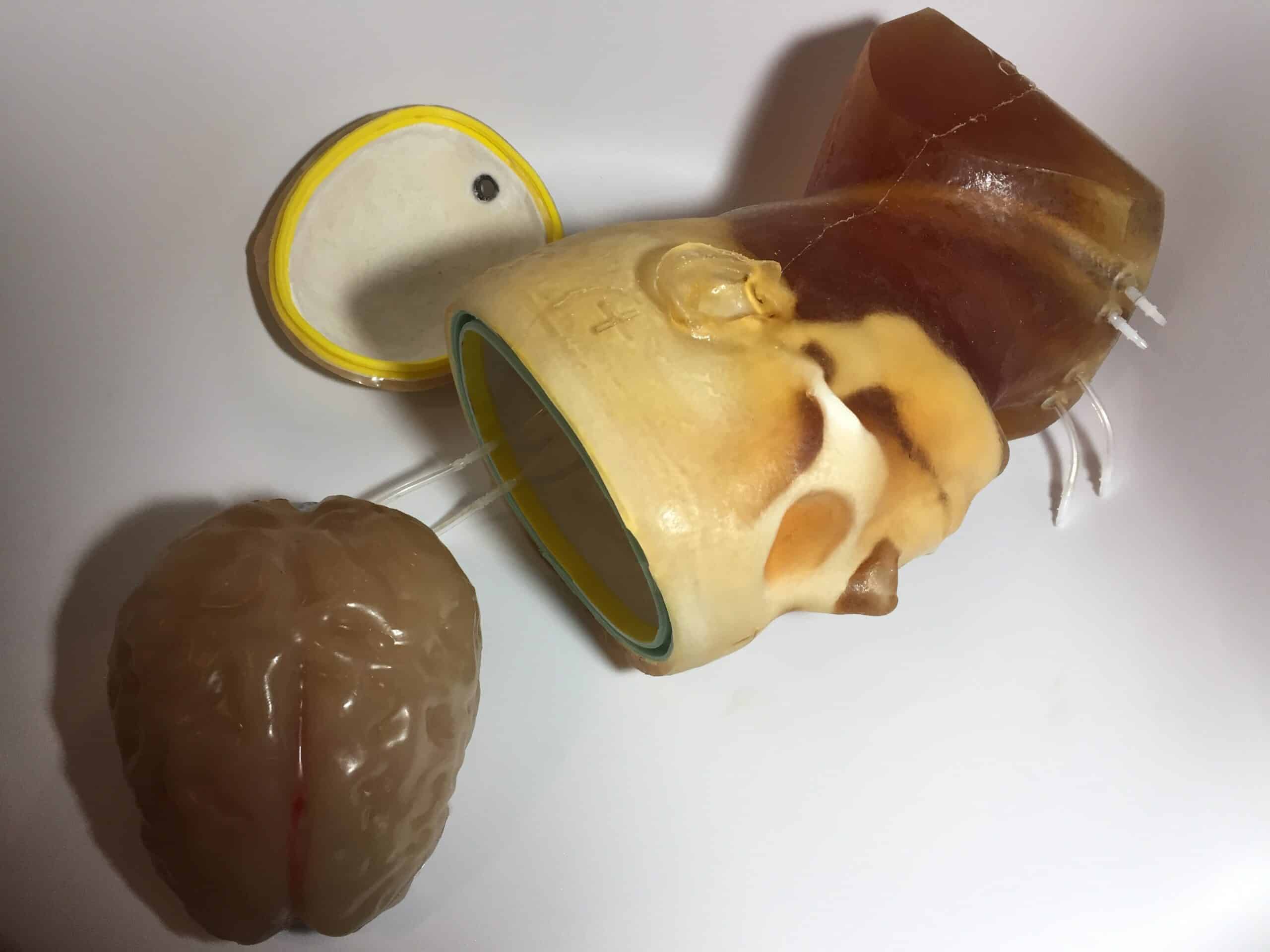

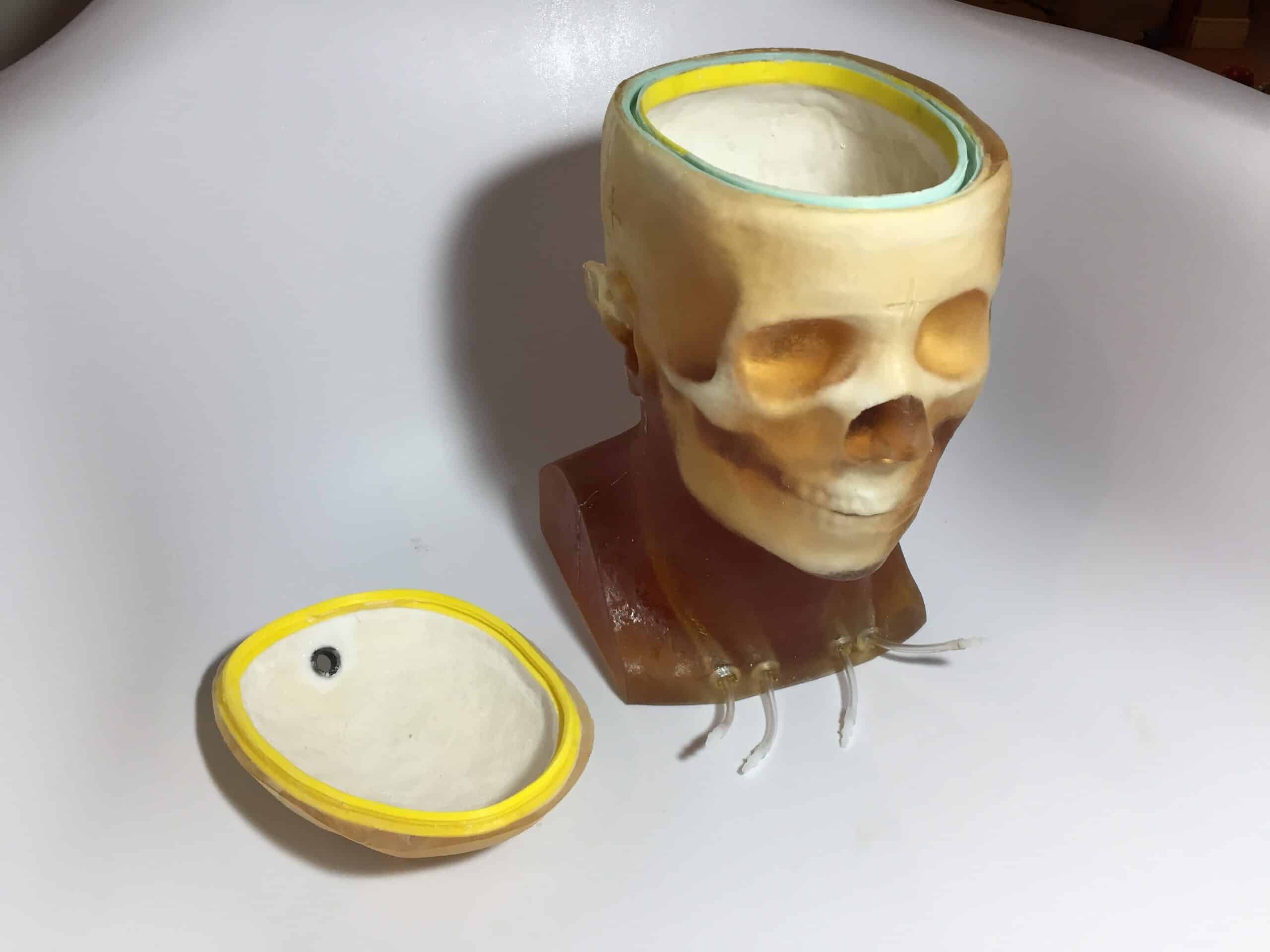

Skull Phantom — Openable and Removable Calvaria Alignment Markings Acoustically Correct Skin-Mimicking Material Brain (Optional)

Adult Head (Openable) Phantom User Manual/Assembly Instructions 2-Year Warranty & Unlimited Customer Service Hard Carry Case

Phantom: Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.). Shipment: Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.)

Soft tissue and organs: Composition of urethane-based soft resin Synthetic bones: Patented ceramic-reinforced epoxy-based composite material

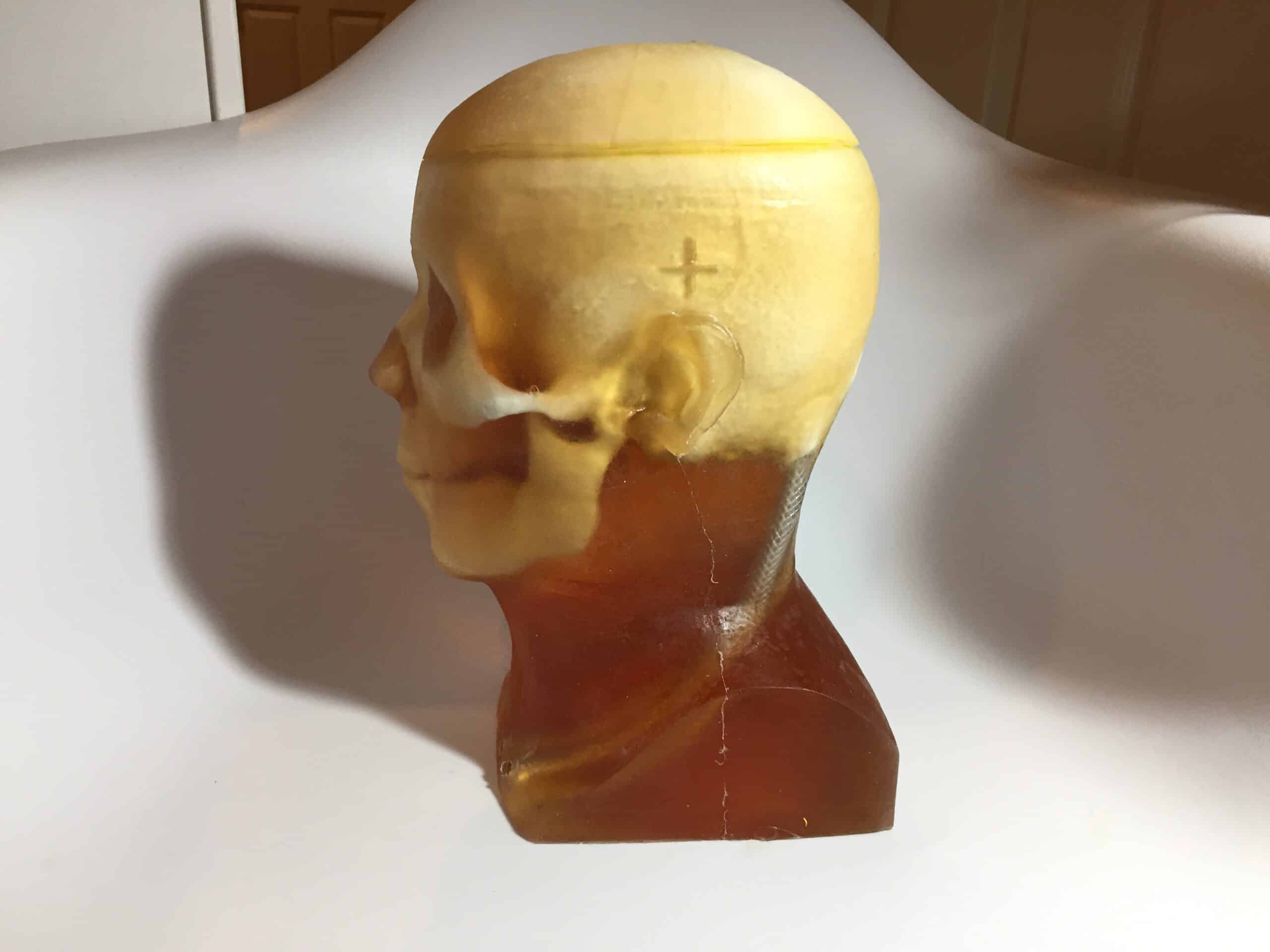

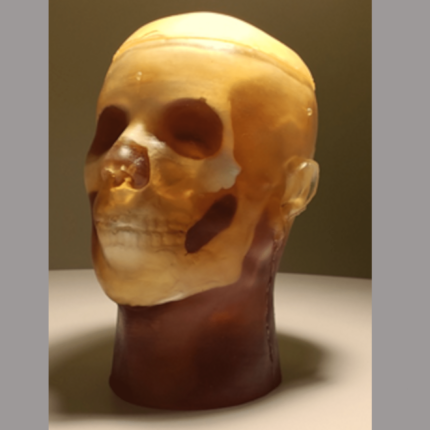

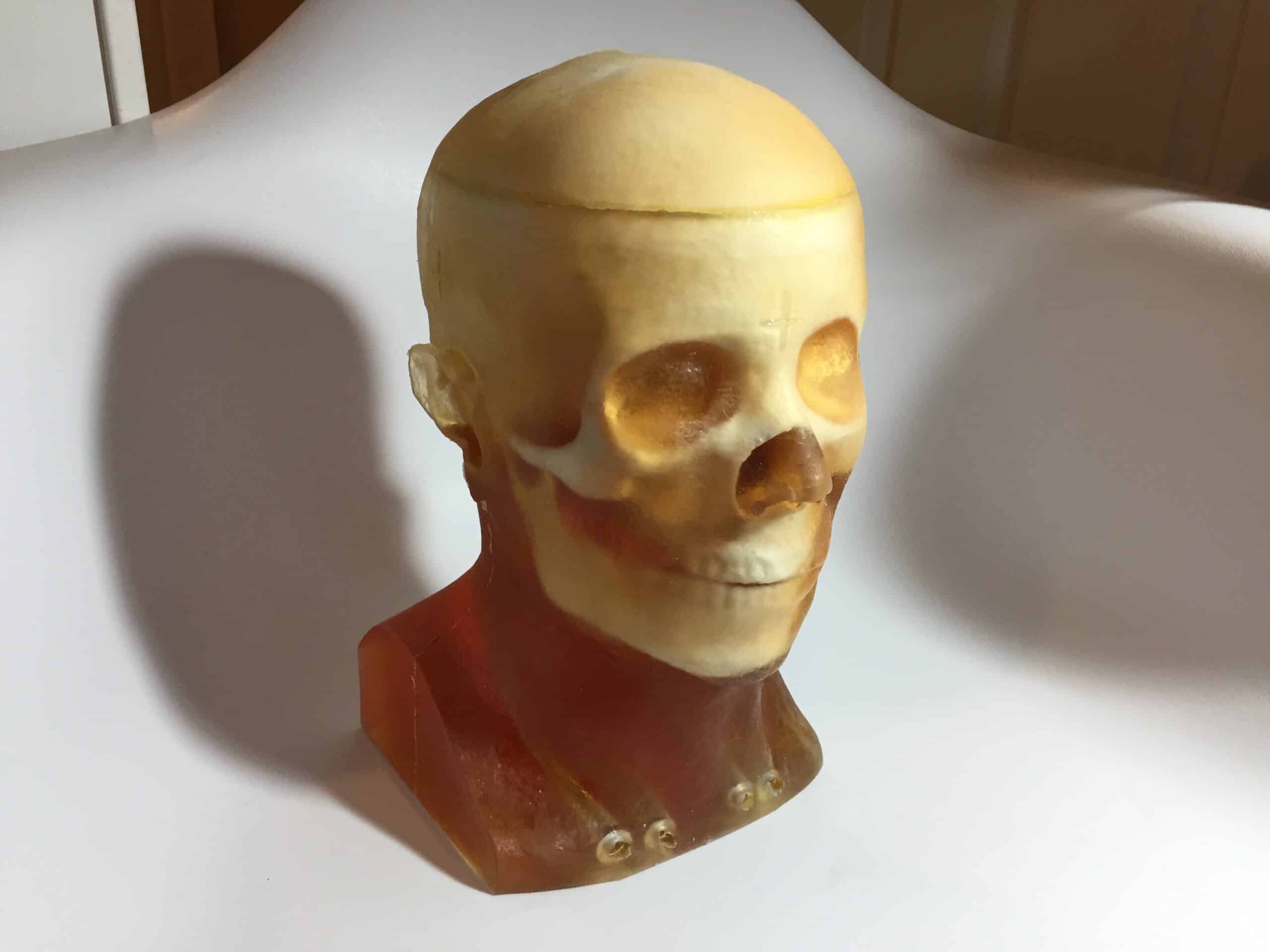

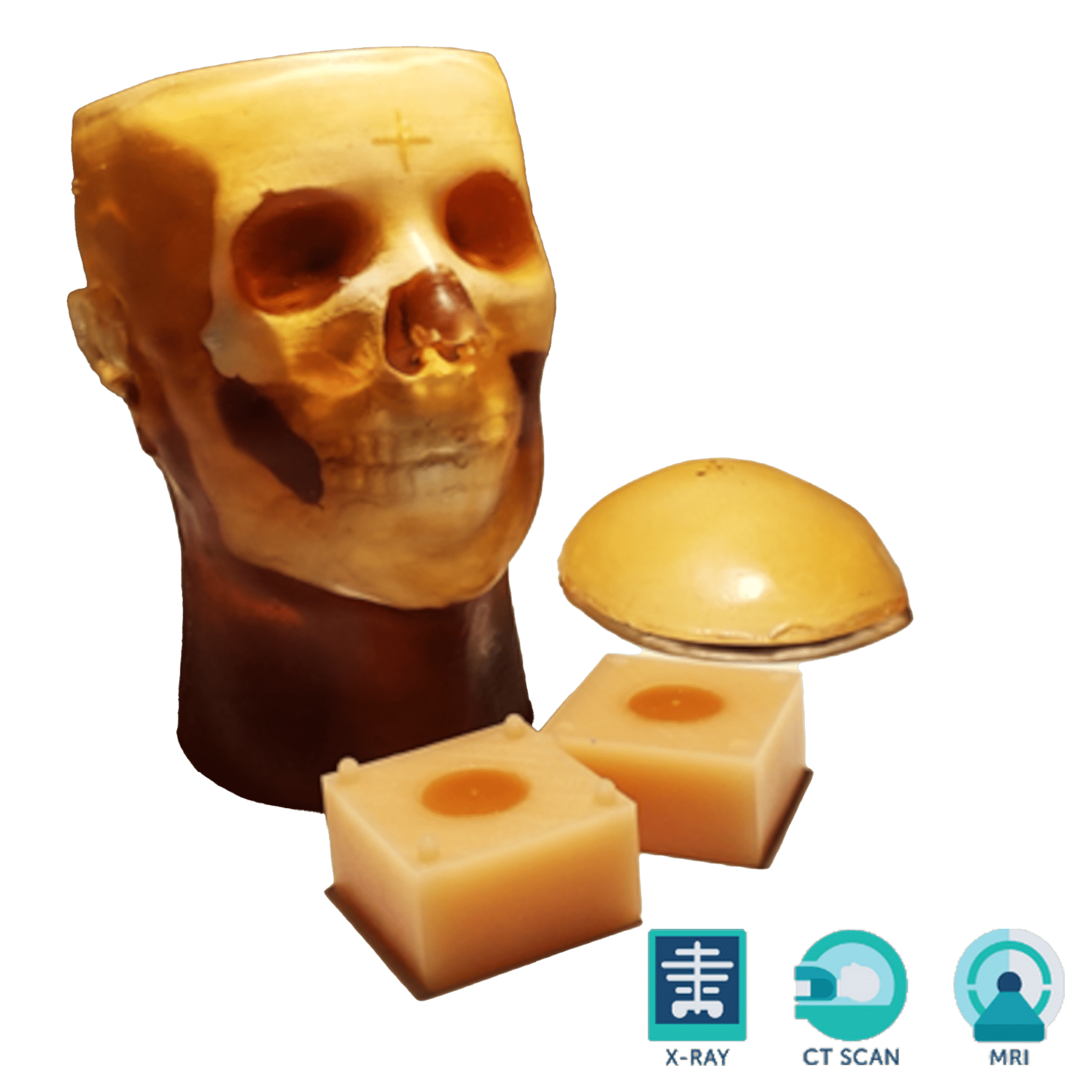

The Adult Head (Openable) phantom for Ultrasound, MRI, and X-Ray/CT was first fabricated based on the unique requirements of IIT Madras in the year 2017. Then later, we improved the accessibility and functionalities of this product with our technology and experience. Different brains can be inserted in and out to serve the purpose of many different research projects. The phantom is suitable for medical imaging applications (both static and dynamic), nuclear medicine, and other CT applications. It can also be customized to train medical students and practitioners. We hold the strength and technology to customize them to meet your needs. If you are a research student or a scientist working on a medical imaging project, This is your optimal choice.

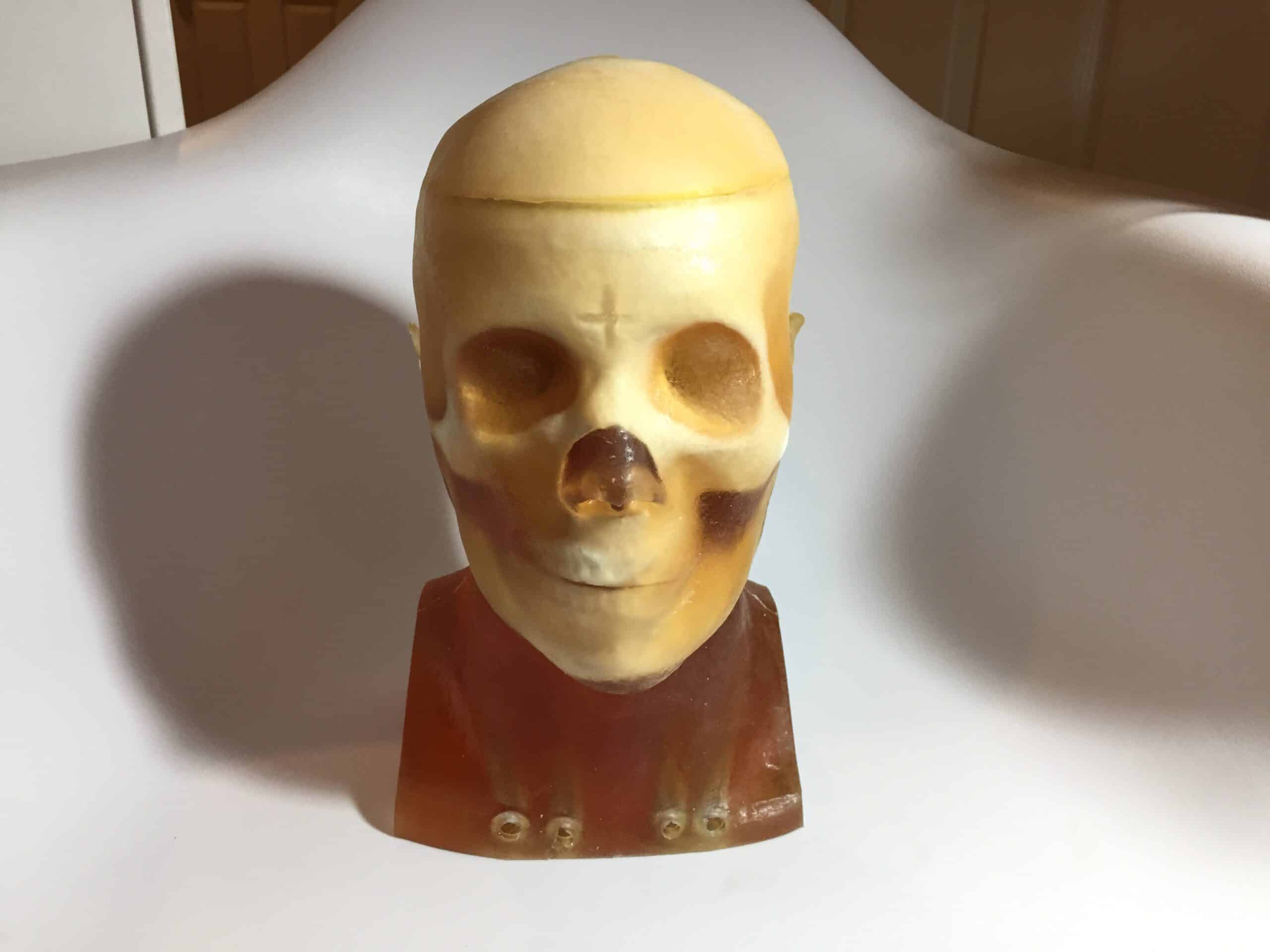

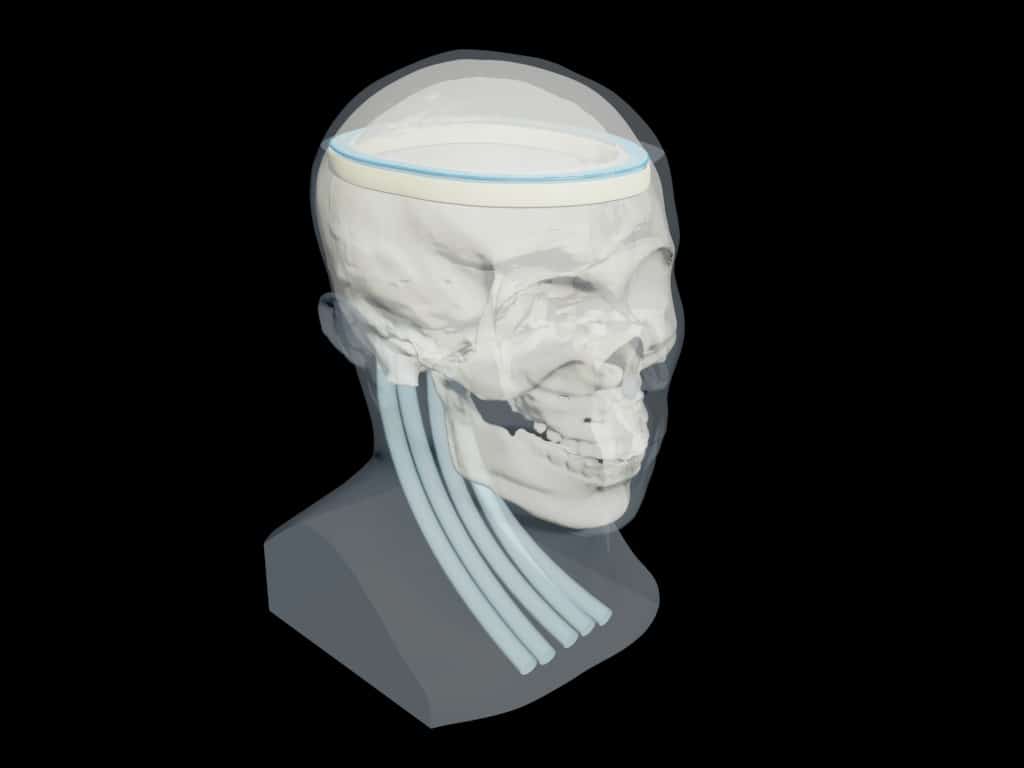

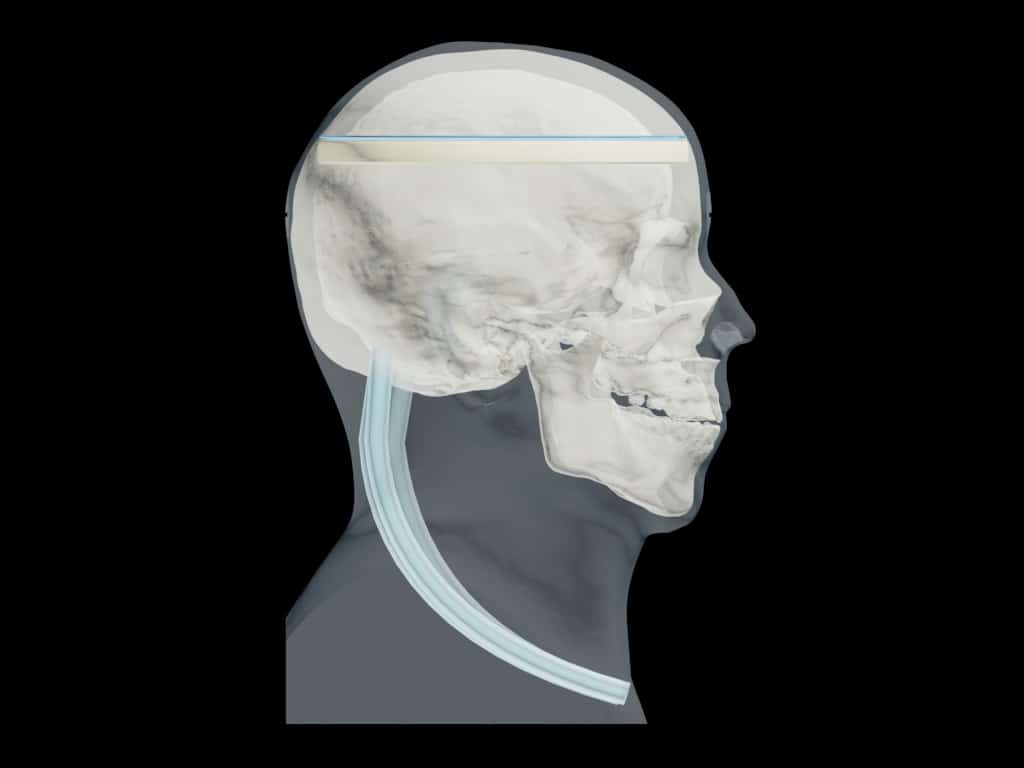

The design of this phantom is based on an average human male head, and it is made out of several realistic tissues mimicking materials that are suitable for Ultrasound, MRI, and X-Ray/CT applications. The skull bone has a realistic three-layered structure with an inner diploe layer.

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

Note: the brain is not included in this product. It can be added upon request.

Anatomy

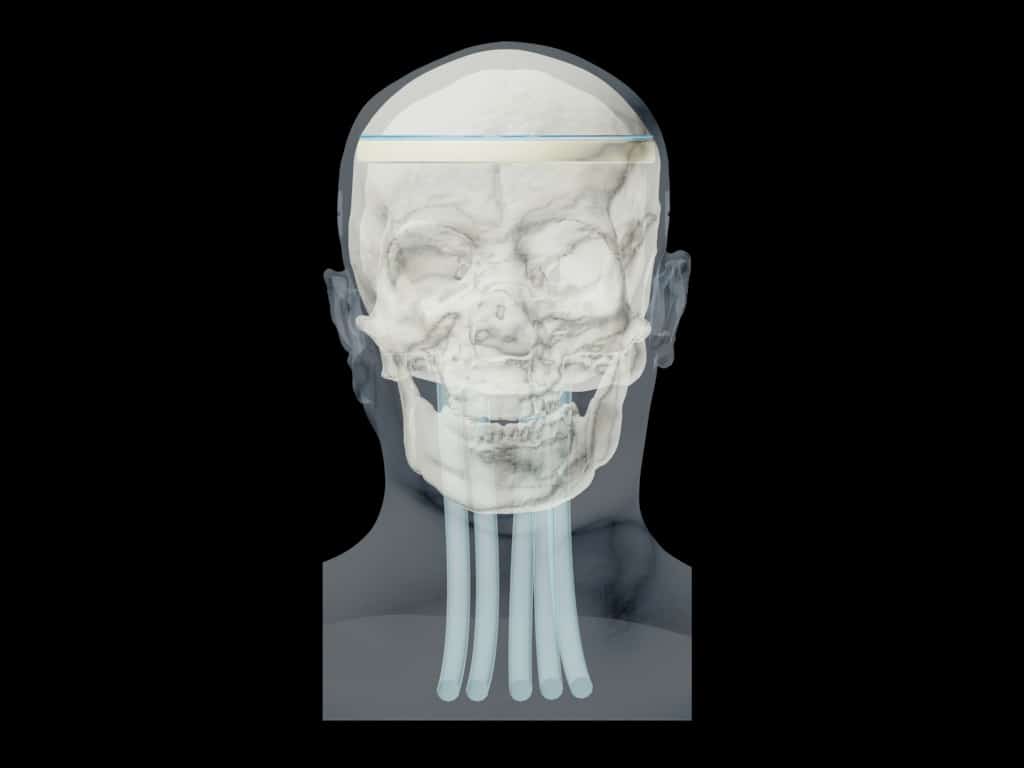

Skull Phantom

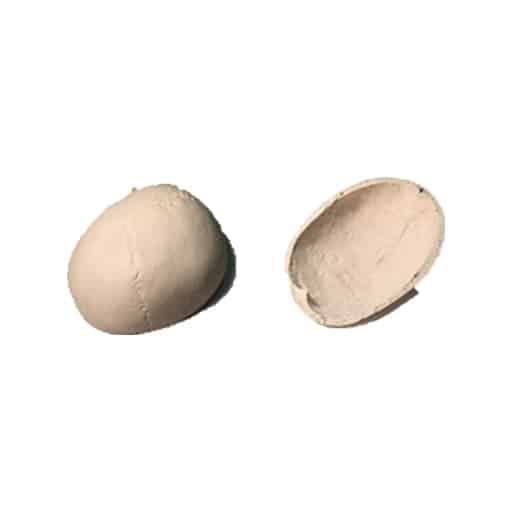

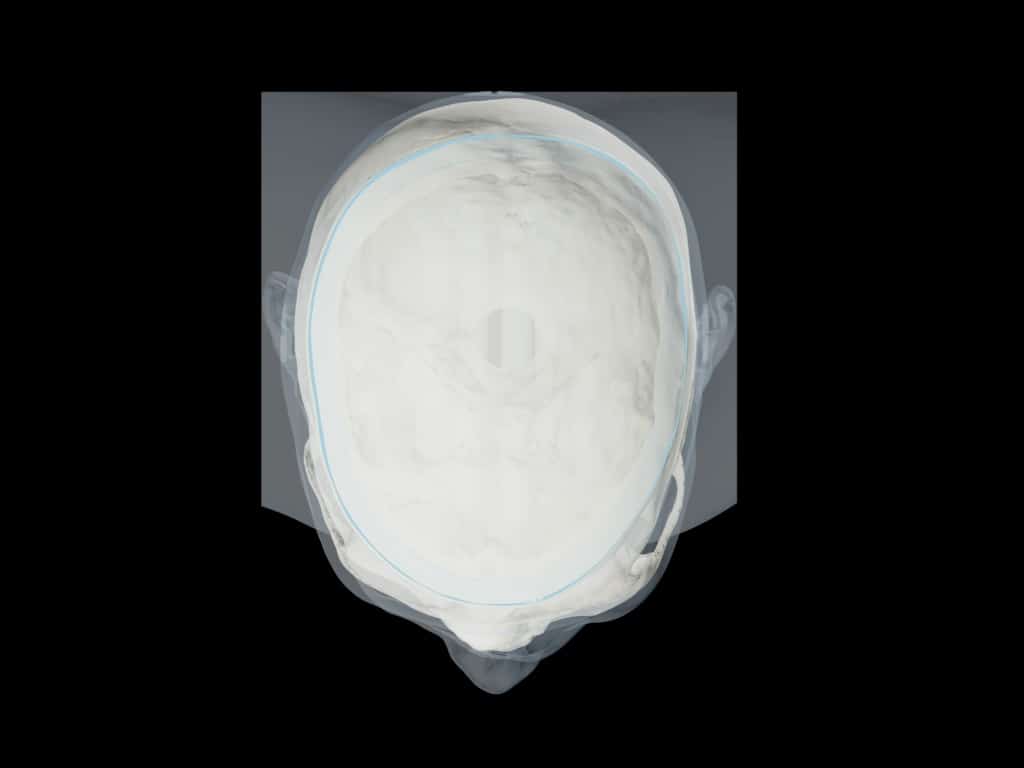

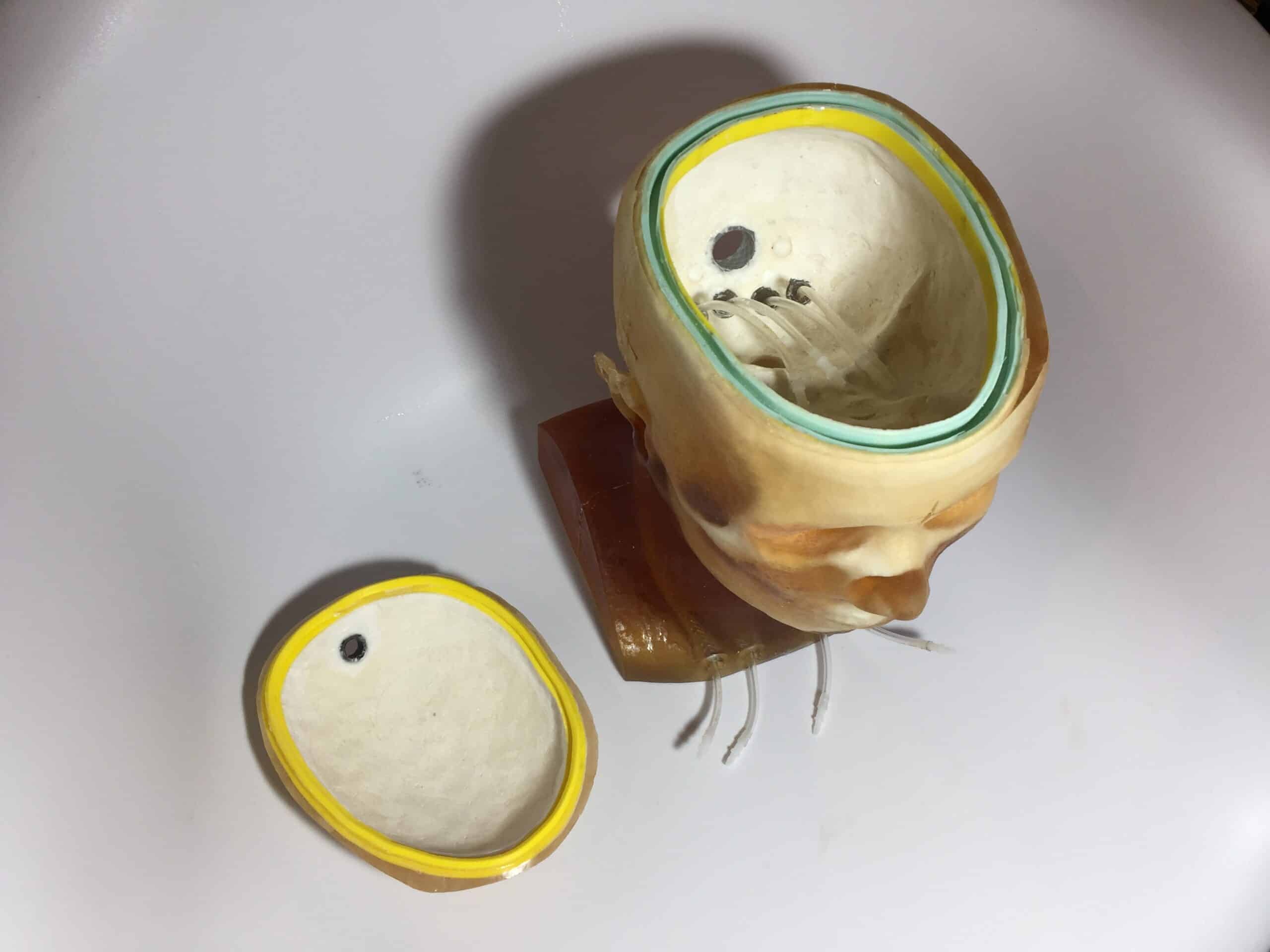

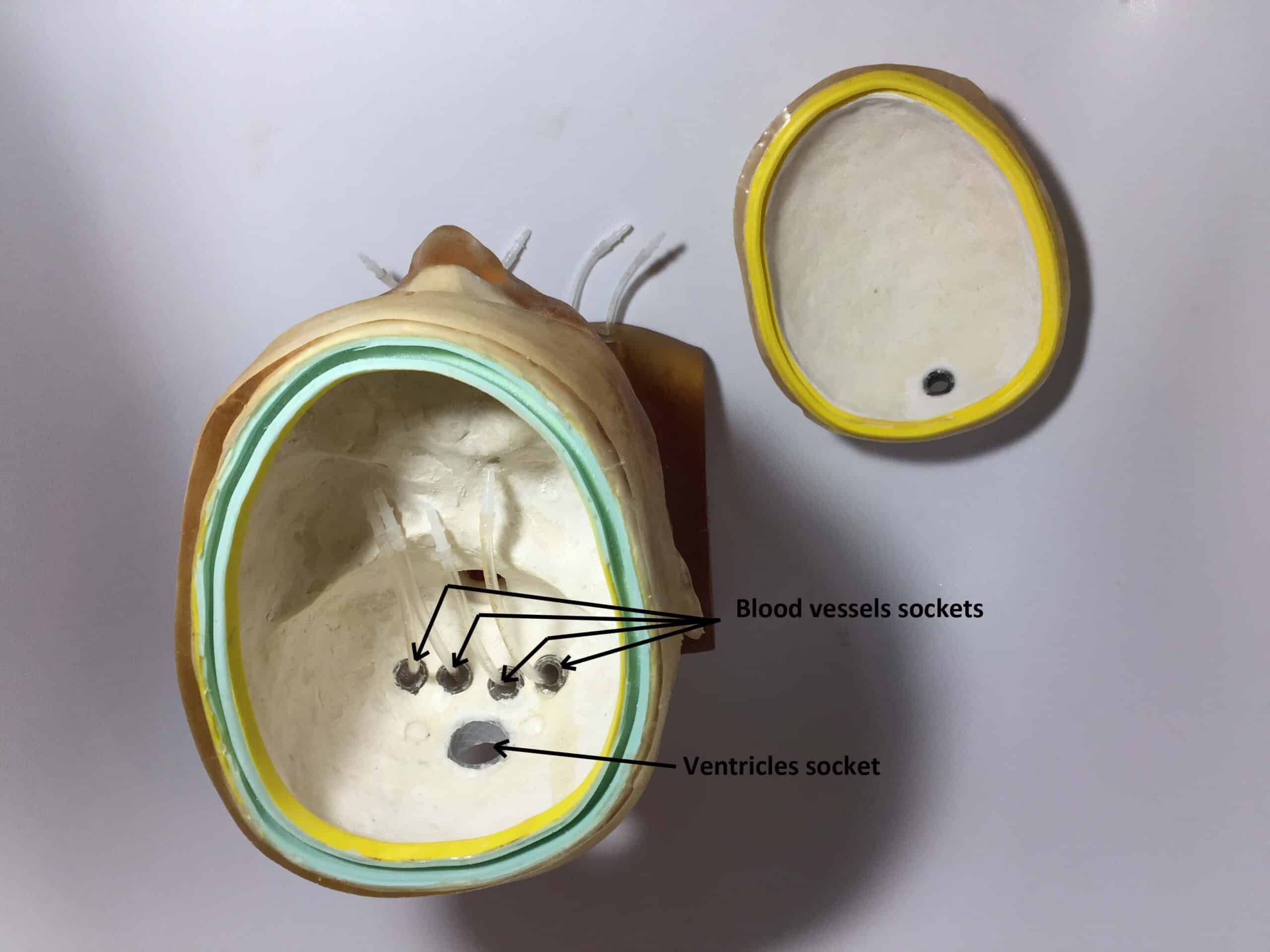

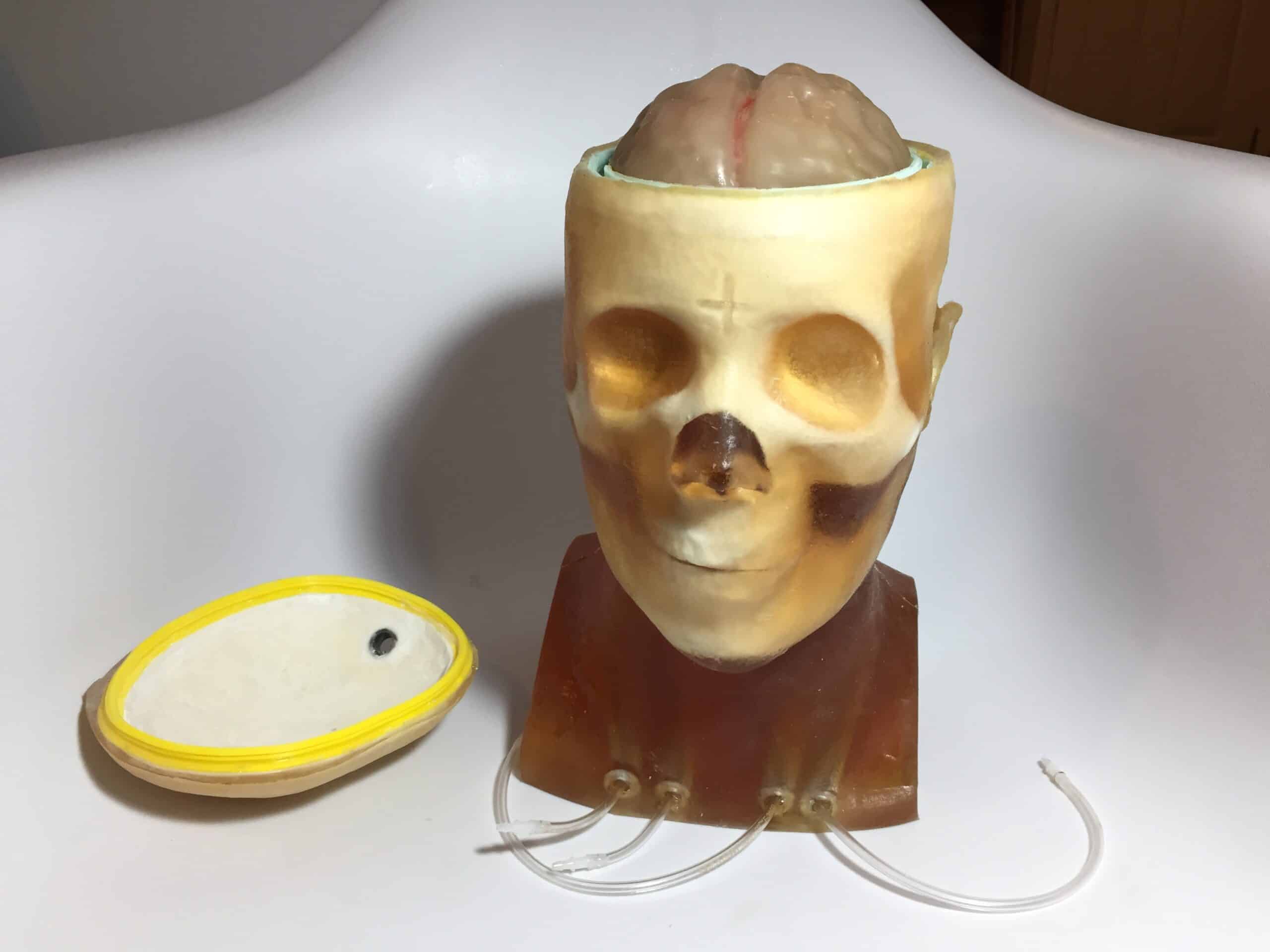

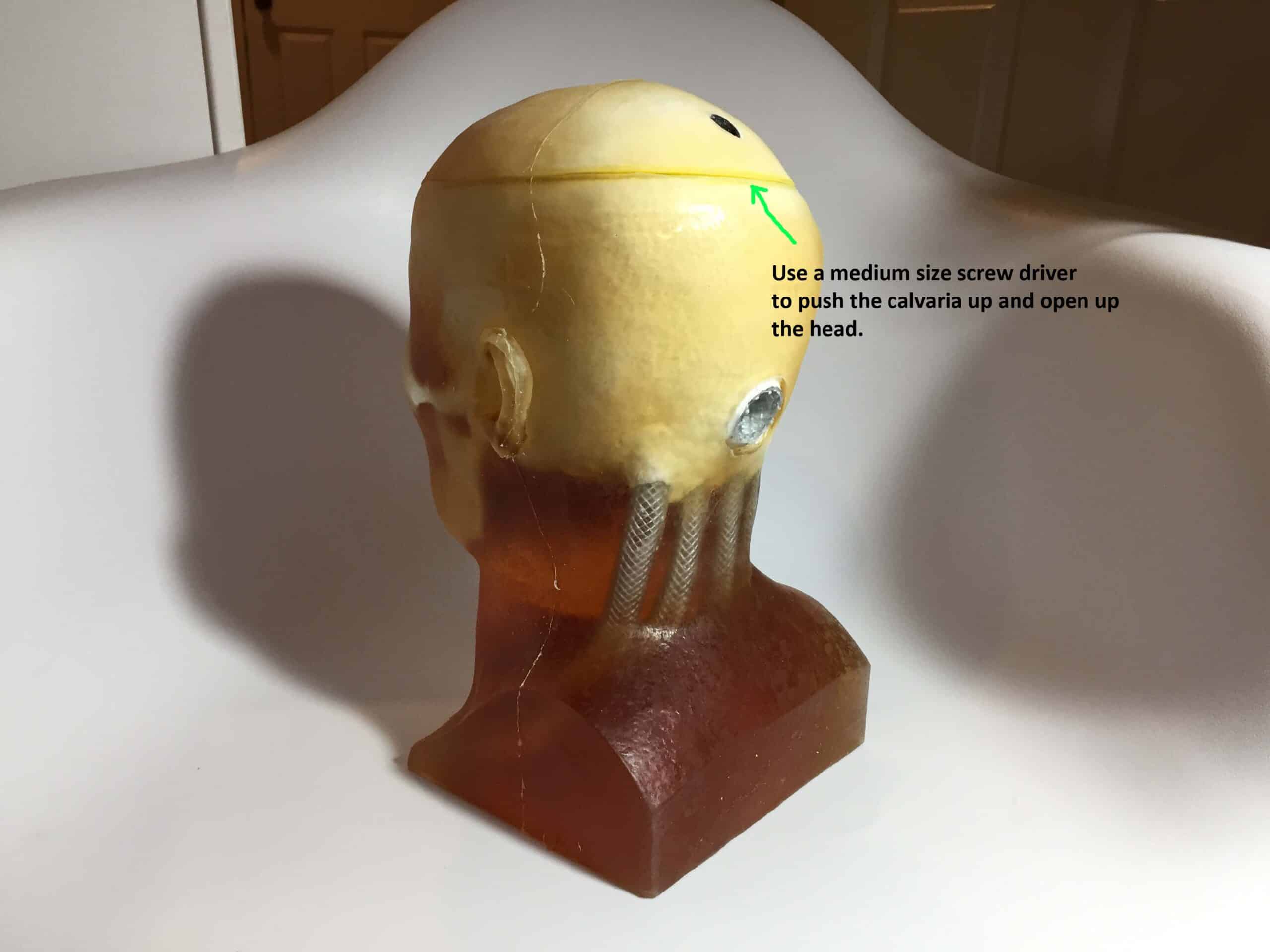

— Openable and Removable Calvaria
Alignment Markings
Acoustically Correct Skin-Mimicking Material

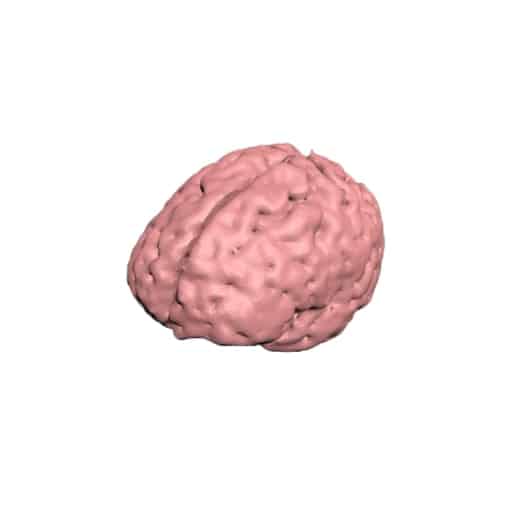

Brain (Optional)

Head Phantom Comparison

Features	Dynamic, Adv. Head	Static Head	Dynamic Head	Standard Head	Training, V1 Head	Hematoma Head	Openable Head
Skull	✓	✓	✓	✓	✓	✓	✓
Openable and Removable Calvaria	✓	✖	✖	✖	✖	✖	✓
Cervical Spine	✖	✓	✖	✖	✓	✓	✖
Skin Mimicking Material	✓	✓	✓	✓	✓	✓	✓
Brain (Gray Matter)	✓	✓	✓	✓	✓	✓	✖

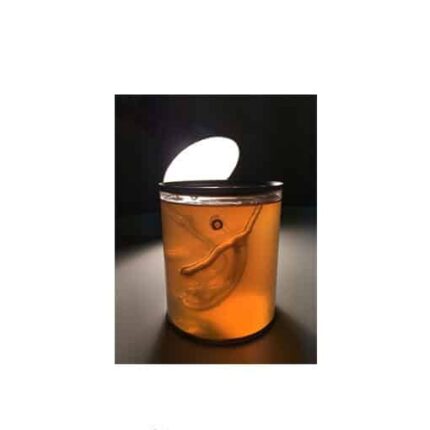

Brain Ventricles	✓	✖	✖	✓	✖	✓	✖
Brain Tumor	✖	✖	✖	✓	✖	✖	✖
Falx Cerebri	✖	✖	✖	✓	✓	✓	✖
White Matter	✖	✖	✖	✖	✓	✖	✖

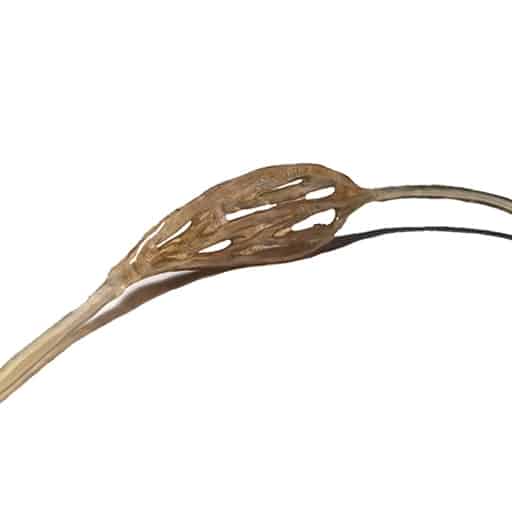

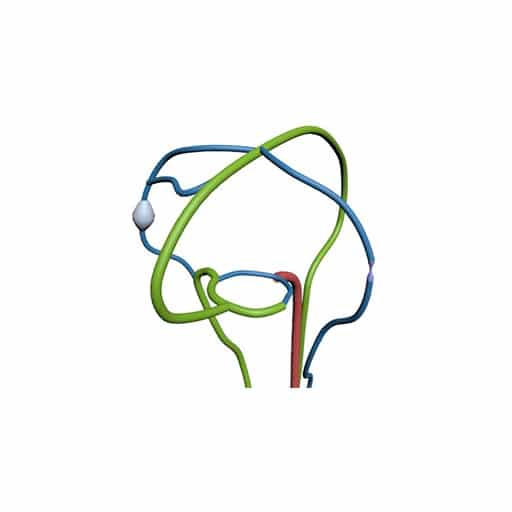

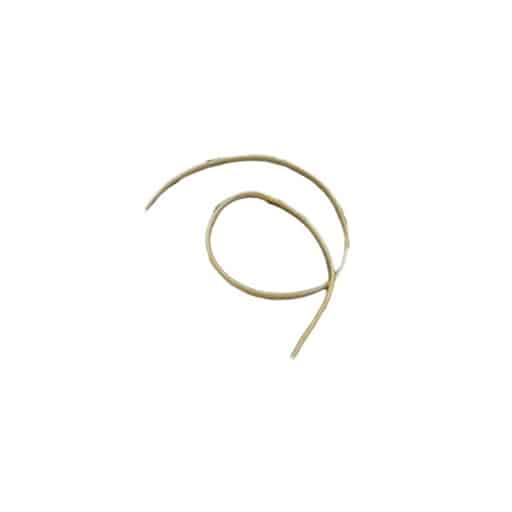

Brain Vessels	✓ ( {2mm, 3mm, 4mm} incorporated Circle of Willis )	✖	✓ ( {2mm, 3mm, 4mm} incorporated Circle of Willis )	✓	✖	✖	✖

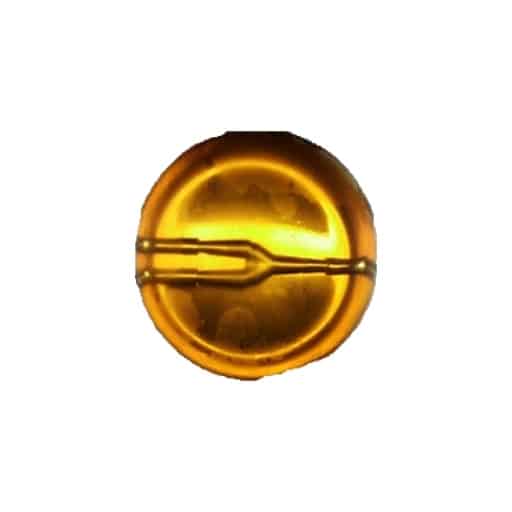

One Bifurcation	✓	✖	✓	✓	✖	✖	✖

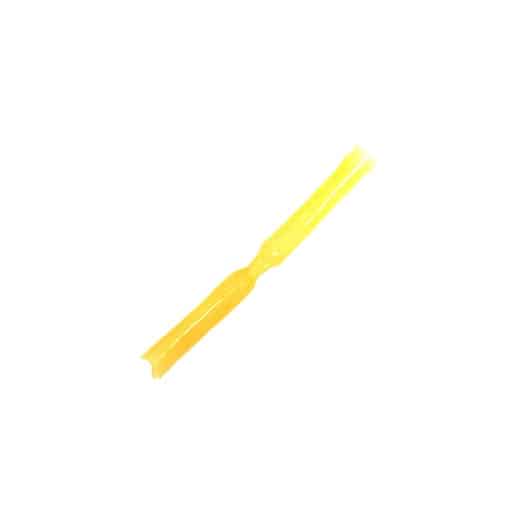

One Stenosis	✓	✖	✓	✖	✖	✖	✖

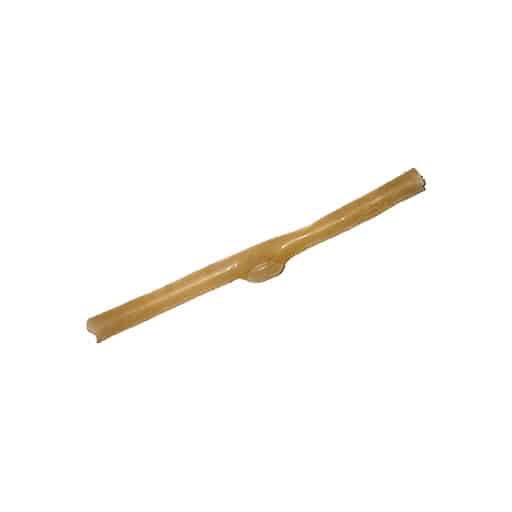

Two Aneurysms	✓	✖	✓	✖	✖	✖	✖
Vessels Connected with the Neck	✓	✖	✓	✓	✖	✖	✖
Plastic Connectors	✓	✖	✓	✖	✖	✖	✖
Small Static Objects	✖	✓ ( {0.5mm, 1mm, 2mm, 3mm Diameters} )	✖	✖	✖	✖	✖
Realistic Air Cavities	✖	✖	✖	✖	✓	✖	✖
Alignment Markings	✓	✓	✓	✓	✓	✓	✓
Frontal Sinus with Air Gaps	✖	✖	✖	✖	✓	✖	✖
Hematoma	✖	✖	✖	✖	✖	✓	✖

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

Note: By default, the phantom does not come with a brain. A brain can be included upon request

Scan Results

Name: Adult Head (Openable) for X-Ray CT, US, MRI
SKU: HD-C02
Price: 1.00 USD
Availability: InStock

Coming Soon...

In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.

Procedure to Scan the Phantom under Ultrasound:

To scan the head under ultrasound, fill the skull cavity with water or your preferred liquid. You can fill the skull using a syringe or by directly pouring water from a water tap through the opening on the back. The liquid is added to act as a dura matter that would act in an actual human head, and it will work as a medium through which the ultrasound wave can pass.

You can also scan the head by submerging it completely under water (i.e., in a water tank) and removing all the air bubbles from between the skull and the brain.

Once the testing is complete, drain the water and dry before storage.

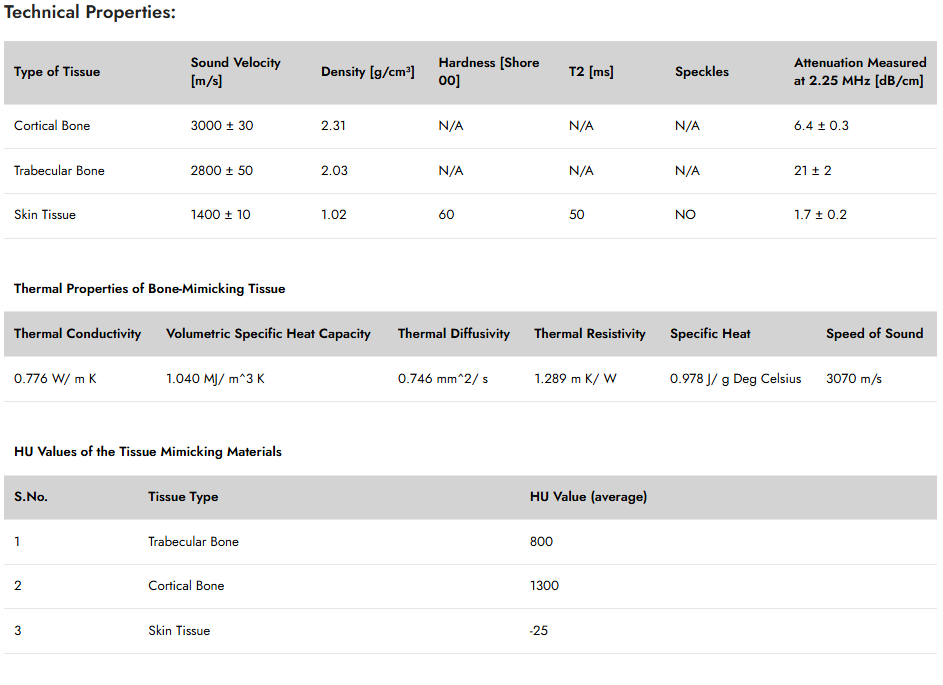

Technical Properties:

Type of Tissue	Sound Velocity [m/s]	Density [g/cm³]	Hardness [Shore 00]	T2 [ms]	Speckles	Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone	3000 ± 30	2.31	N/A	N/A	N/A	6.4 ± 0.3
Trabecular Bone	2800 ± 50	2.03	N/A	N/A	N/A	21 ± 2
Skin/Body Tissue	1400 ± 10	1.02	60	50	NO	1.7 ± 0.2

All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 60, the coated body tissue will be OO 90.

Thermal Properties of Bone-Mimicking Tissue
Thermal Conductivity	Volumetric Specific Heat Capacity	Thermal Diffusivity	Thermal Resistivity	Specific Heat	Speed of Sound
0.776 W/ m K	1.040 MJ/ m^3 K	0.746 mm^2/ s	1.289 m K/ W	0.978 J/ g Deg Celsius	3070 m/s

HU Values of the Tissue Mimicking Materials
S.No.	Tissue Type	HU Value (average)
1	Trabecular Bone	800
2	Cortical Bone	1300
3	Skin Tissue	-25

View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
