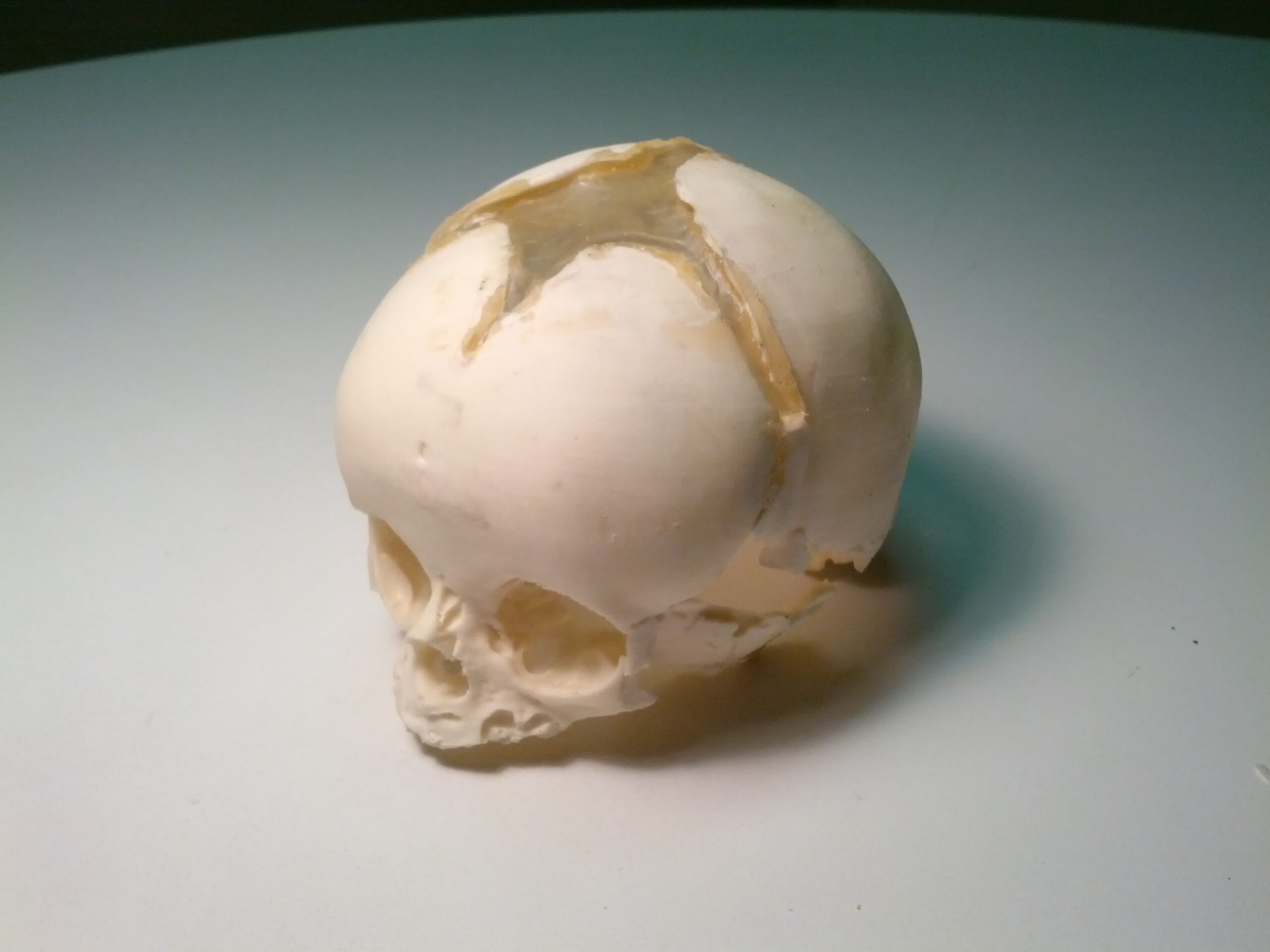

The Newborn Skull is a multipurpose phantom medical imaging research & treatment planning of non-invasive HIFU brain surgeries. True Phantom Solutions are pioneers in developing these phantoms and hold strength in customizing them to suit the needs of researchers and medical practitioners.

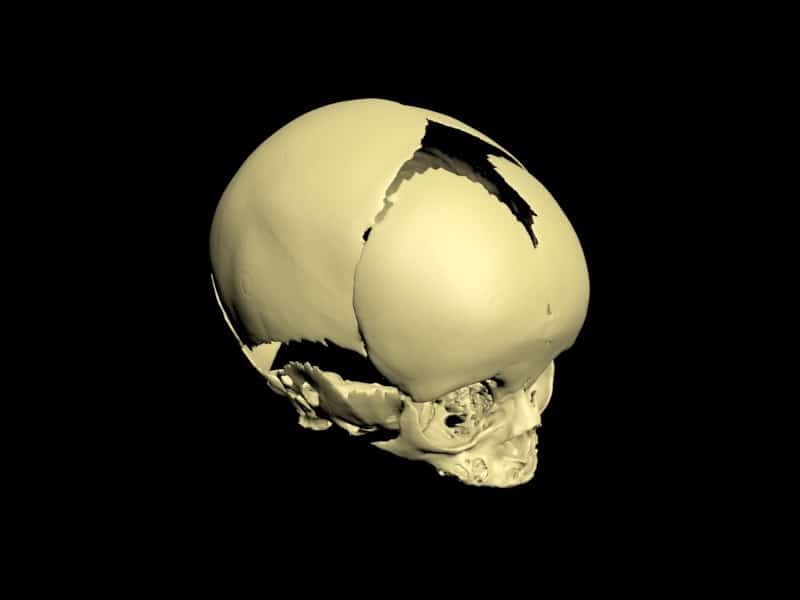

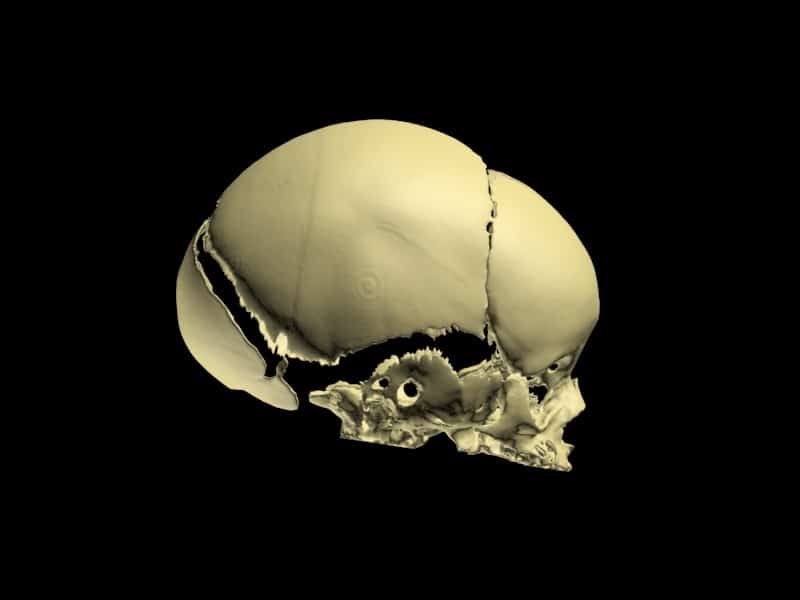

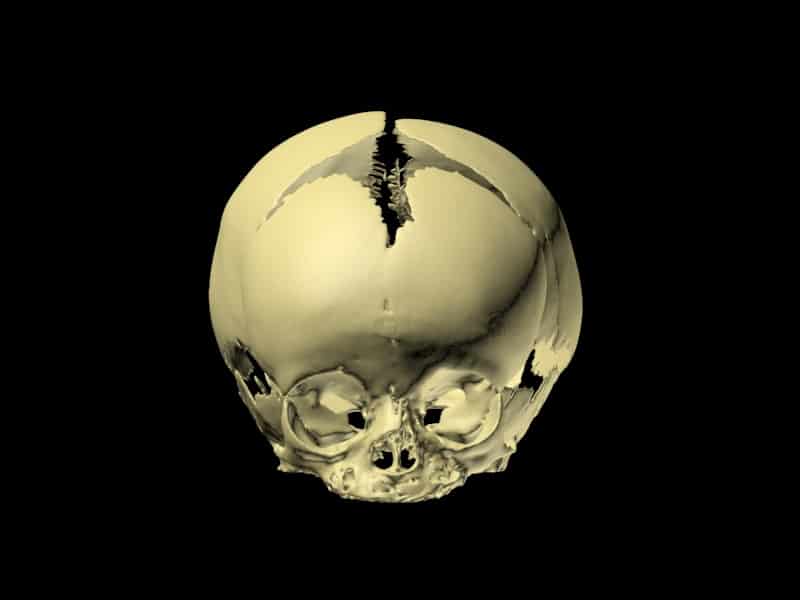

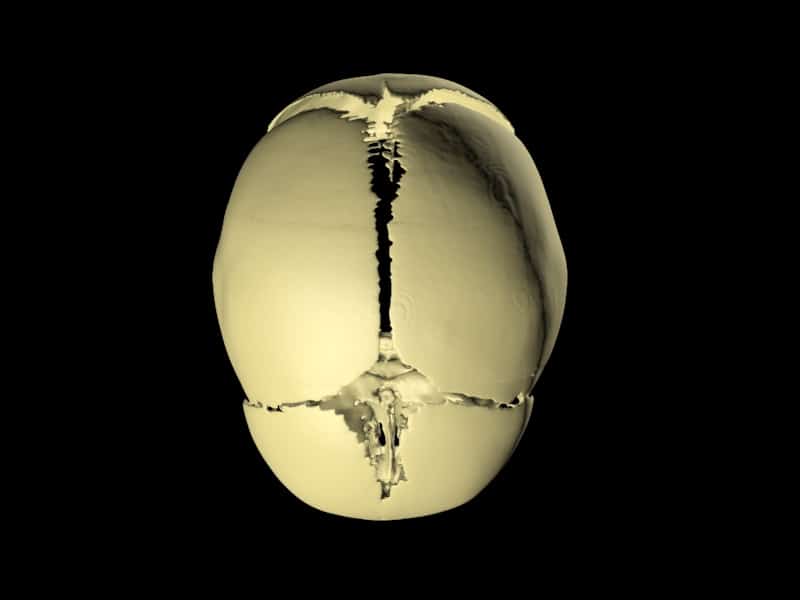

The design of this phantom is based on an average newborn skull, and it is made out of realistic patented epoxy-based bone material suitable for Ultrasound, MRI, and X-Ray/CT applications (any other part of the skull can be fabricated based on the customer order).
- Based on an Average Newborn Human Skull
- Realistic Bone-Mimicking Material

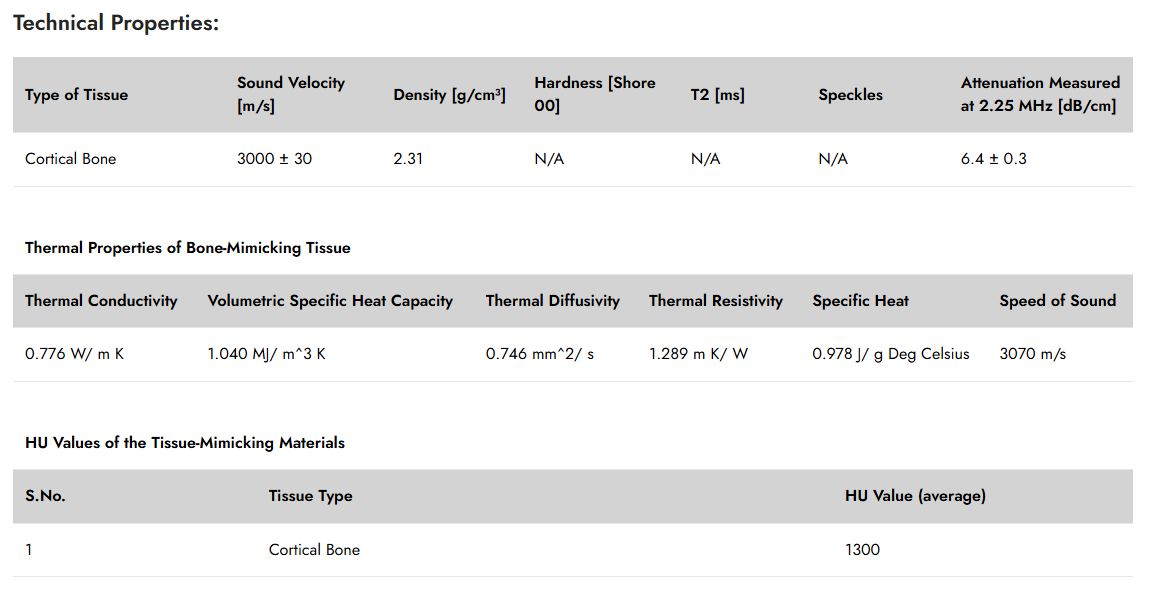

Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Speckles | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Thermal Properties of Bone-Mimicking Tissue | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Cortical Bone | 1300 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
Newborn Skull Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Phantom:
- Size: 4 x 6 x 5 Inches
- Weight: 2 Lbs (approx.).
Shipment:
- Size: 12 x 10 x 10 Inches
- Weight: 6 Lbs (approx.)
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
