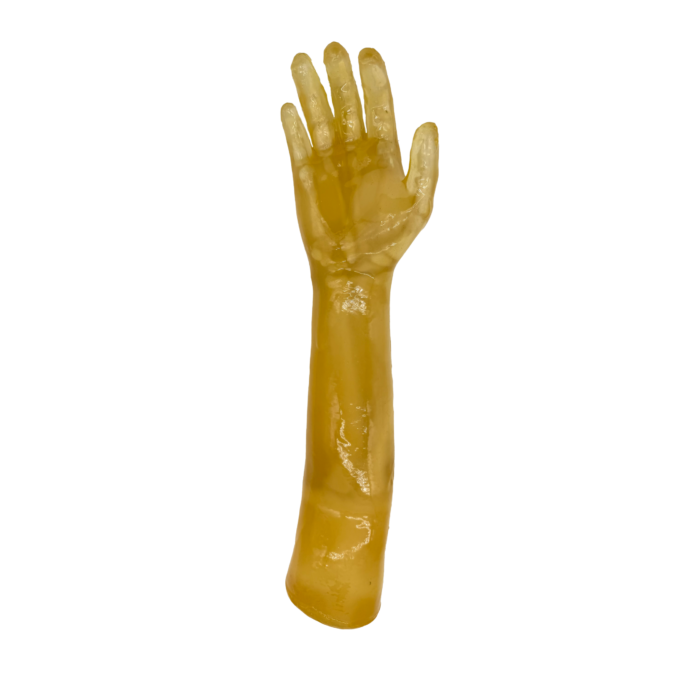

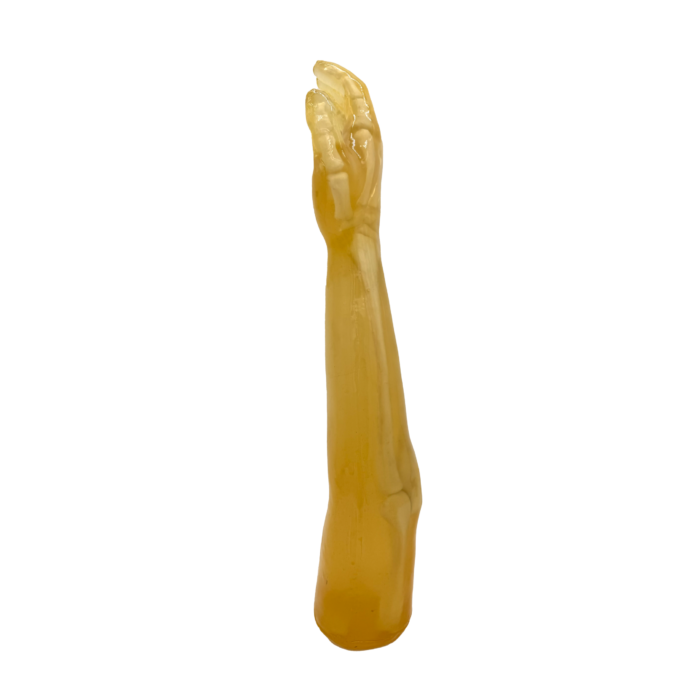

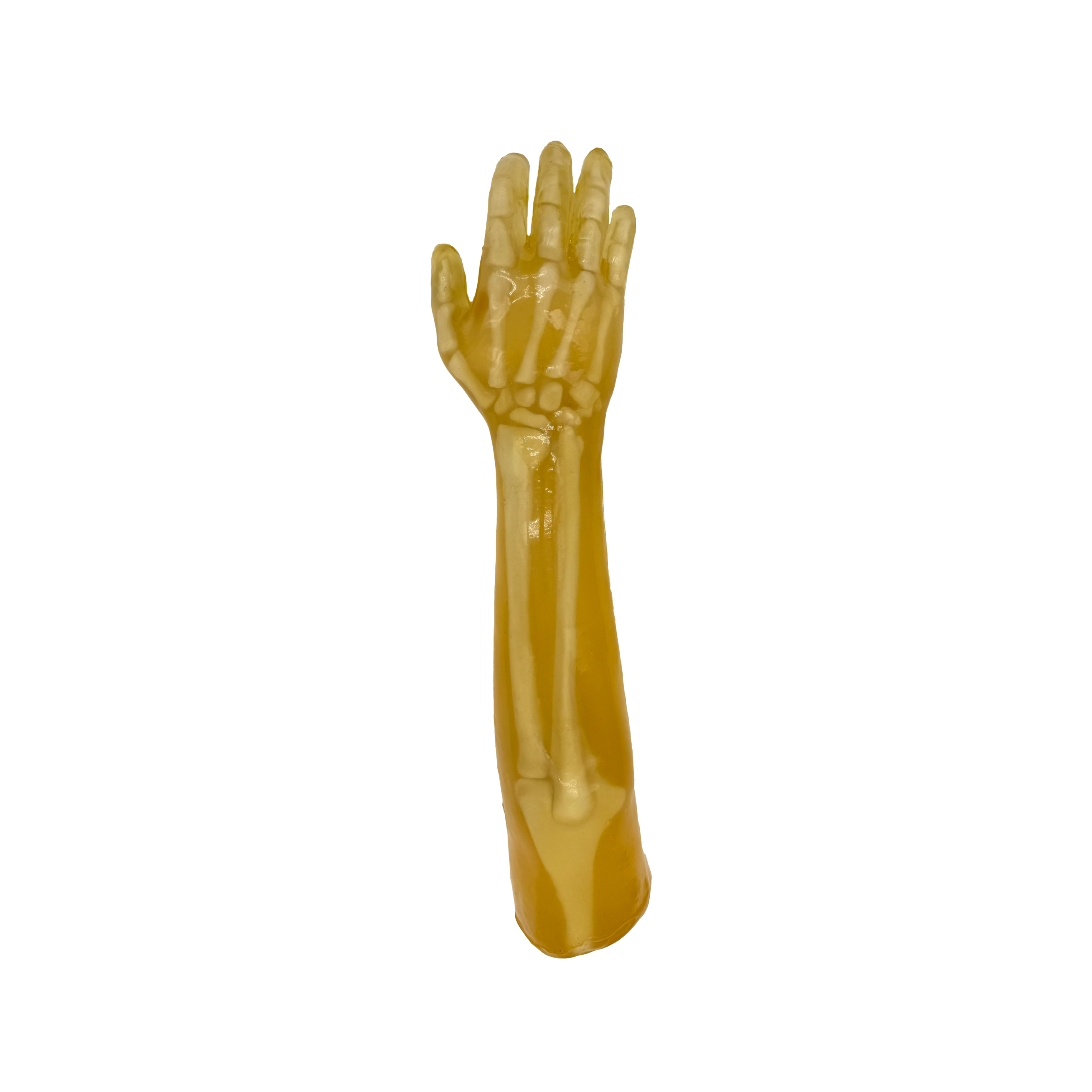

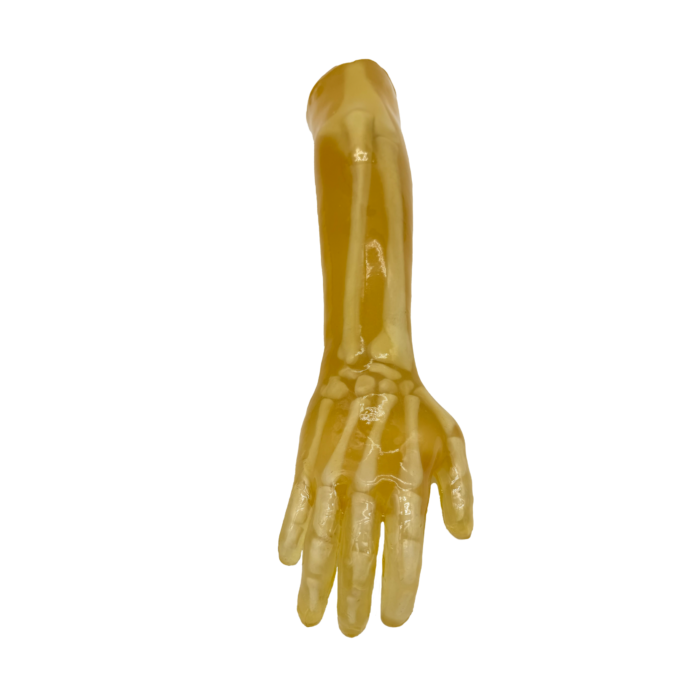

Lower Arm with Elbow

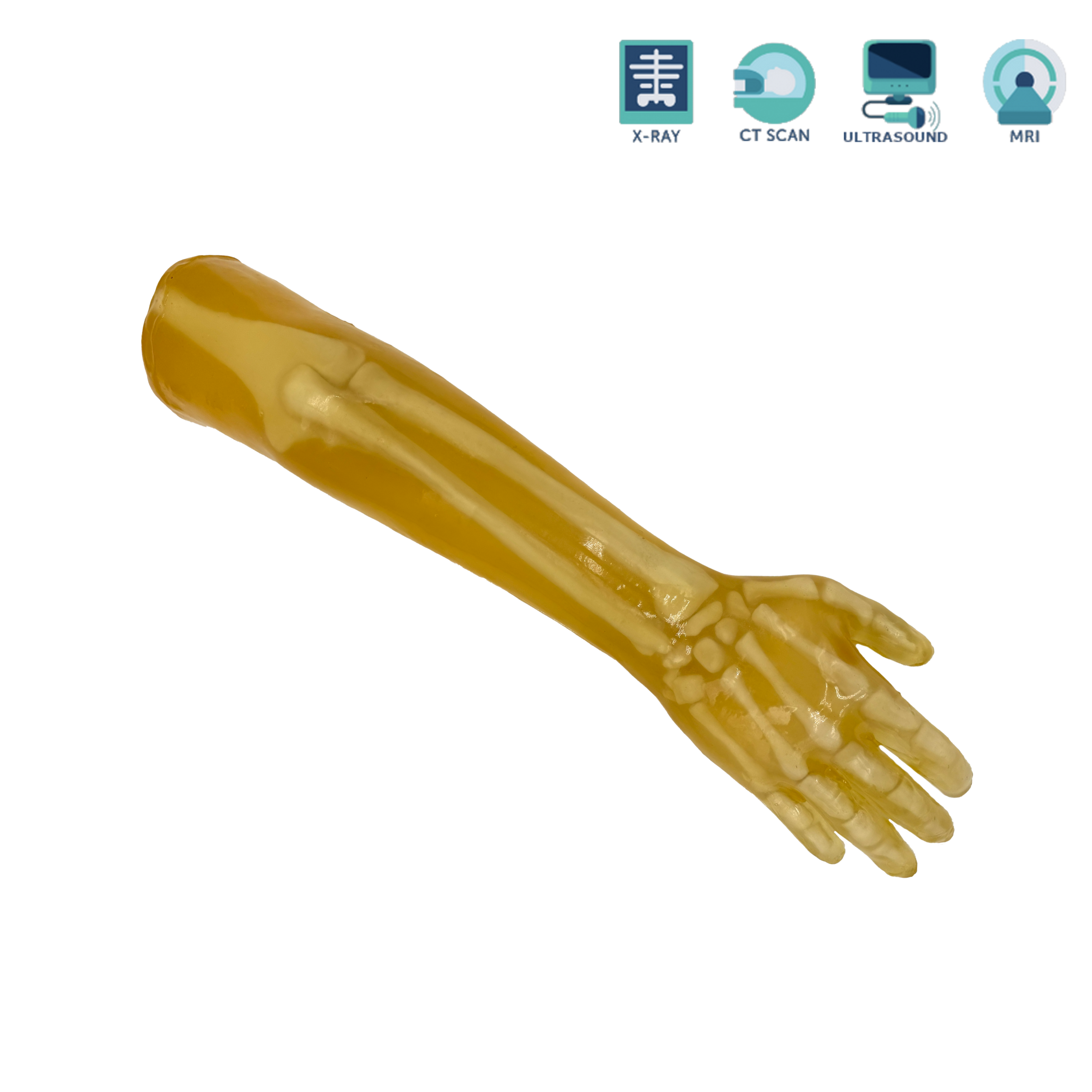

The Lower Arm with Elbow phantom has an internal structure and anatomy based on the average lower arm of an adult human. The synthetic bones used in this phantom are made out of our patented material, which is best suited for X-Ray, CT ,US and MRI imaging applications. The soft tissue is made from realistic urethane-based tissue-mimicking materials.Â

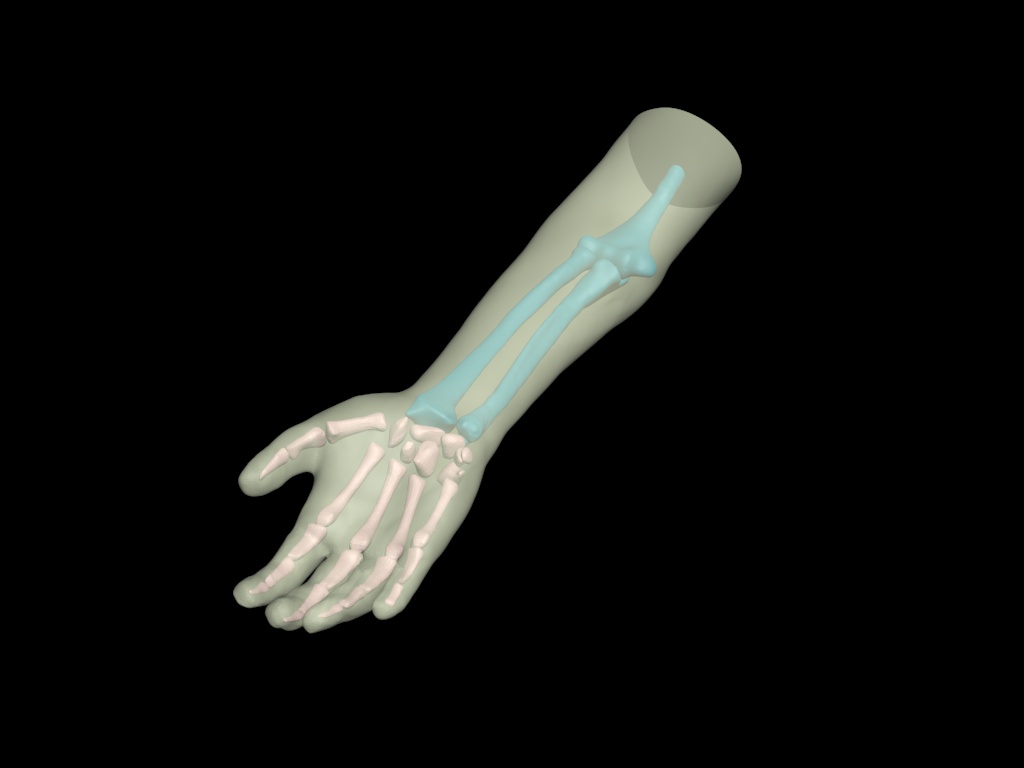

The positioning of the bones is designed to mimic an arm under X-Ray AP View.
The phantom can be used as a tool to conduct radiology training in schools and other teaching institutions, medical imaging research, or testing. It is an ideal training tool as it can be scanned over and over again without any risk of radiation. The bones are individually casted by hand and assembled by expert technicians before being casted in the soft tissue mimicking material.Â
This product can be further customized to match a wide variety of project requirements.

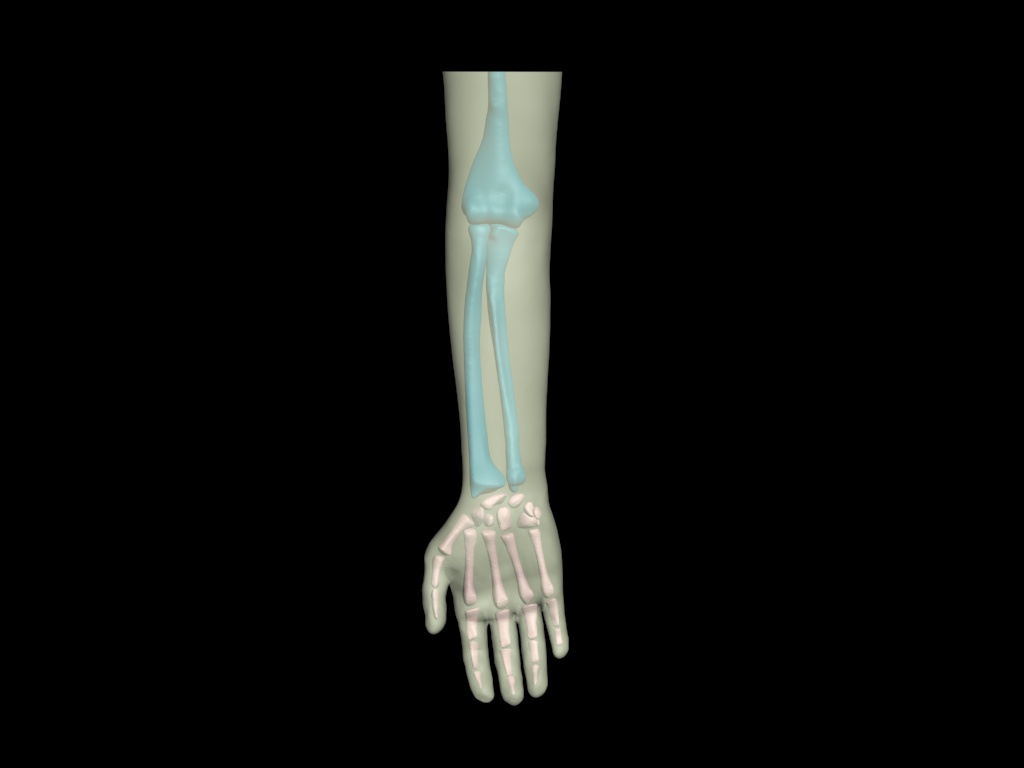

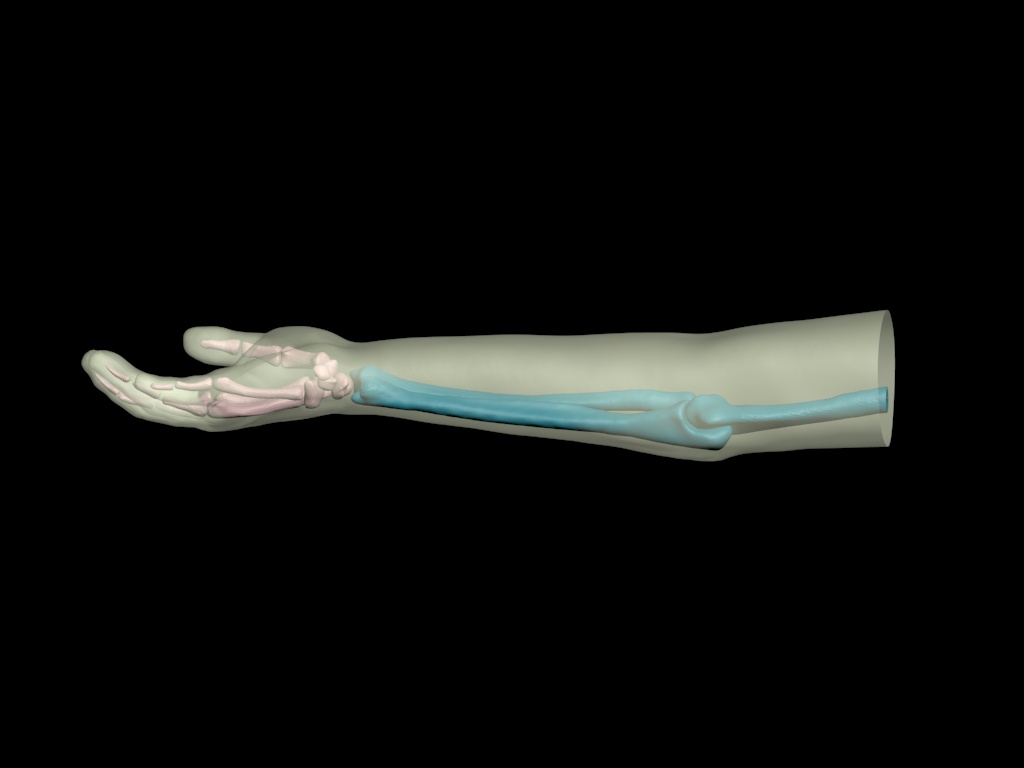

- Partial Humerus
- Ulna
- Radius
- Hand
- Wrist Bones
- Finger Bones
- Realistic Soft Body Tissue
- Â
Coming soon. You can have a look at the radiographs of our other products to review the material's imaging quality here.
Technical Properties:
| Type of Tissue | Sound Velocity [m/s] | Density [g/cm³] | Hardness [Shore 00] | T2 [ms] | Hounsfield Value | Attenuation Measured at 2.25 MHz [dB/cm] |
| Cortical Bone | 3000 ± 30 | 2.31 | N/A | N/A | 1300 | 6.4 ± 0.3 |
| Trabecular Bone | 2800 ± 50 | 2.03 | N/A | N/A | 1300 | 21 ± 2 |
| Body Tissue | 1410 ± 10 | 1.02 | 35 | 50 ms | 25 | 1.7 ± 0.2 |
All standard phantoms are coated with a protective layer of the harder urethane rubber to offer enhanced appearance and safeguard the phantom from any scratches when handled without care. This coated layer also provides a glossy finish and slightly changes the hardness of the phantom. The Hardness [Shore 00] for the ‘Body Tissue’ mentioned above is measured without the coat layer. The coat will increase the hardness by approximately 30 points meaning that if the body tissue hardness is OO 35, the coated body tissue will be OO 65.
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Trabecular Bone | 800 |
| 2 | Cortical Bone | 1300 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
Lower Arm with Elbow Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Phantom:
- Size: 5.9 x 3.6 x 19.3 Inches (15 x 9 x 49 cm)
- Weight: 4 lbs (1.8kg) (approx.)
Shipment:
- Size: 23 x 14 x 10 Inches
- Weight:Â 16 lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
