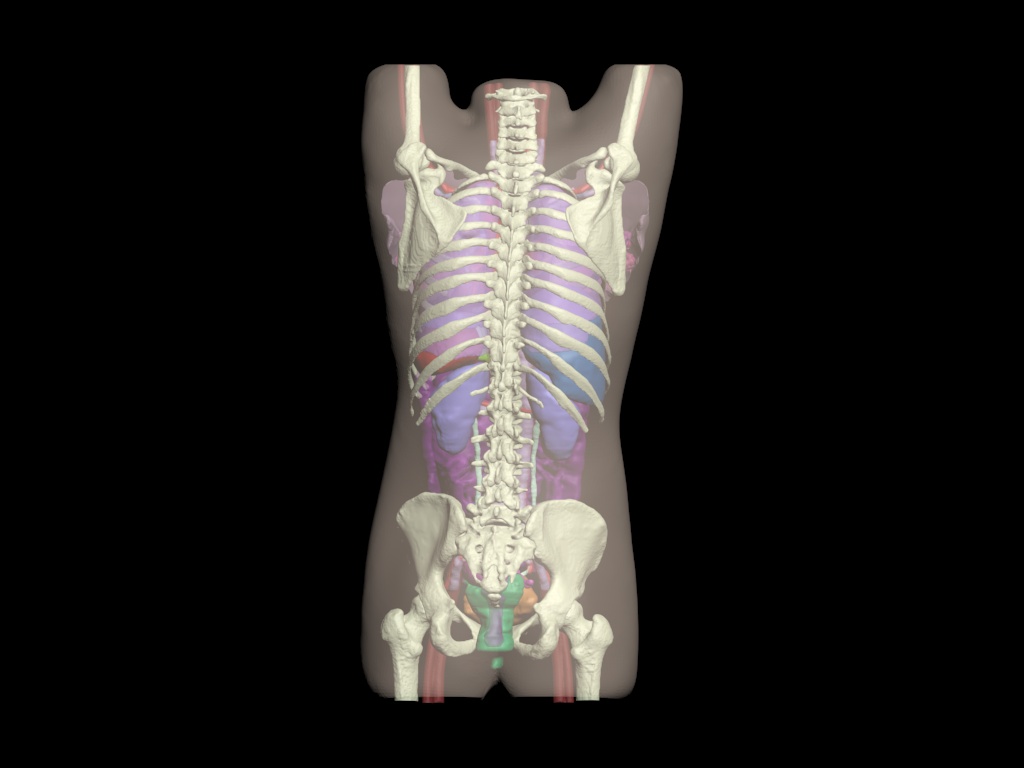

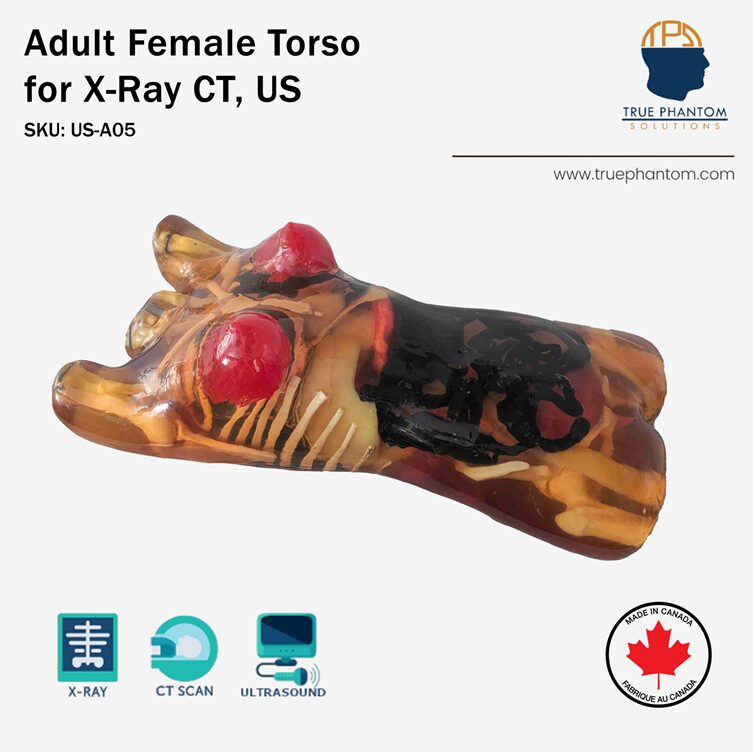

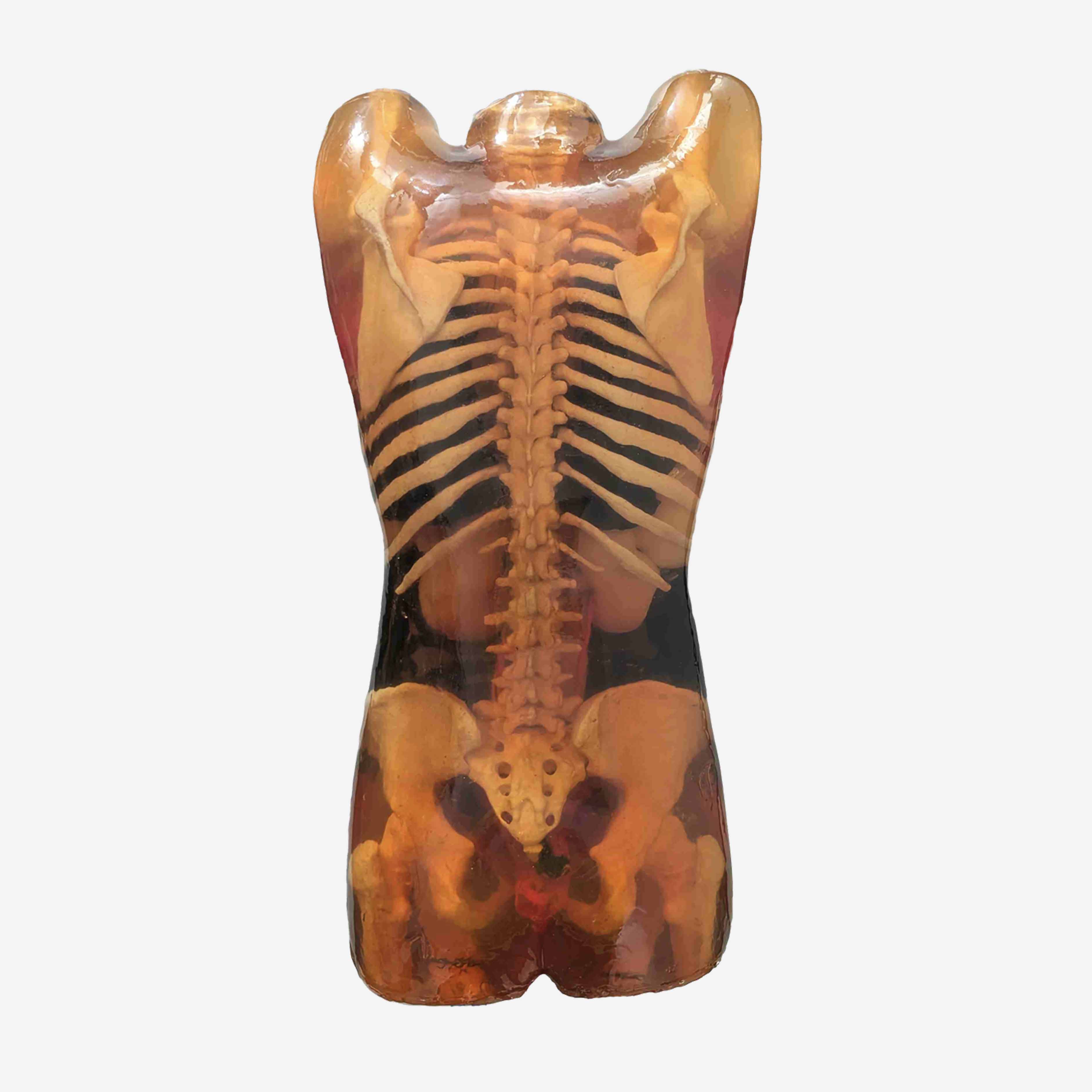

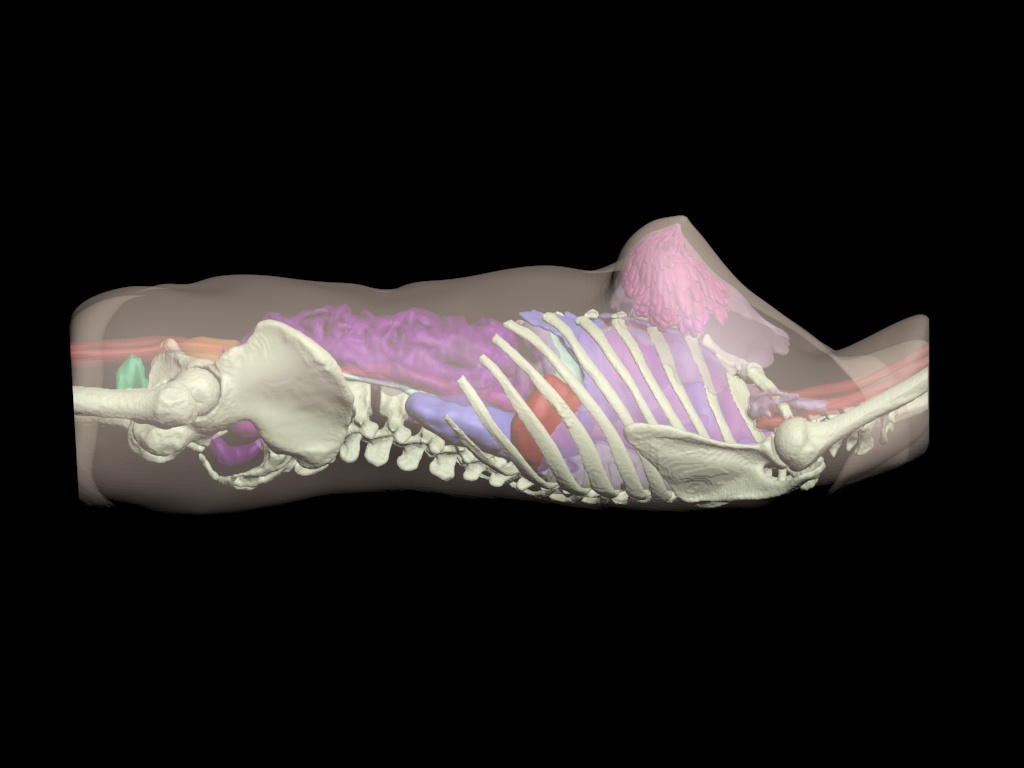

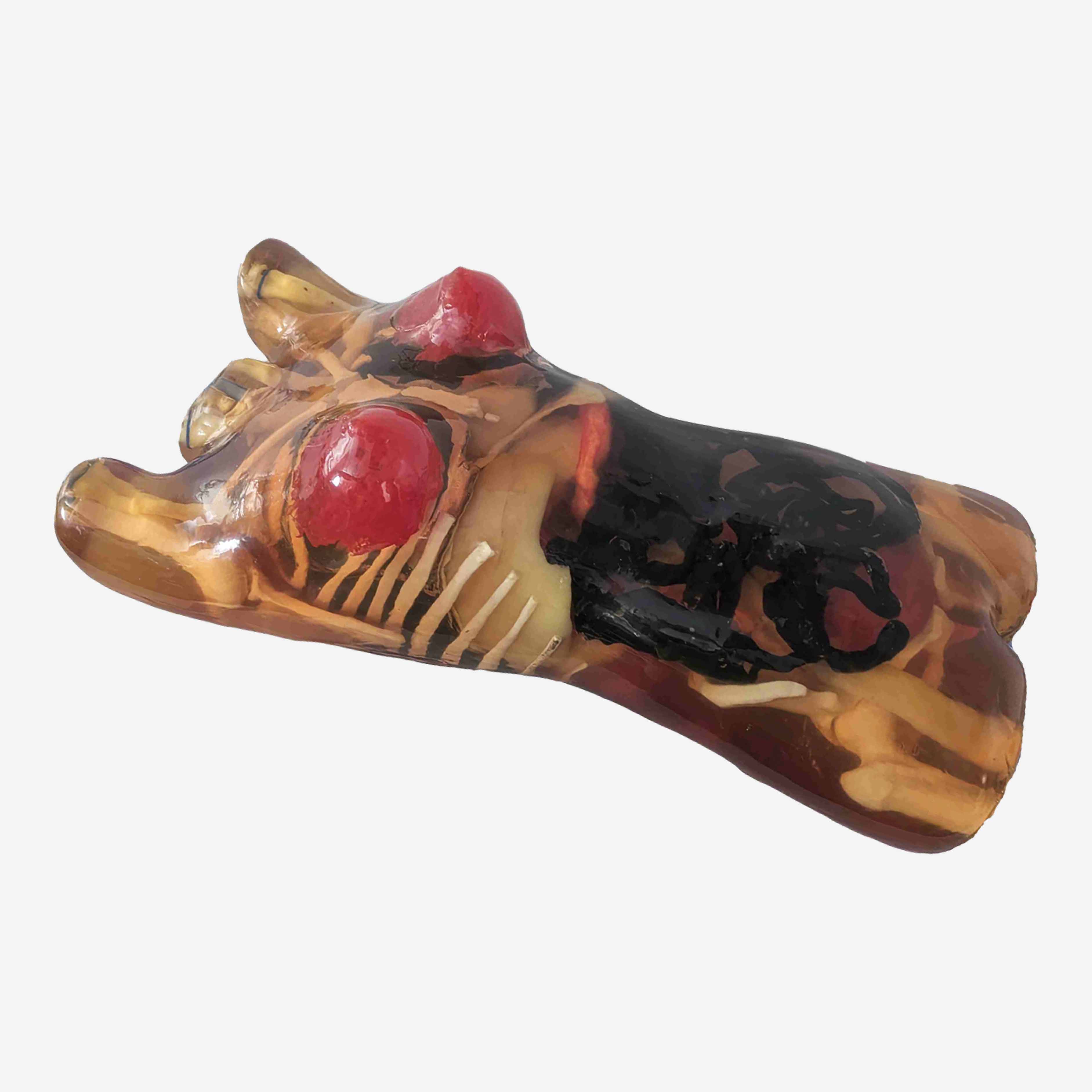

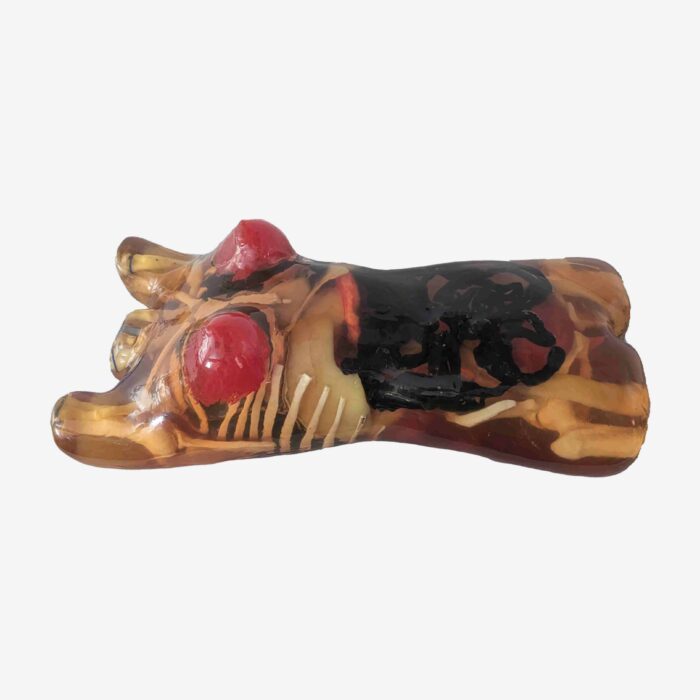

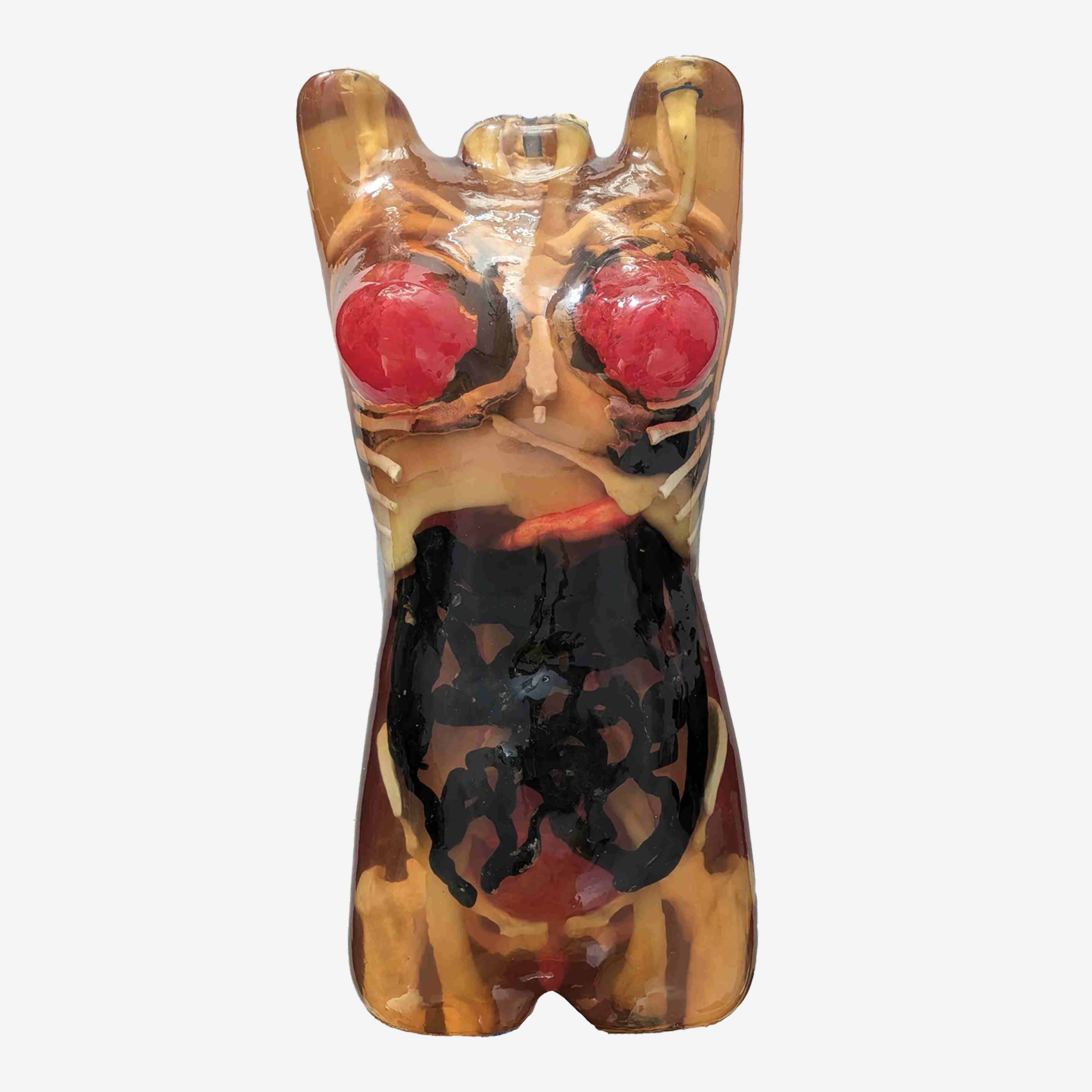

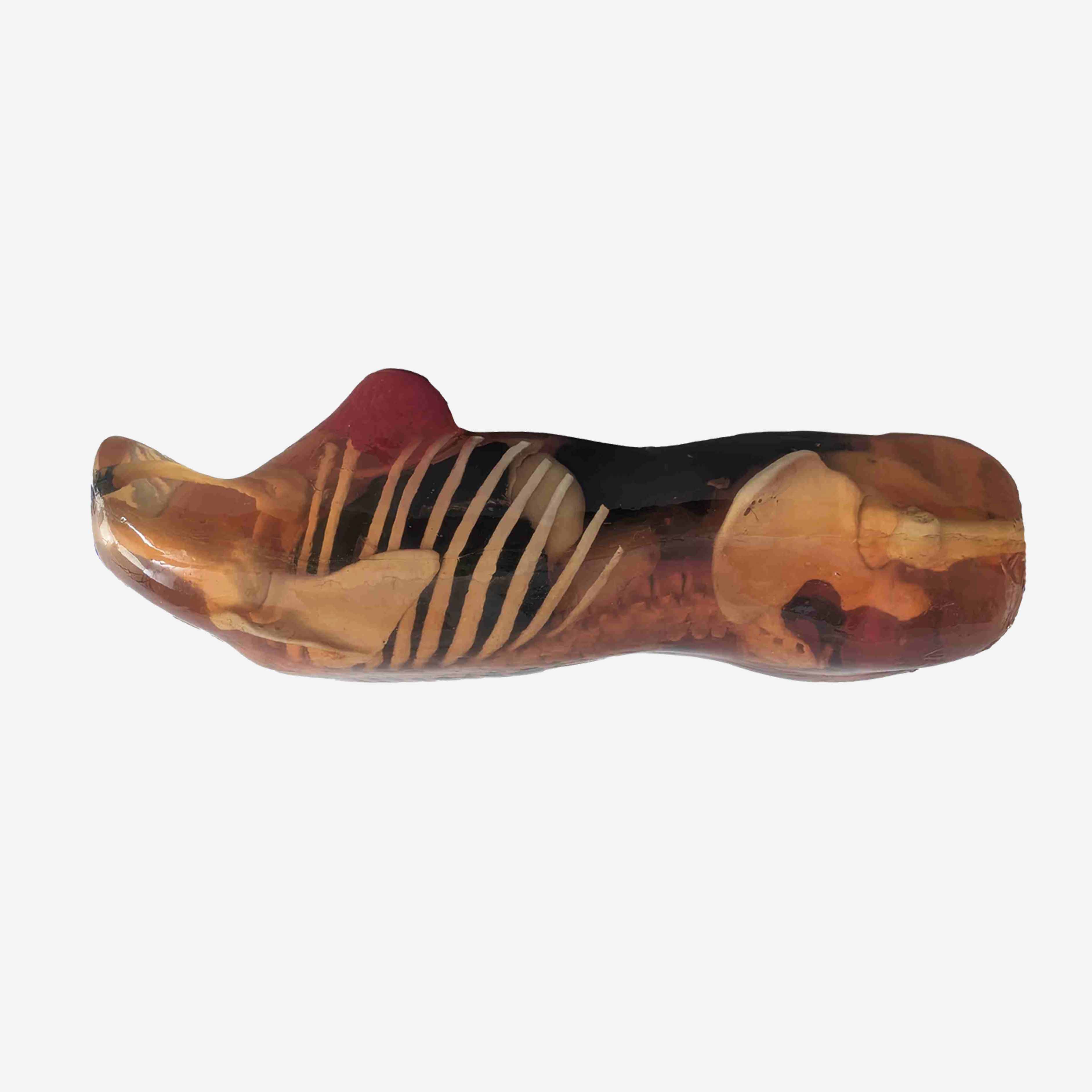

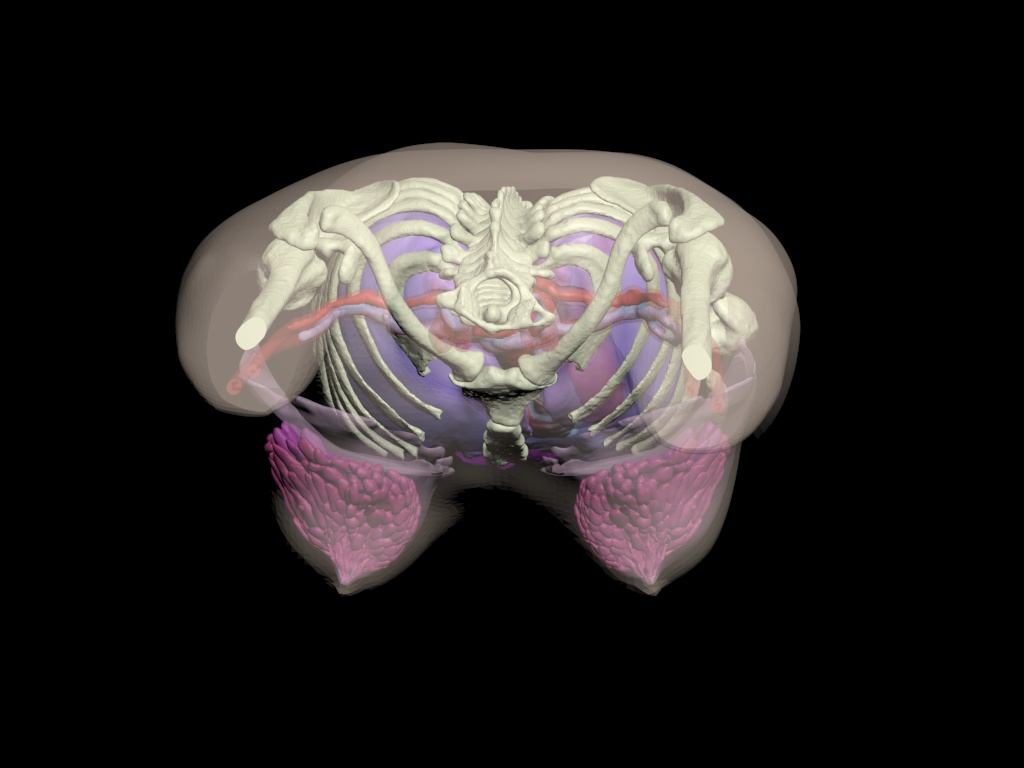

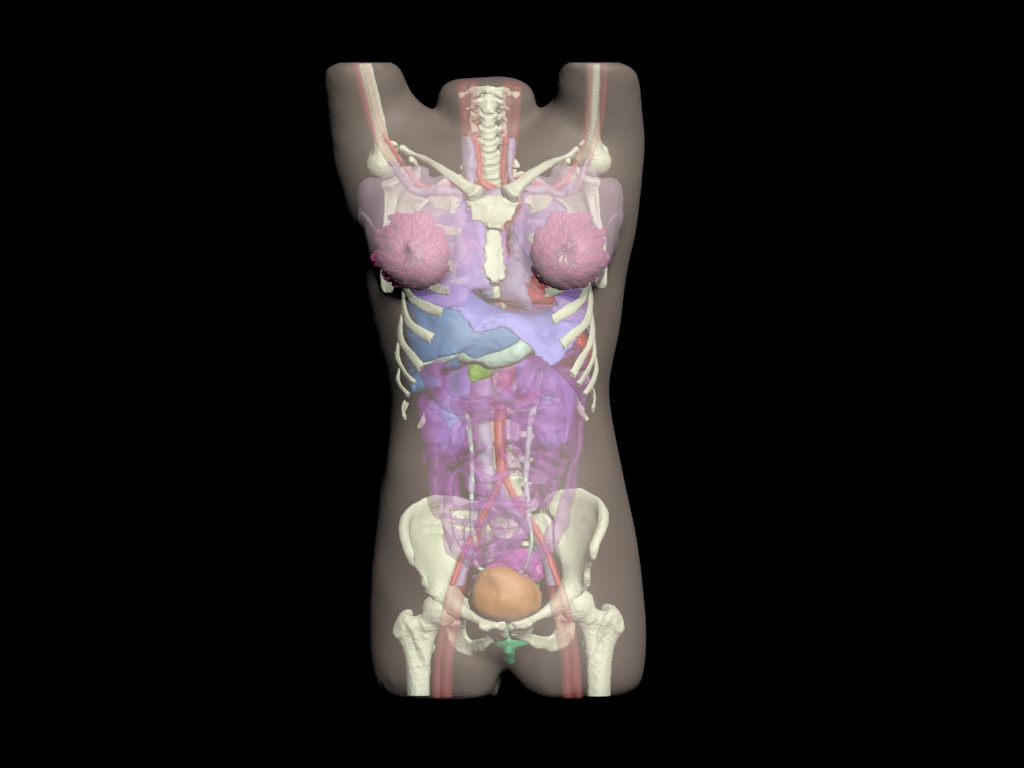

The Adult Female Torso Phantom is a groundbreaking innovation in medical imaging simulation, offering an unprecedented level of anatomical accuracy. With the help of AI (Artificial Intelligence) software, this phantoms design has been directly extracted from CT scans of a live, healthy 35-year-old patient with a height of 168cm (5’5″) and a BMI adjusted to 22. As a result, it features highly realistic anatomical structures and organ positioning. Developed in collaboration with medical professionals in the United States and Switzerland, this advanced phantom sets a new standard in medical imaging education, system development, and research applications.
Engineered with multi-modality compatibility, the Adult Female Torso Phantom is optimized for X-Ray, CT, and Ultrasound, making it a versatile tool for a wide range of clinical and research purposes. Its advanced tissue-mimicking materials closely replicate soft tissue and bone of real human tissue. This high level of realism is particularly beneficial for radiology training, where medical students, residents, and technologists can gain hands-on experience using this phantom with different imaging equipment.
This phantom also offers insight into several specialties dedicated to women’s health, as well as general medical fields that frequently address female-specific conditions. For example, gynecology, breast oncology, and mammography, with the potential for customizations to address obstetrics, including childbirth and pregnancy.
Anatomy
- Complete Spine
- Complete Ribcage
- Shoulders and Clavicles
- Pelvis
- Partial Femoral Bones
- Trachea
- Heart
- Lungs
- Diaphragm
- Breasts:
– Body Tissue Mimicking Material
– Mammary Fat Tissues
– Mammary Gland Tissues - Liver
- Gallbladder
- Stomach
- Kidneys
- Spleen
- Pancreas
- Large and Small Intestines
- Bladder
- Cervix
- Vaginal Canal
- Ovaries
- Uterus
The following videos were taken while the female torso was connected to our Heart and Lung pumps to simulate respiratory motion:
Heart Valve
Femoral Vein
Heart
Heart
Heart
Liver and Diaphragm
Optional Add-Ons:

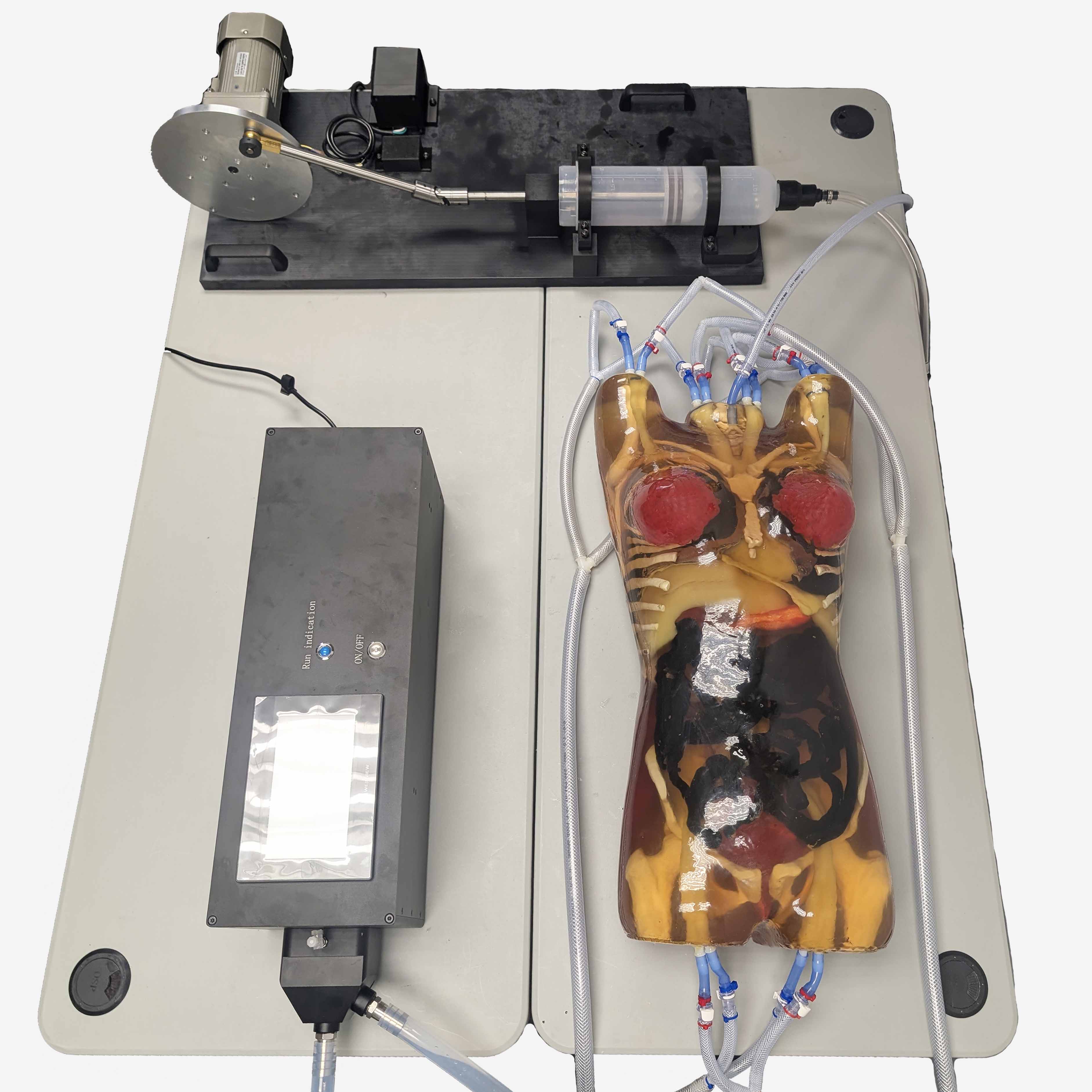

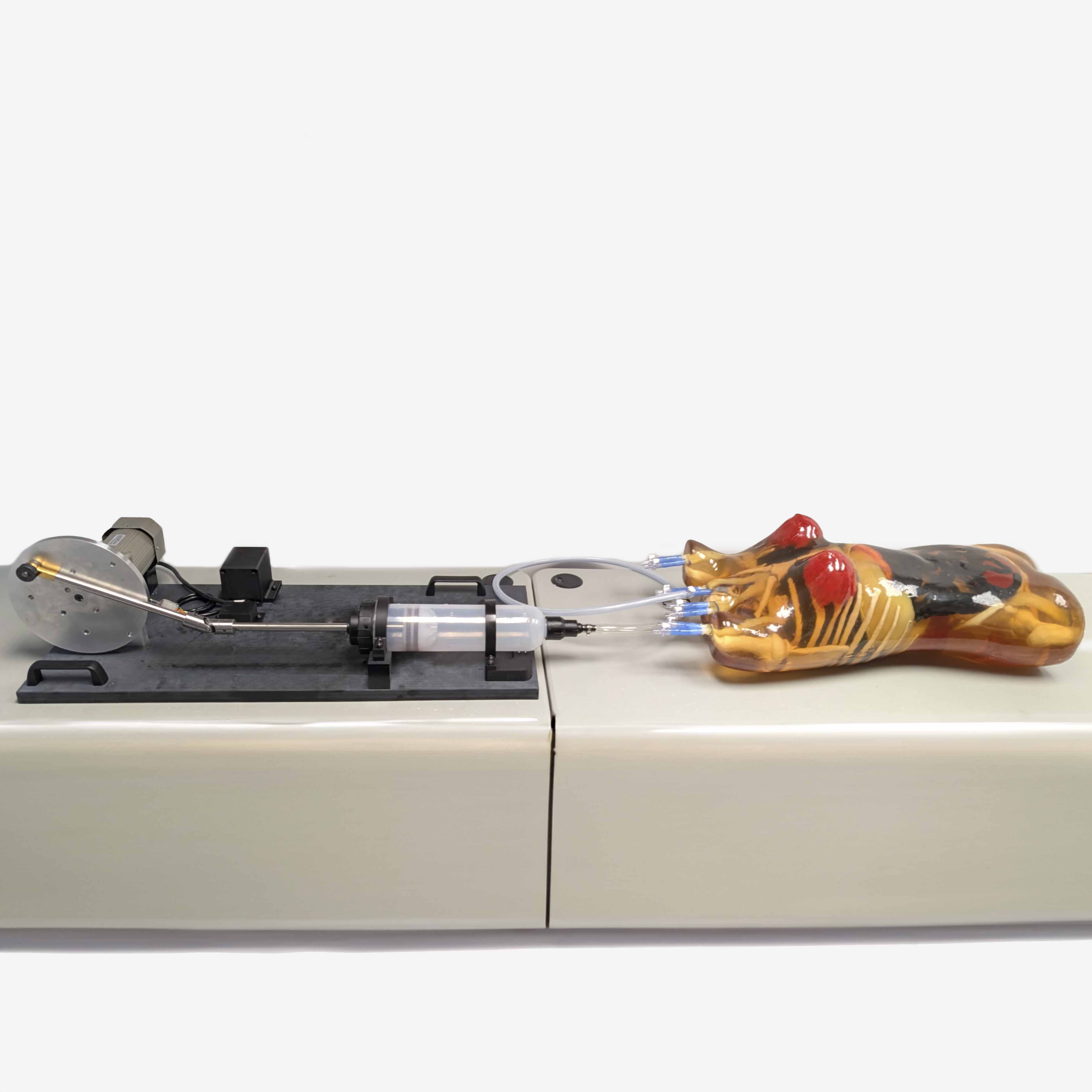

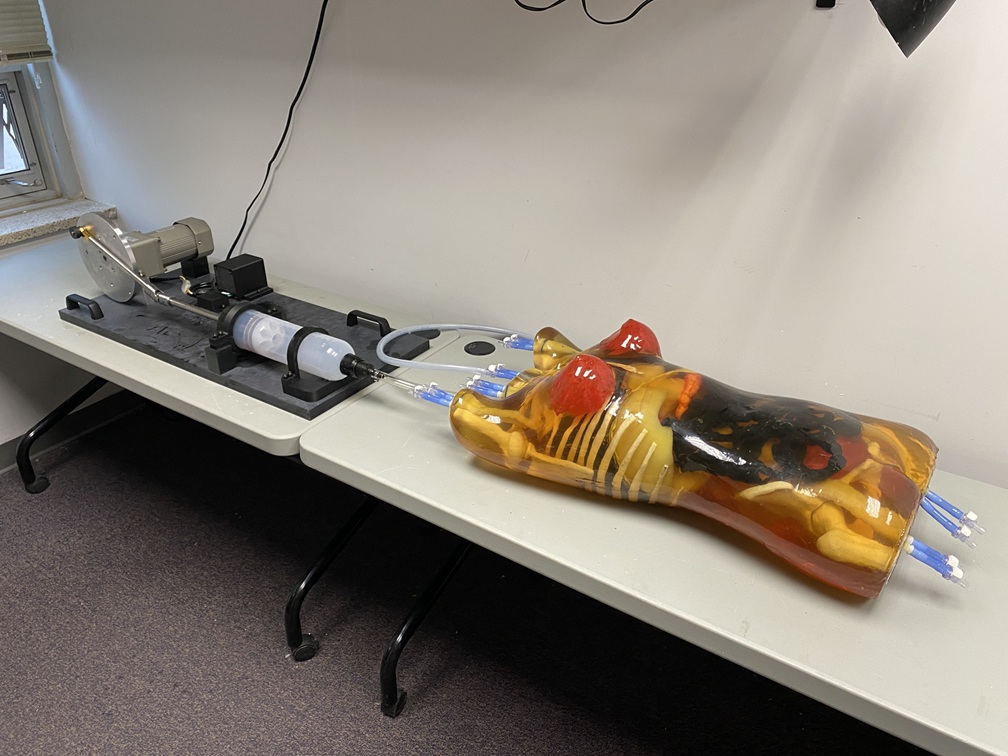

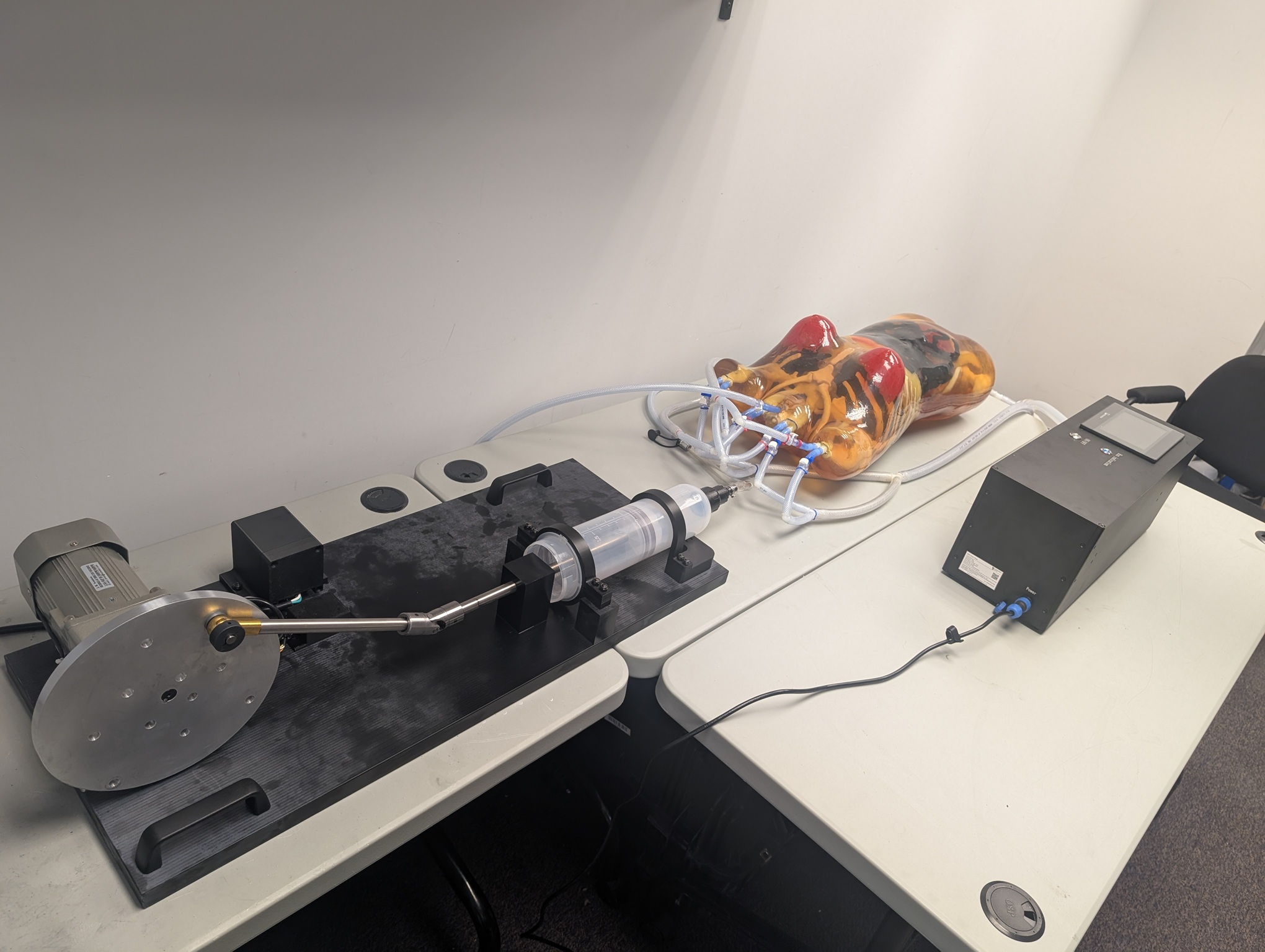

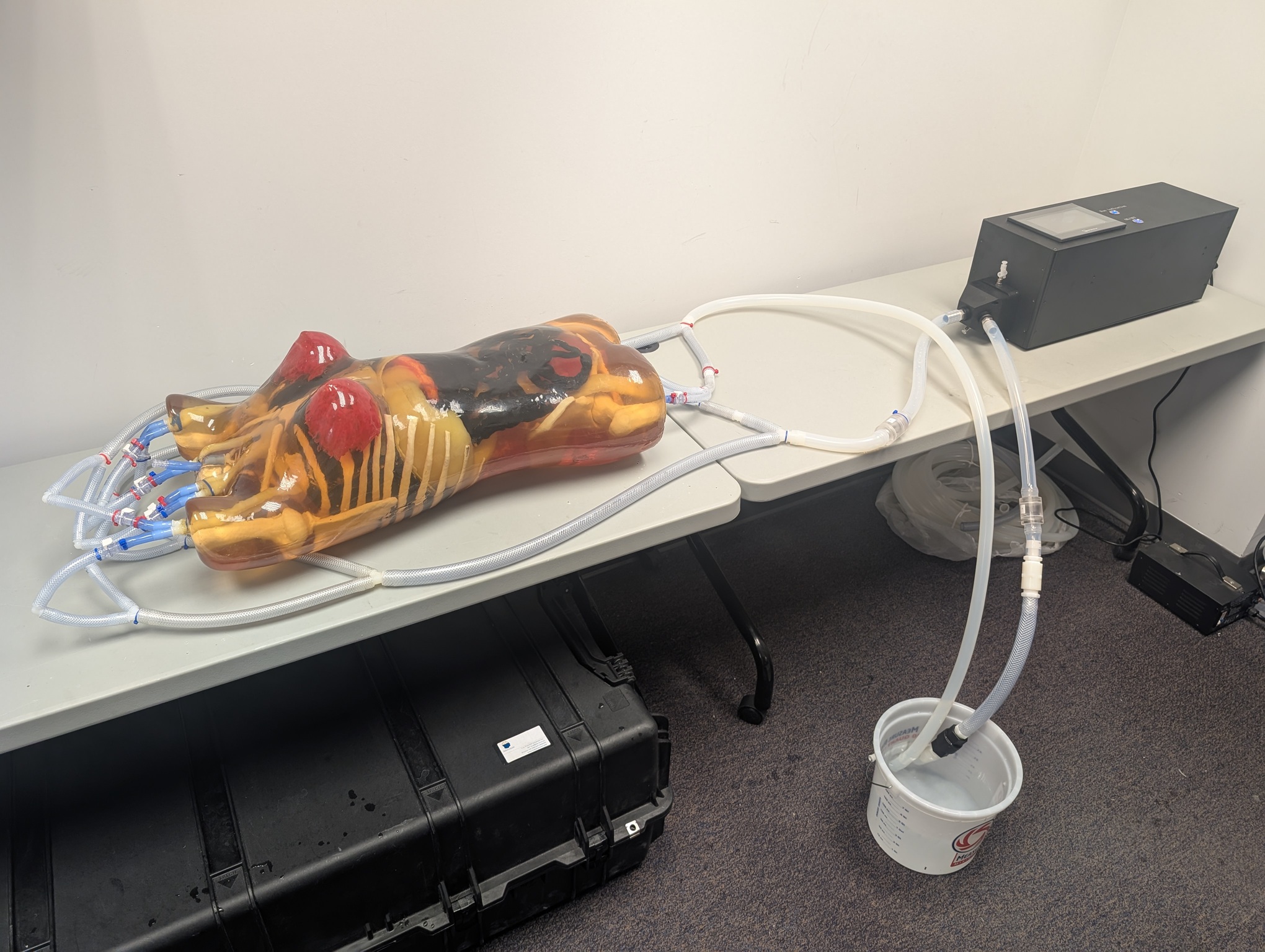

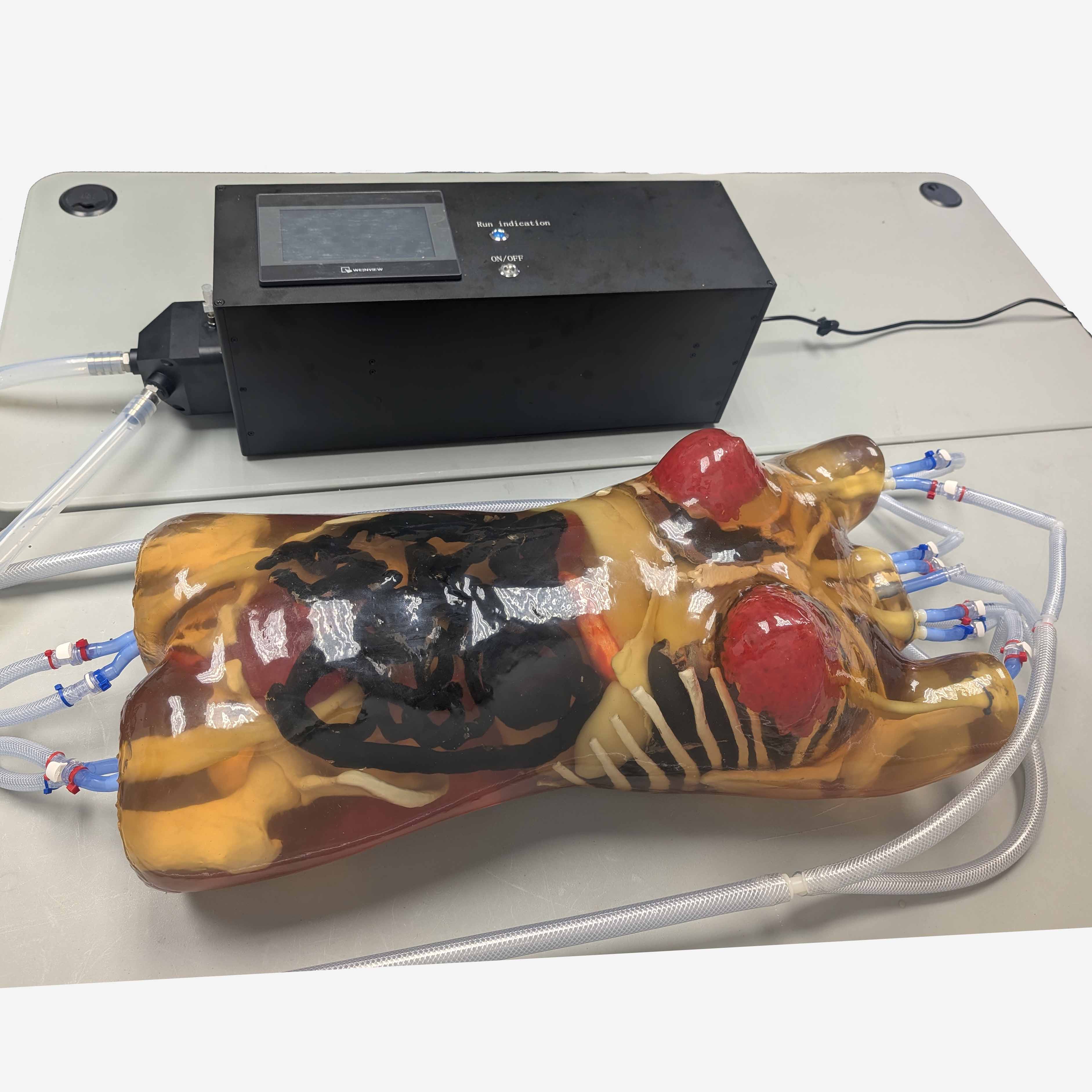

The Adult Female Torso can also be made dynamic with our heart and lung pumps to simulation respiratory motion. If you would like to receive a quote or additional information on these pumps, please contact us at [email protected].
Images:
Videos:

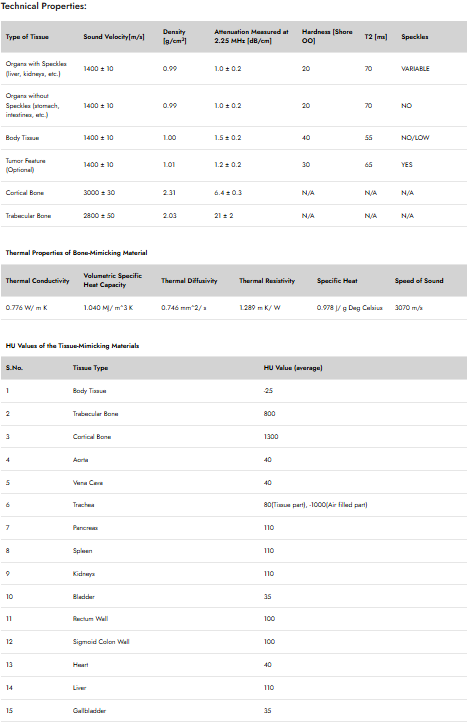

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Cortical Bone | 3000 ± 30 | 2.31 | 6.4 ± 0.3 | N/A | N/A | N/A |
| Trabecular Bone | 2800 ± 50 | 2.03 | 21 ± 2 | N/A | N/A | N/A |
| Thermal Properties of Bone-Mimicking Material | |||||
| Thermal Conductivity | Volumetric Specific Heat Capacity | Thermal Diffusivity | Thermal Resistivity | Specific Heat | Speed of Sound |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
| 2 | Trabecular Bone | 800 |
| 3 | Cortical Bone | 1300 |
| 4 | Aorta | 40 |
| 5 | Vena Cava | 40 |
| 6 | Trachea | 80(Tissue part), -1000(Air filled part) |
| 7 | Pancreas | 110 |
| 8 | Spleen | 110 |
| 9 | Kidneys | 110 |
| 10 | Bladder | 35 |
| 11 | Rectum Wall | 100 |
| 12 | Sigmoid Colon Wall | 100 |
| 13 | Heart | 40 |
| 14 | Liver | 110 |
| 15 | Gallbladder | 35 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
Adult Torso Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Phantom:
- Size: 29 x 14 x 11 Inches (approx.).
- Weight: 80 Lbs (approx.).
Shipment:
- Size with Hard Carry Case: 46 x 36 x 17 Inches (approx.).
- Weight: 136 Lbs (approx.)
Soft tissue and organs: Composition of urethane-based soft resin
Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
