Description

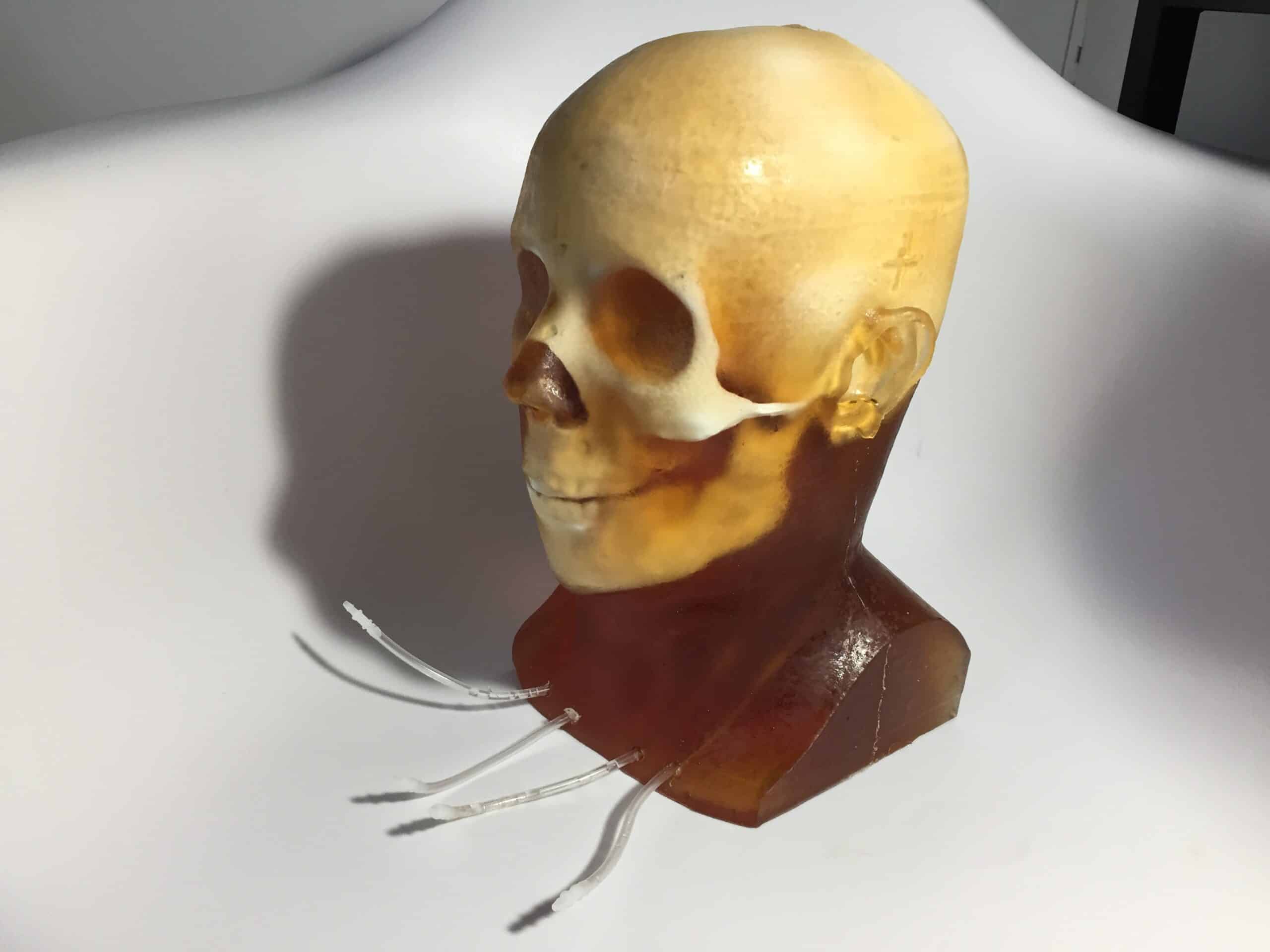

Adult Head Dynamic phantom is designed to be suitable for medical imaging of blood flow underneath the skull. The phantom is designed based on an average anatomy of a human male head and it is made out of realistic soft and hard tissue-mimicking materials suitable for Ultrasound, MRI, and CT applications.
The phantom consists of the following components:
- Anatomically correct realistic skull
- Realistic brain parenchyma (Gray matter)
- Complex brain vessels incorporated Circle of Willis
– One bifurcation
– One stenosis
– Two aneurysms
– Connecting vessels with the neck
– Plastic connectors - Implementing a surrounding, acoustically correct skin-mimicking material to the skull phantom (the phantom will have the appearance of an actual human head)
Design:
-

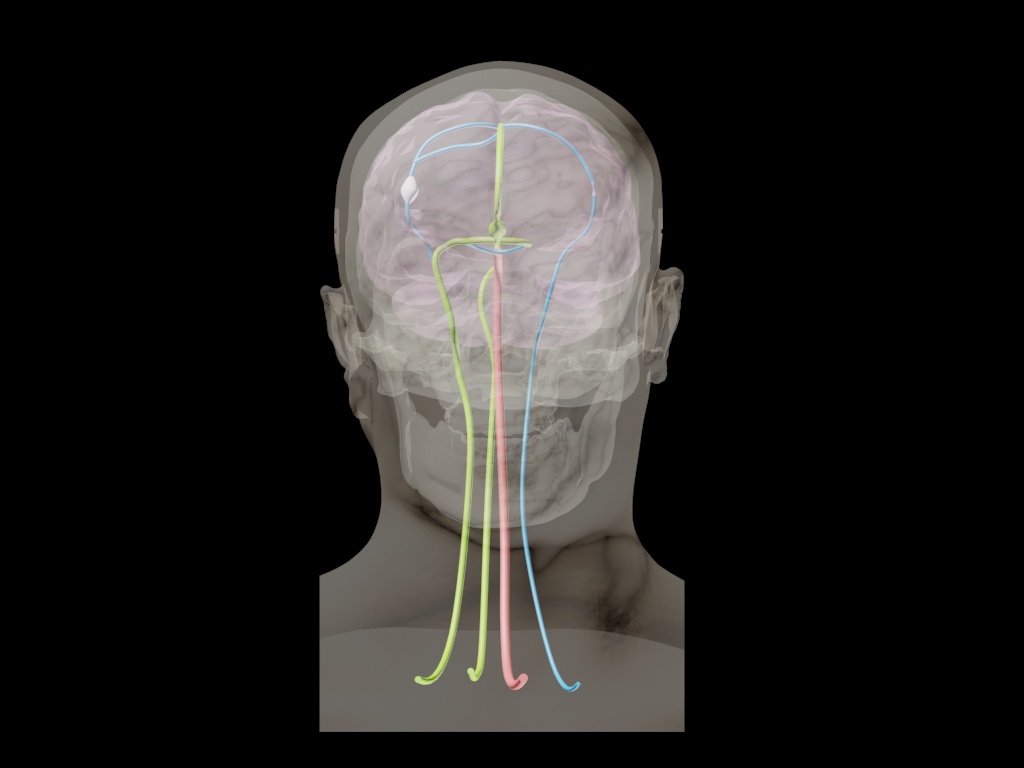

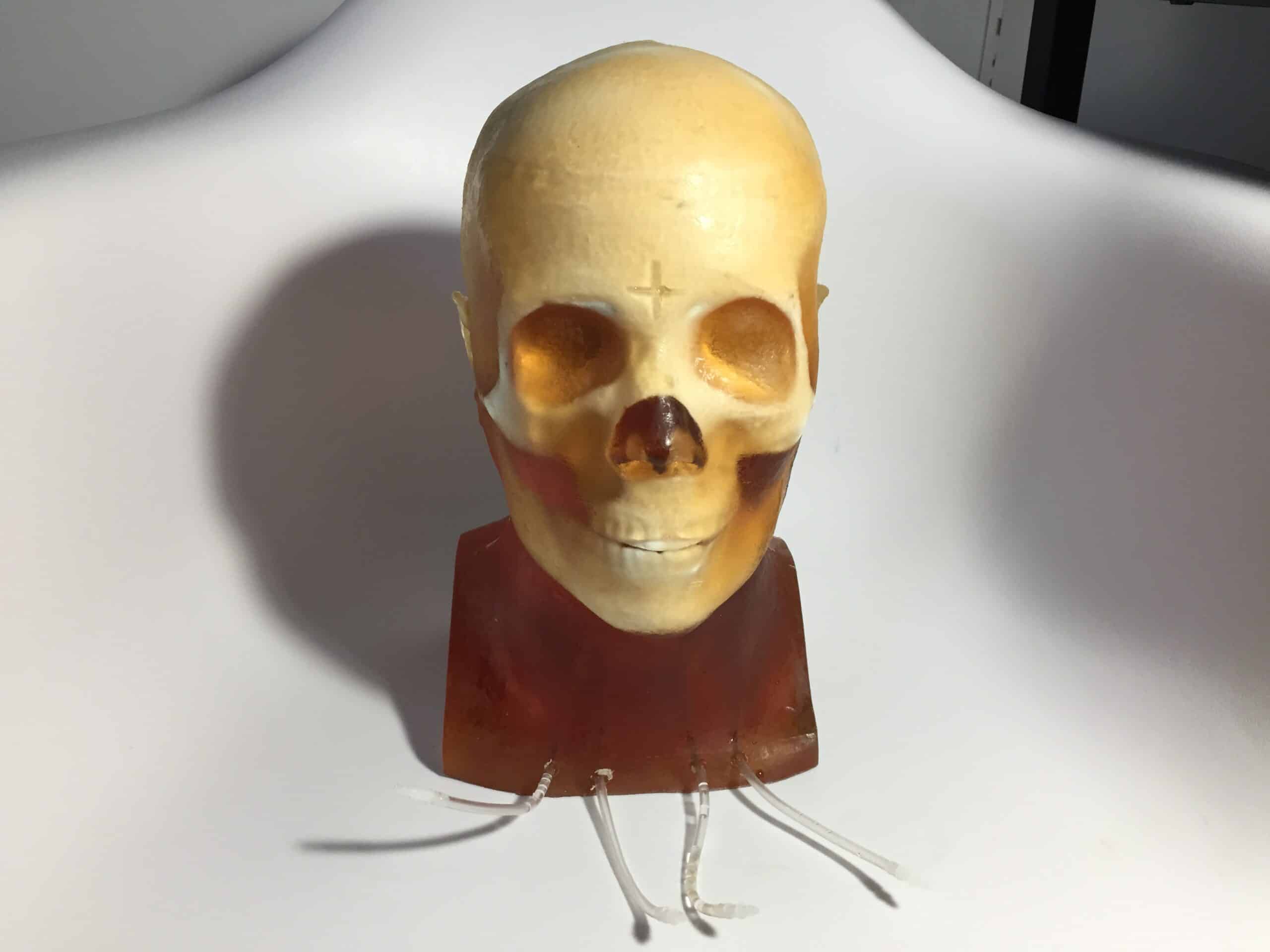

- Front View
-

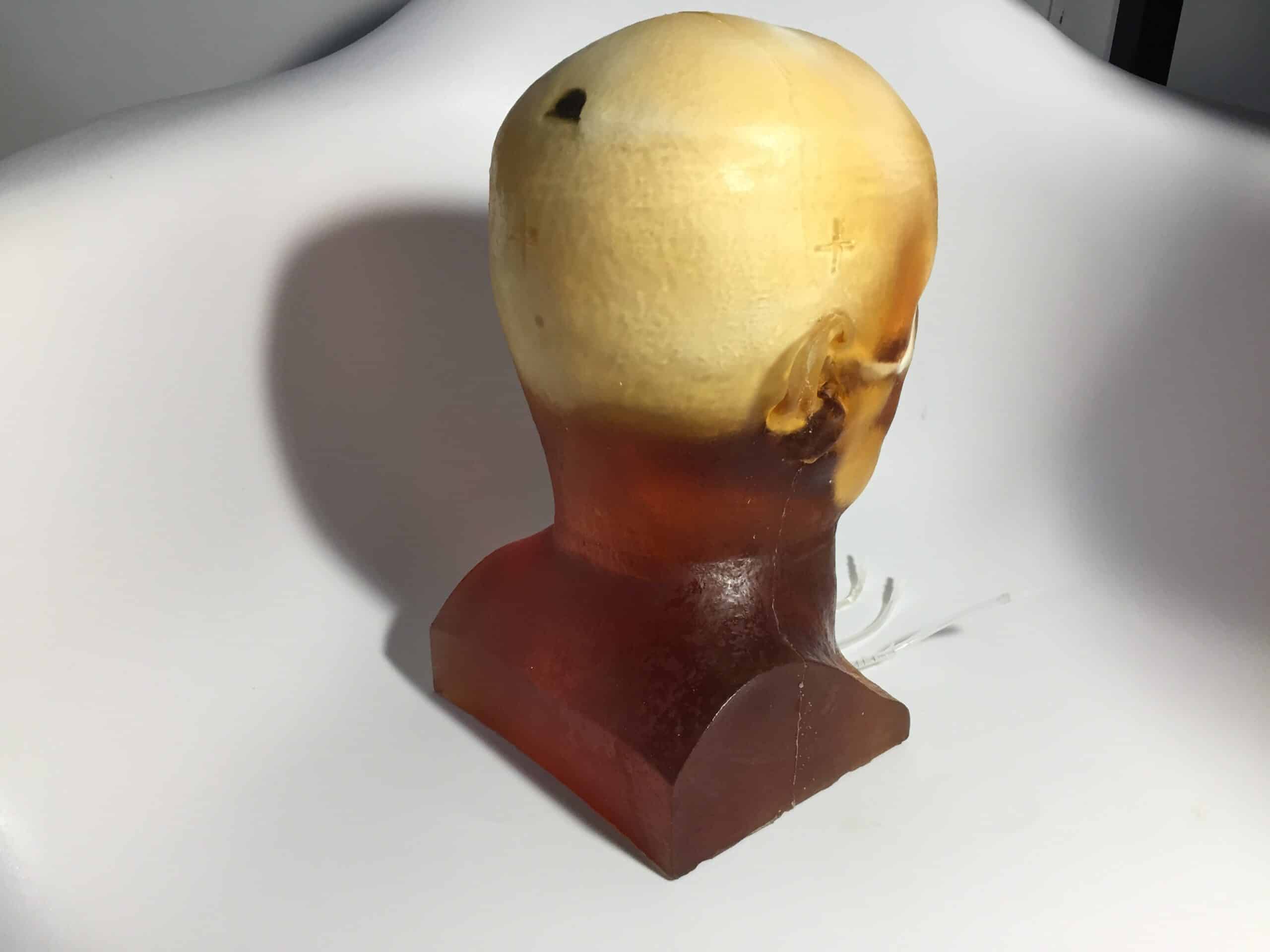

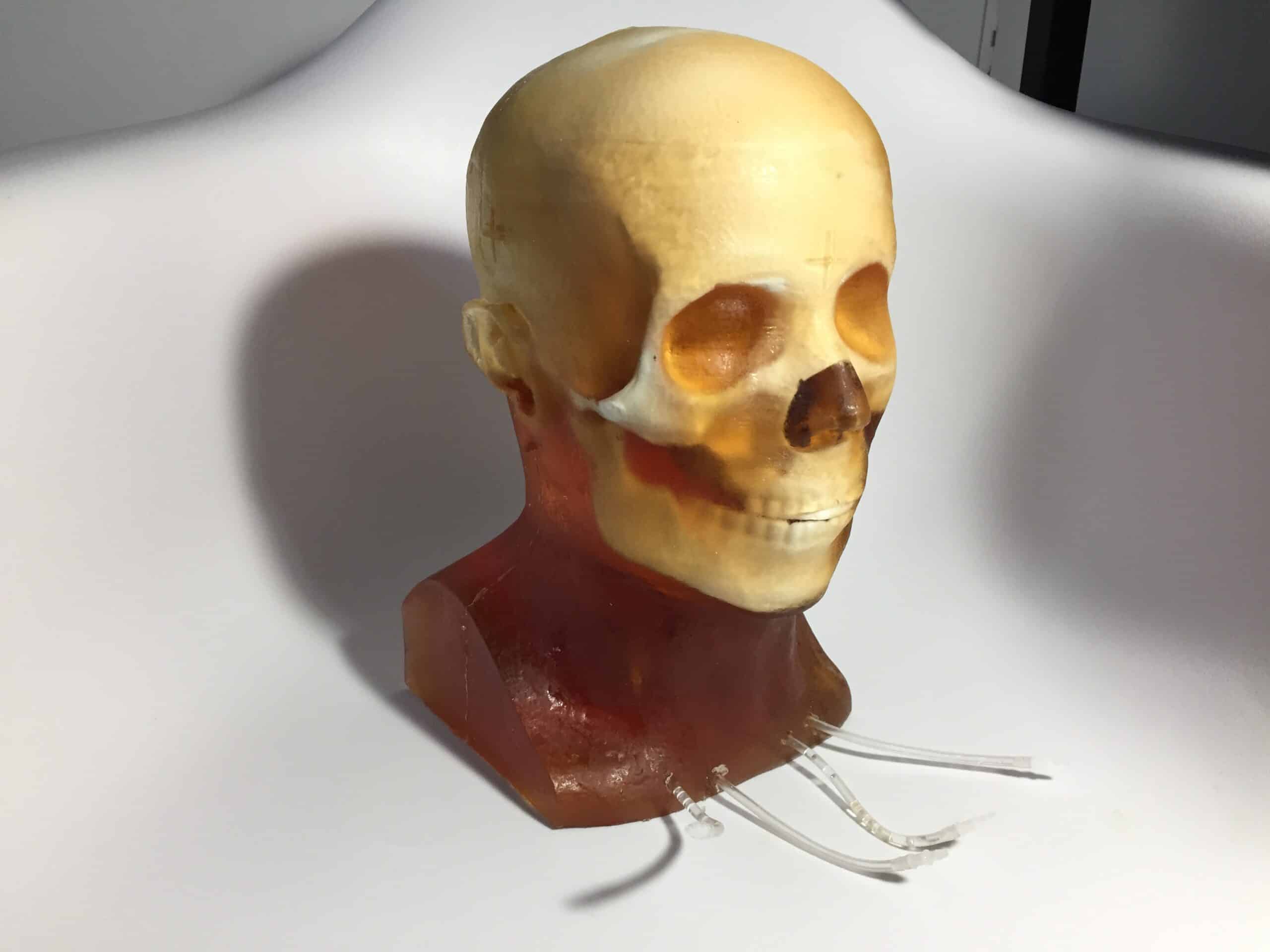

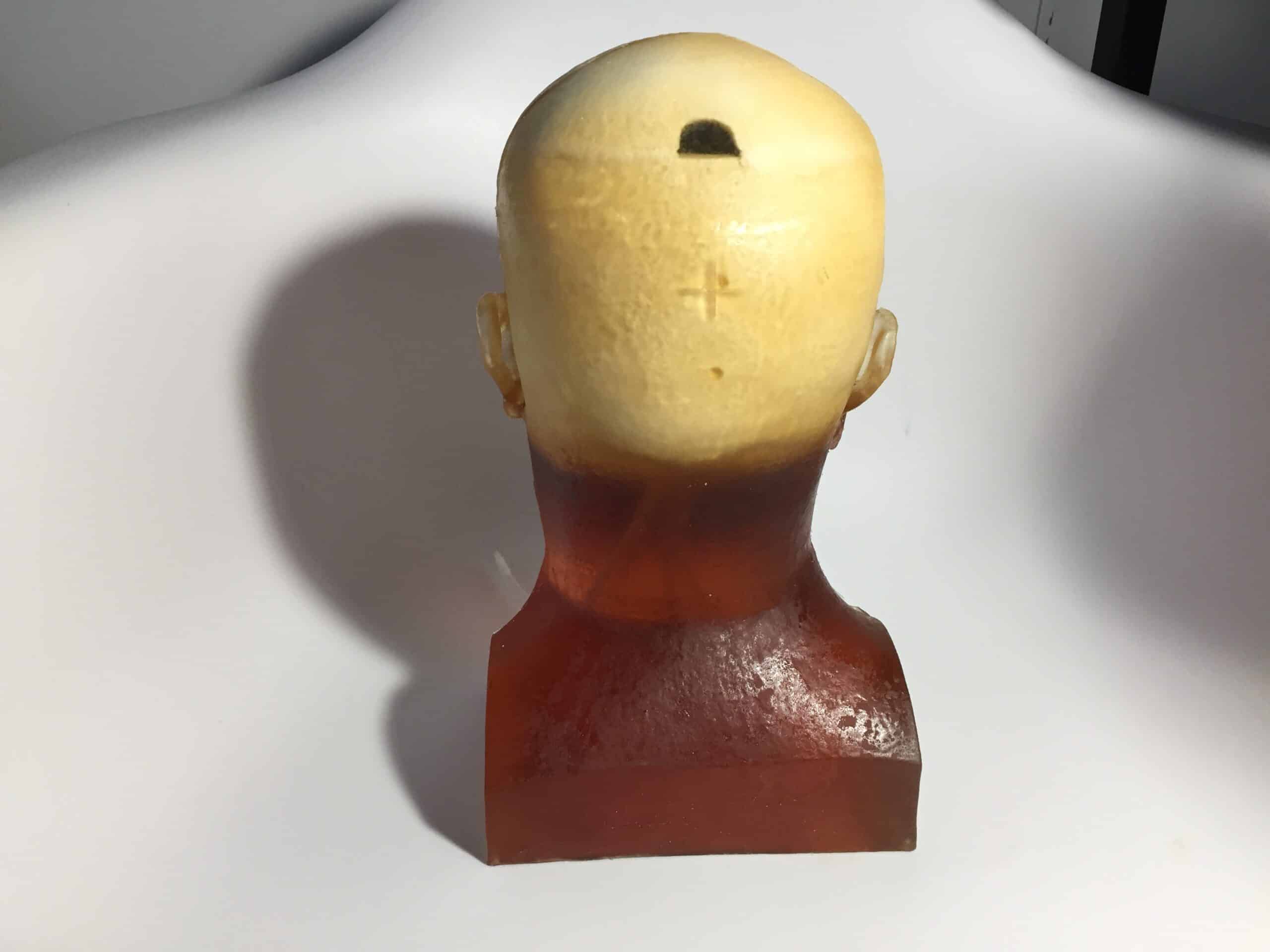

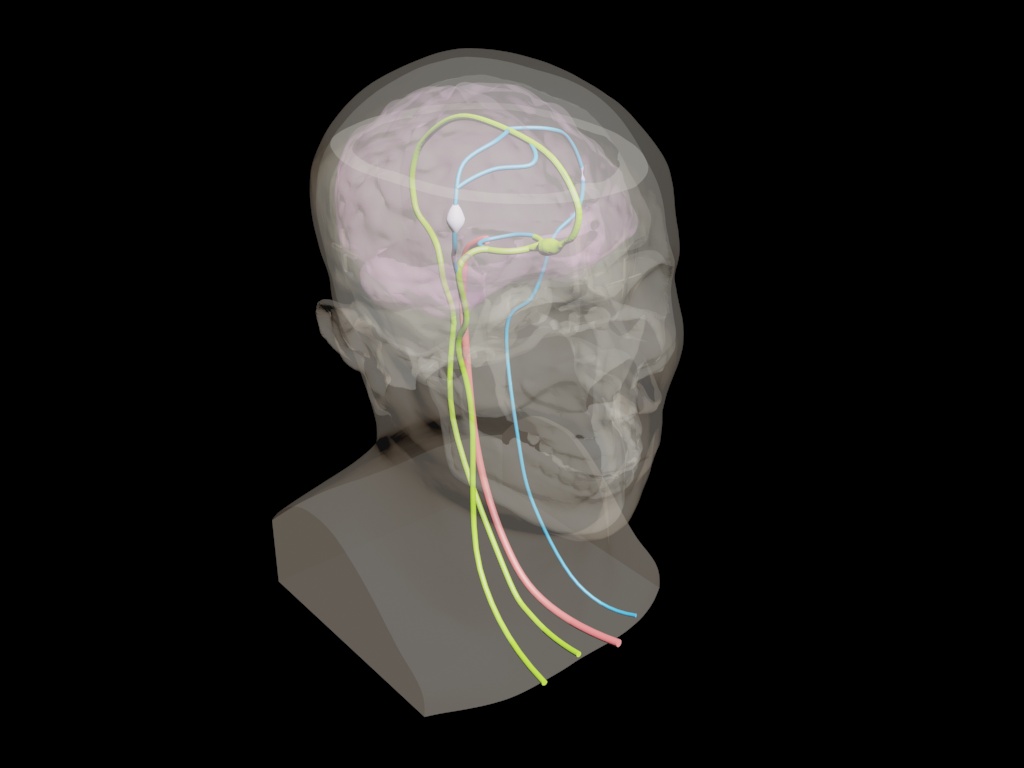

- Perspective View
-

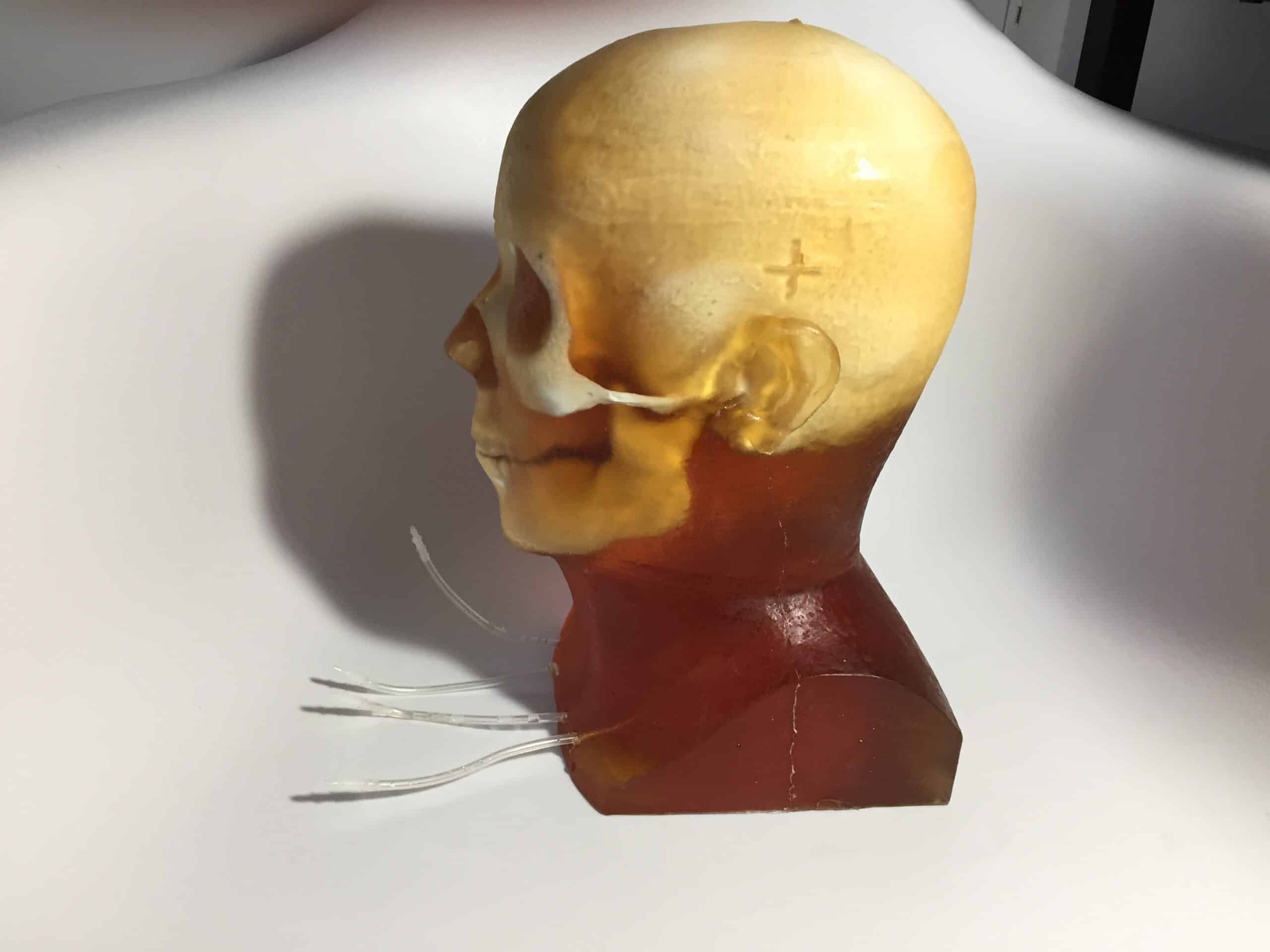

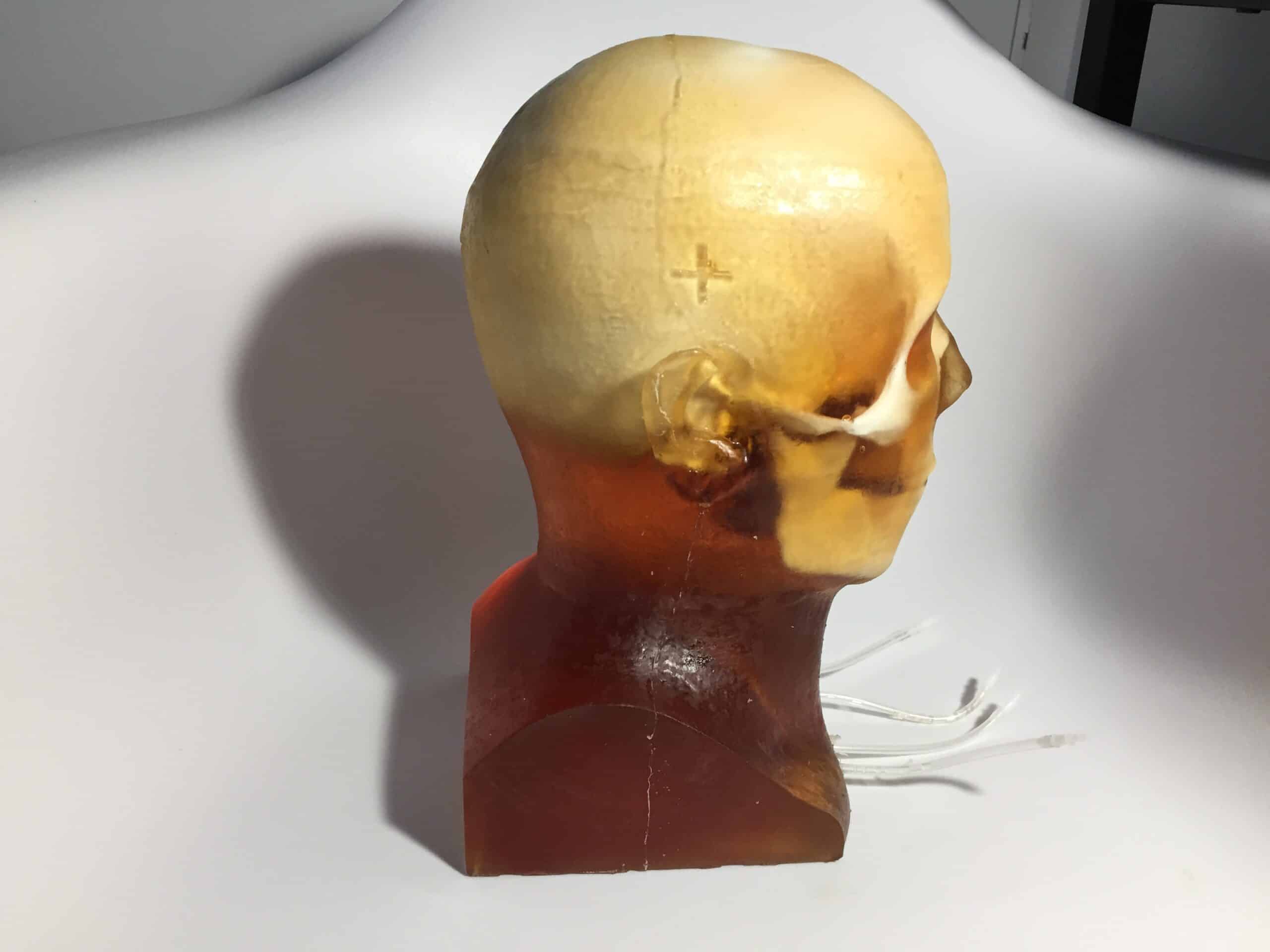

- Lateral View
-

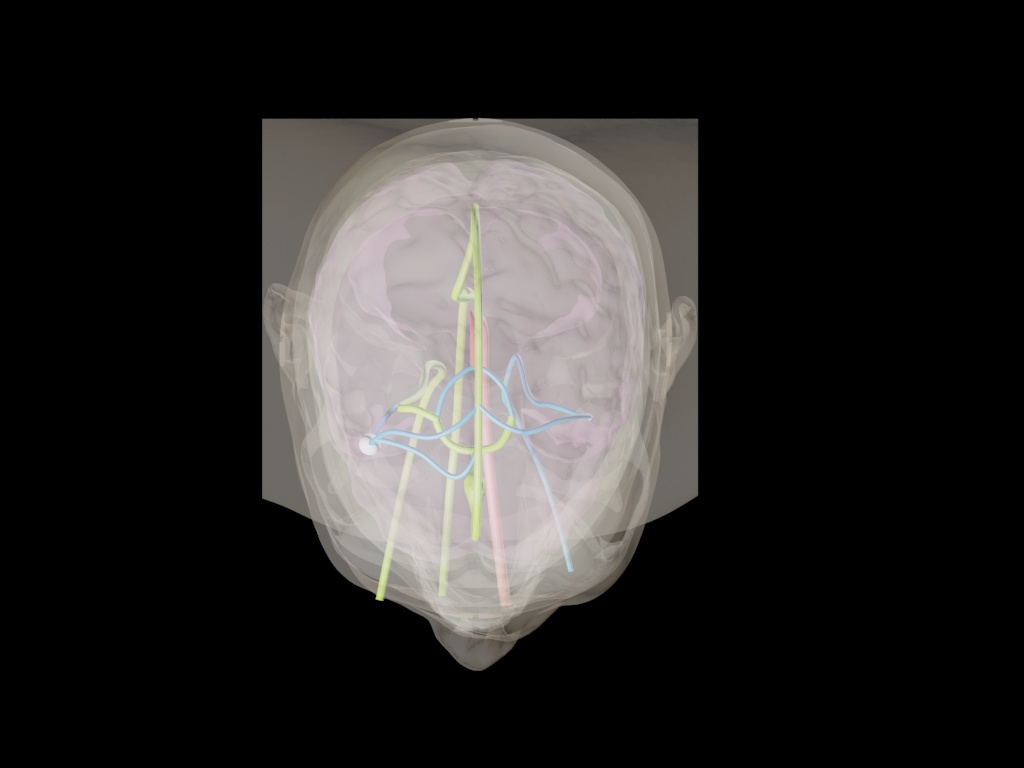

- Top View
X-RAY Scans:
-

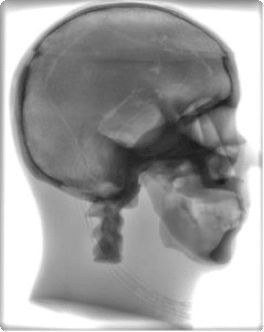

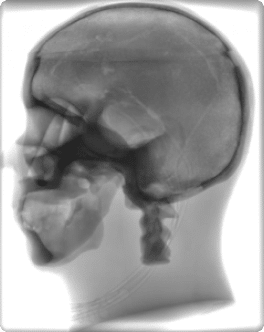

- Head X-RAY LR view – Right
-

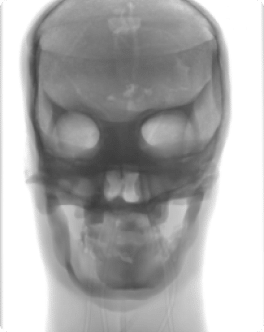

- Head X-RAY AP view
-
- Head X-RAY LR view – Left
The above images are obtained from an earlier version of Dynamic head phantom. These are only meant as a reference to the imaging quality of this product. Radiographs obtained from the original product may differ based on the anatomy and features offered.

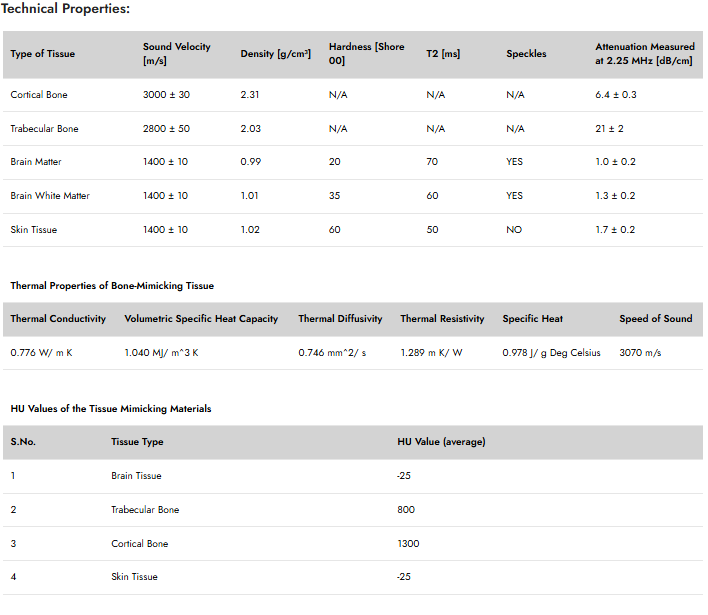

| Technical properties: | ||||||
| Type of the tissue | Sound velocity [m/s] | Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles | Attenuation measured at 2.25 MHz [dB/cm] |
| Cortical bone material used to fabricate the skull bone phantom | 3000 ± 30 | 2.31 | N/A | N/A | N/A | 6.4 ± 0.3 |
| Trabecular bone material used to fabricate the trabecular layer within the bone phantom | 2800 ± 50 | 2.03 | N/A | N/A | N/A | 21 ± 2 |
| Brain matter | 1400 ± 10 | 0.99 | 20 | 70 | YES | 1.0 ± 0.2 |
| Skin tissue | 1400 ± 10 | 1.02 | 60 | 50 | NO | 1.7 ± 0.2 |
| Thermal properties of bone-mimicking tissue: | |||||
| Thermal Conductivity: | Volumetric Specific Heat Capacity: | Thermal Diffusivity: | Thermal Resistivity: | Specific Heat: | Speed of Sound: |
| 0.776 W/ m K | 1.040 MJ/ m^3 K | 0.746 mm^2/ s | 1.289 m K/ W | 0.978 J/ g Deg Celsius | 3070 m/s |
| HU Values of the Tissue Mimicking Materials: |
||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Brain tissue: | -25 |
| 2 | Trabecular bone: | 800 |
| 3 | Cortical bone: | 1300 |

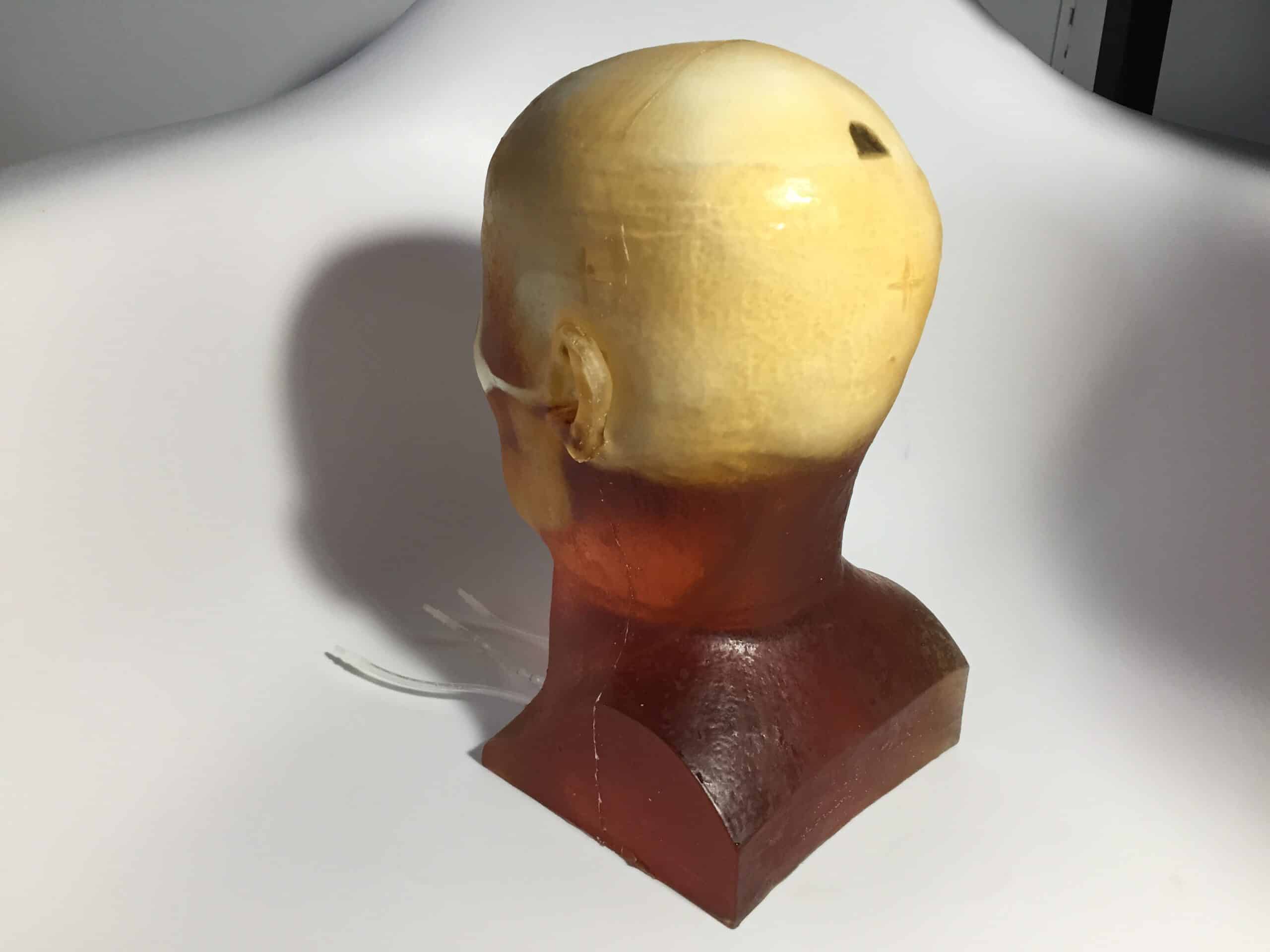

Note: The default appearance of our head phantoms is see-through/amber translucent. Upon special request, we can modify the appearance to skin tone.
Materials used:
- Soft tissue and organs: Composition of urethane base soft resin
- Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
Dimensions and Weight of the Phantom:
- Size: 13 x 9 x 12 Inches, Weight: 17 Lbs (approx.).
Dimensions and Weight of the Shipment:
- Size: 23 x 14 x 10 Inches, Weight: 28.6 Lbs (approx.).
Additional Information:
- Hard carry case: Included
- Order includes User Manual, customer support, and 2 years of product’s limited warranty against manufacturing defects.
- HS Code: 9023.00.0000
- Country of manufacturing: Canada
- Shipping terms: EXW
- Taxes/Duties: Price does not include Taxes and Duties (if any)
