Description

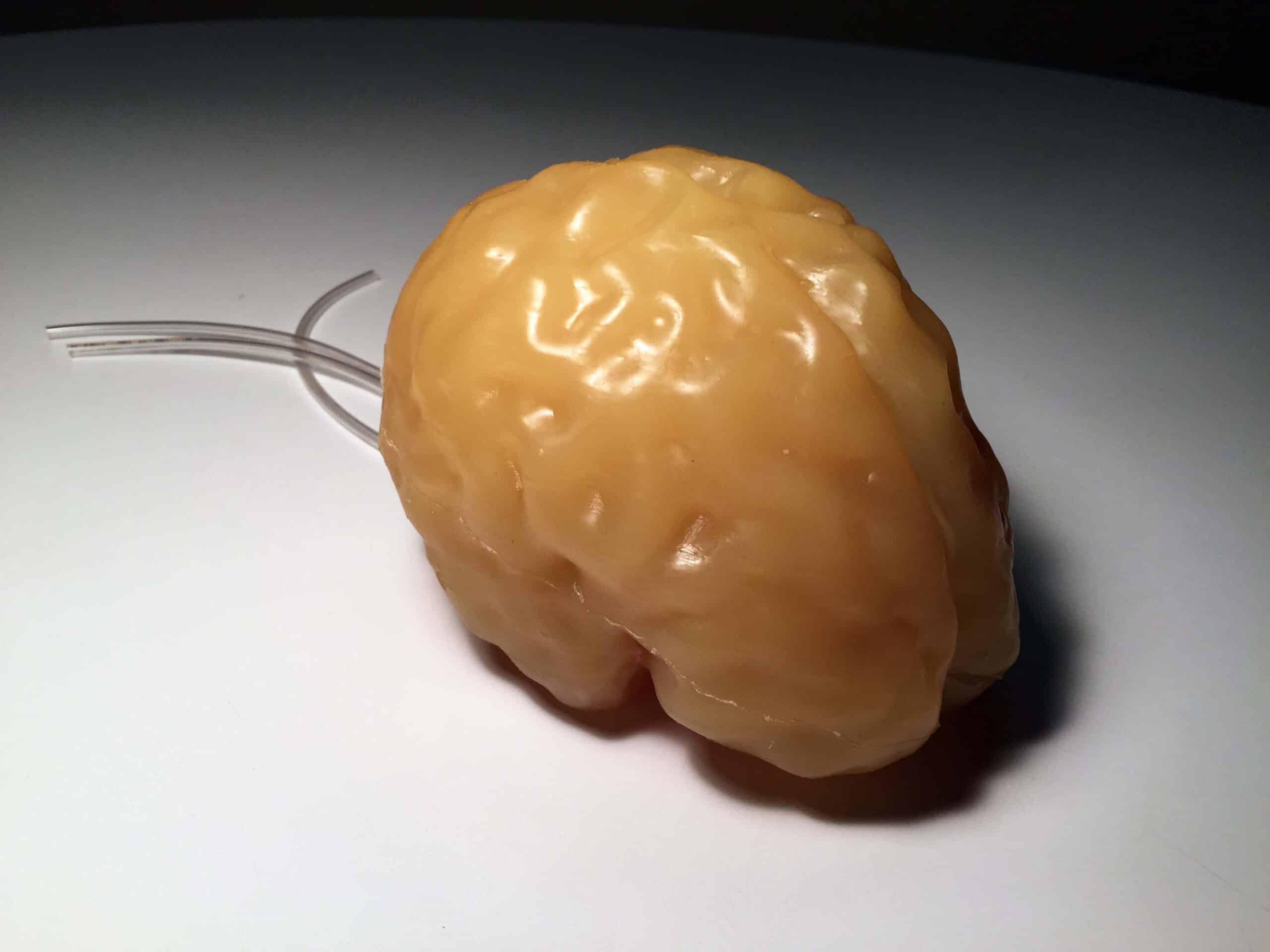

Anatomically Correct Complex Brain Phantom
The phantom is designed based on an average brain and it is made out of realistic tissue mimicking materials suitable for Ultrasound, MRI and CT applications. The Phantom has the following features:
- Geometry & dimensions of an average human brain
- White & Grey brain matter
- Brain ventricles
- Brain tumor
- Blood vessels with 2mm inner diameter and one bifurcation
- Falx Cerebri
Upon special request, the phantom features and the properties of the tissue-mimicking materials can be customized based on the requirements of any particular project.

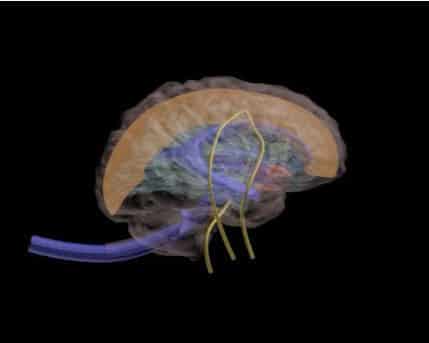

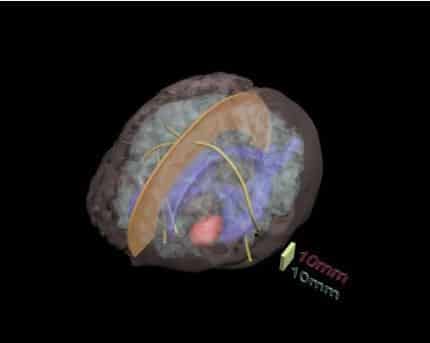

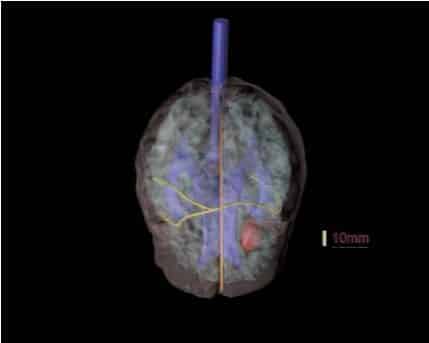

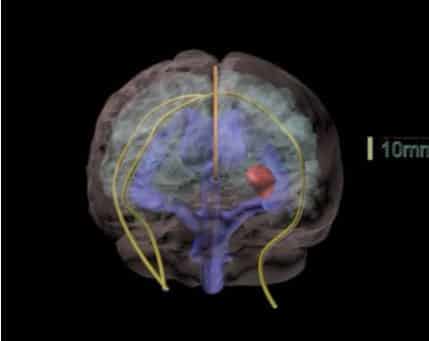

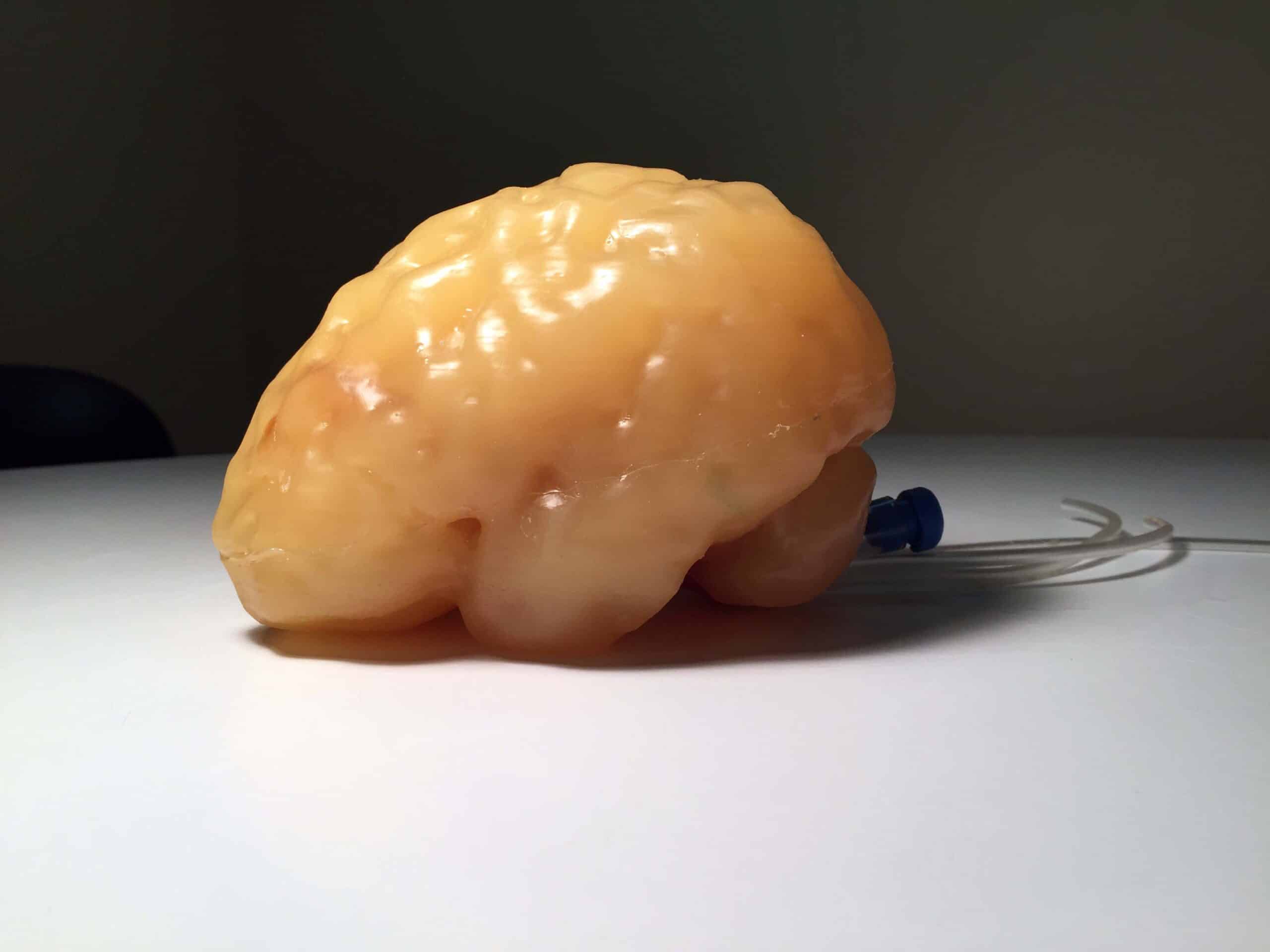

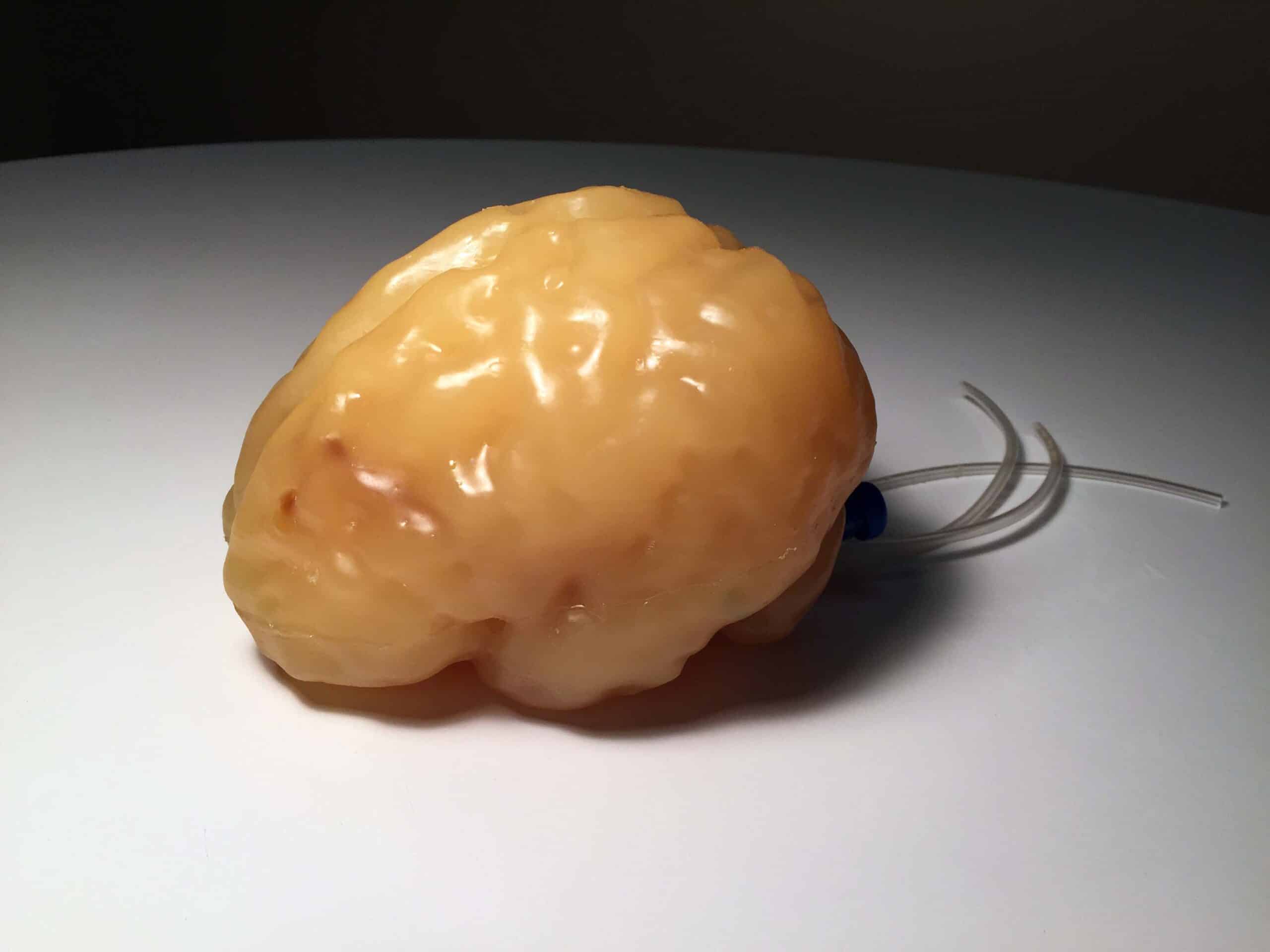

Design:

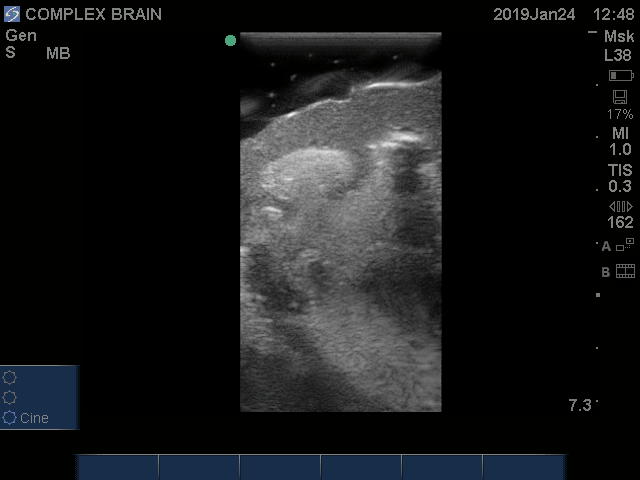

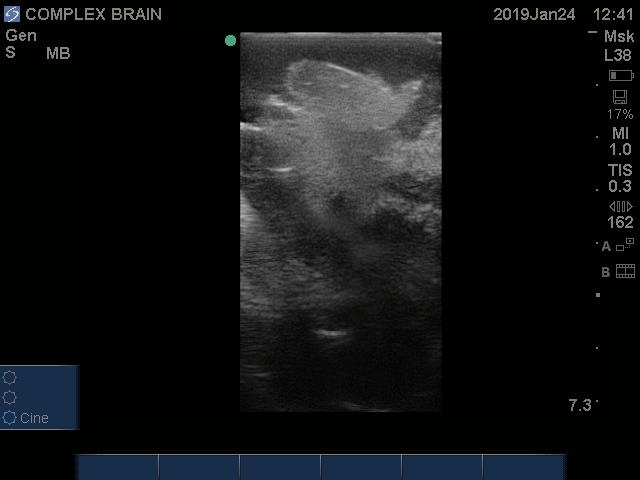

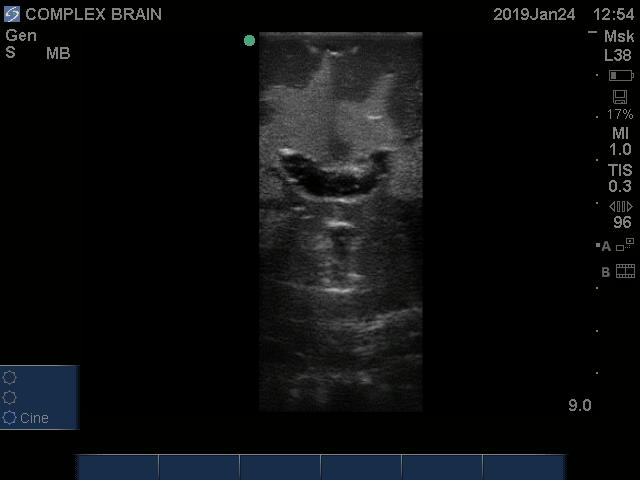

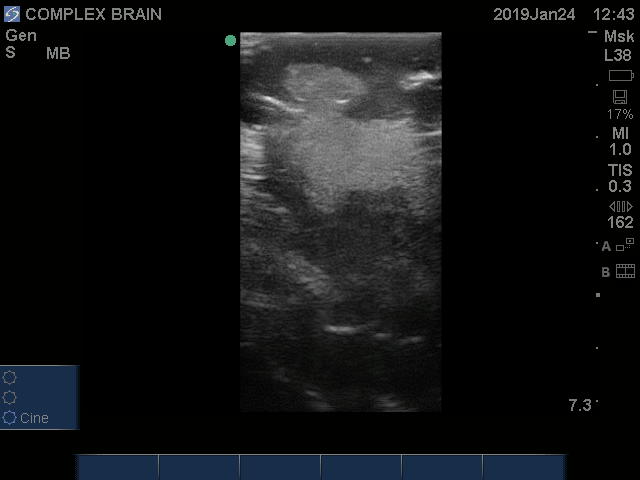

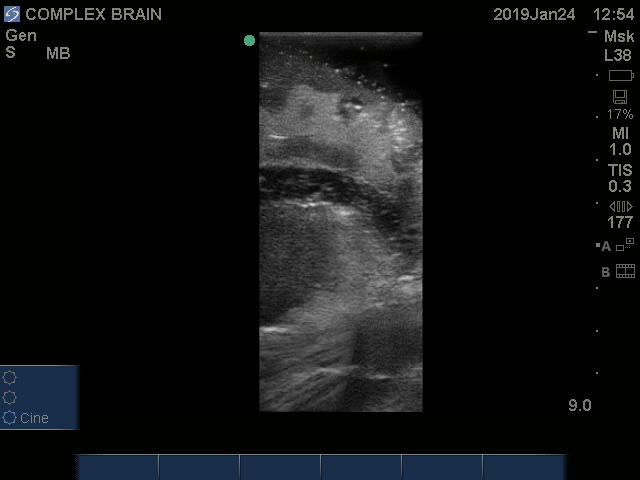

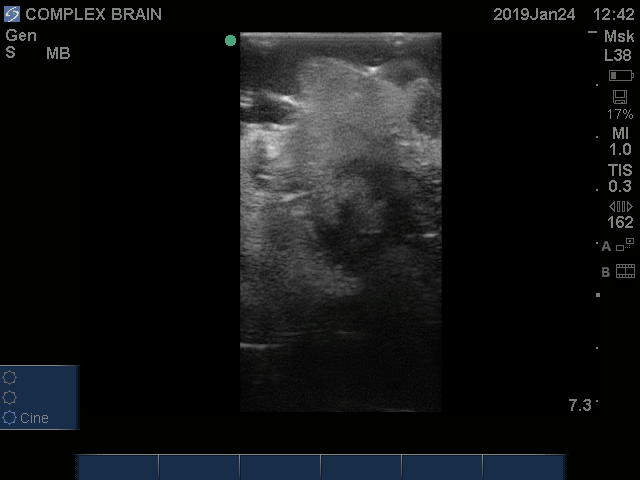

Ultrasound Scans:

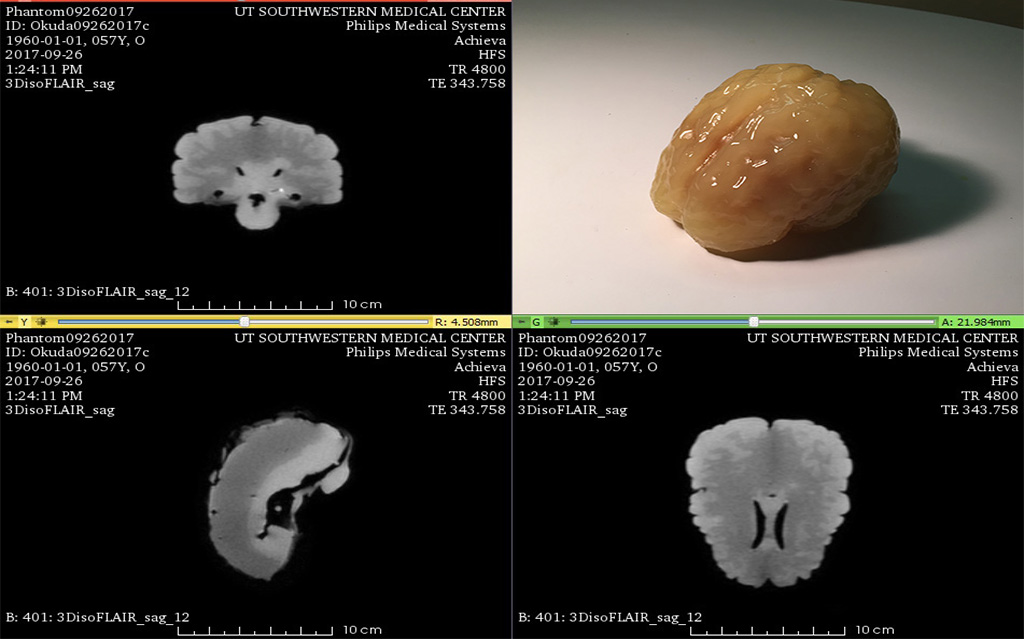

MRI Scan:
-
- MRI FLAIR
ADULT COMPLEX BRAIN PHANTOM PROPERTIES |
||||||
Type of the tissues: |
Sound velocity [m/s] |
Density [g/cm³] |
Hardness [Shore 00] |
T2 [ms] |
Speckles |
Attenuation measured at 2.25 MHz [dB/cm] |
Brain grey matter |
1400 ± 10 |
0.99 |
20 |
70 |
VARIABLE |
1.0 ± 0.2 |
Brain white matter |
1400 ± 10 |
1.01 |
35 |
60 |
YES |
1.3 ± 0.2 |
Falx cerebri |
1400 ± 10 |
1.01 |
60 |
50 |
YES |
1.7 ± 0.2 |
Tumor feature |
1400 ± 10 |
1.00 |
30 |
65 |
YES |
1.2 ± 0.2 |
