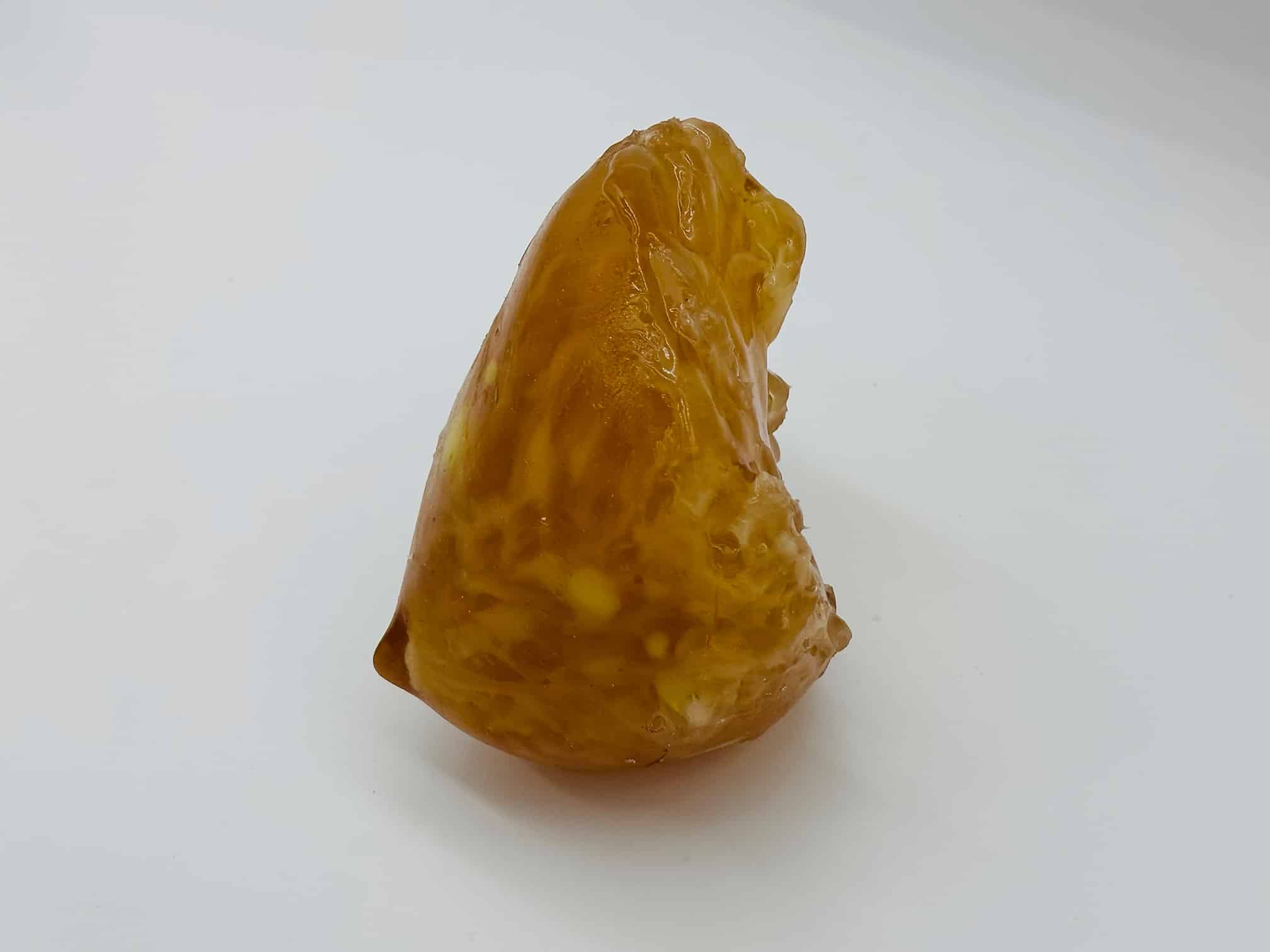

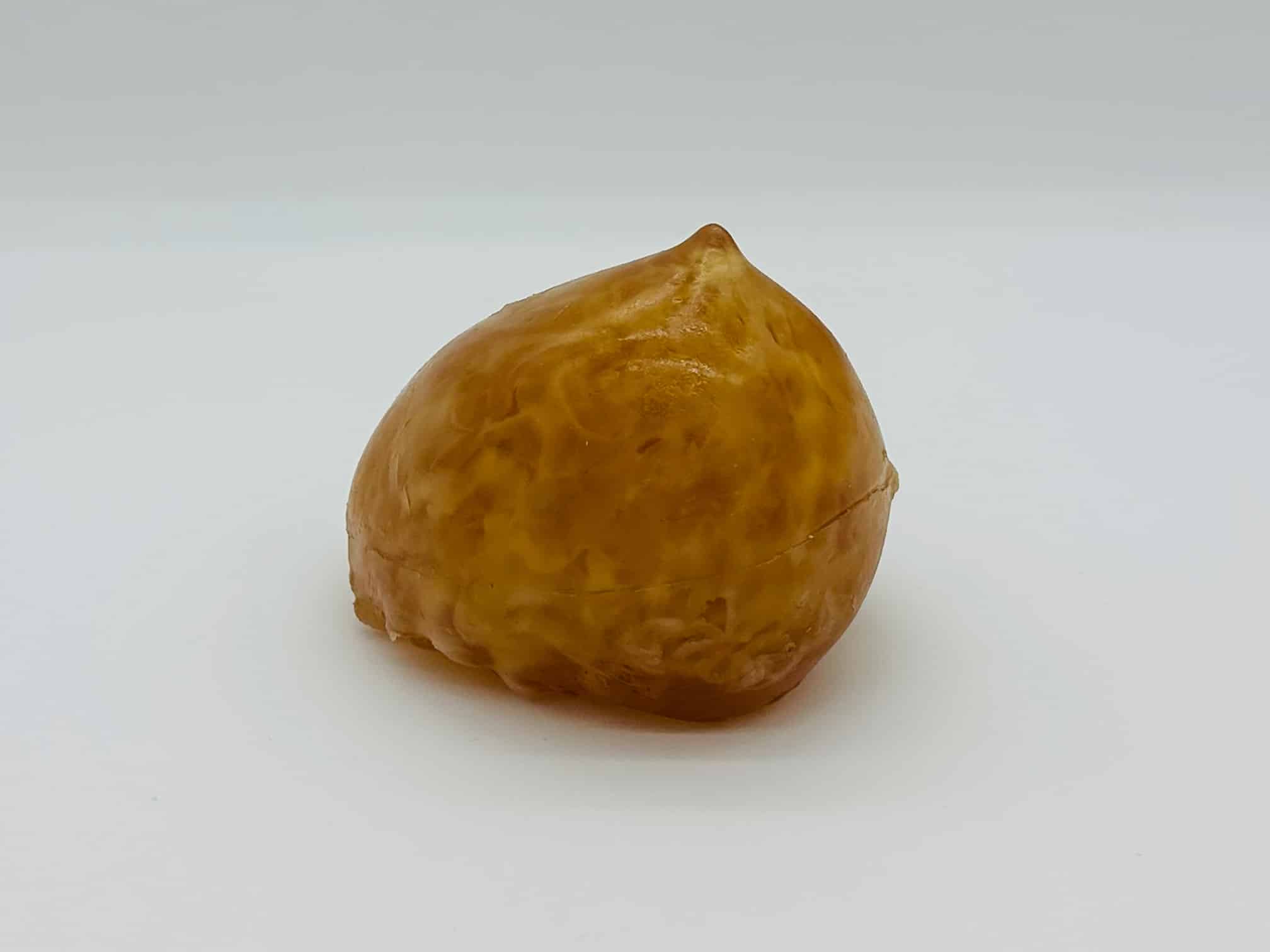

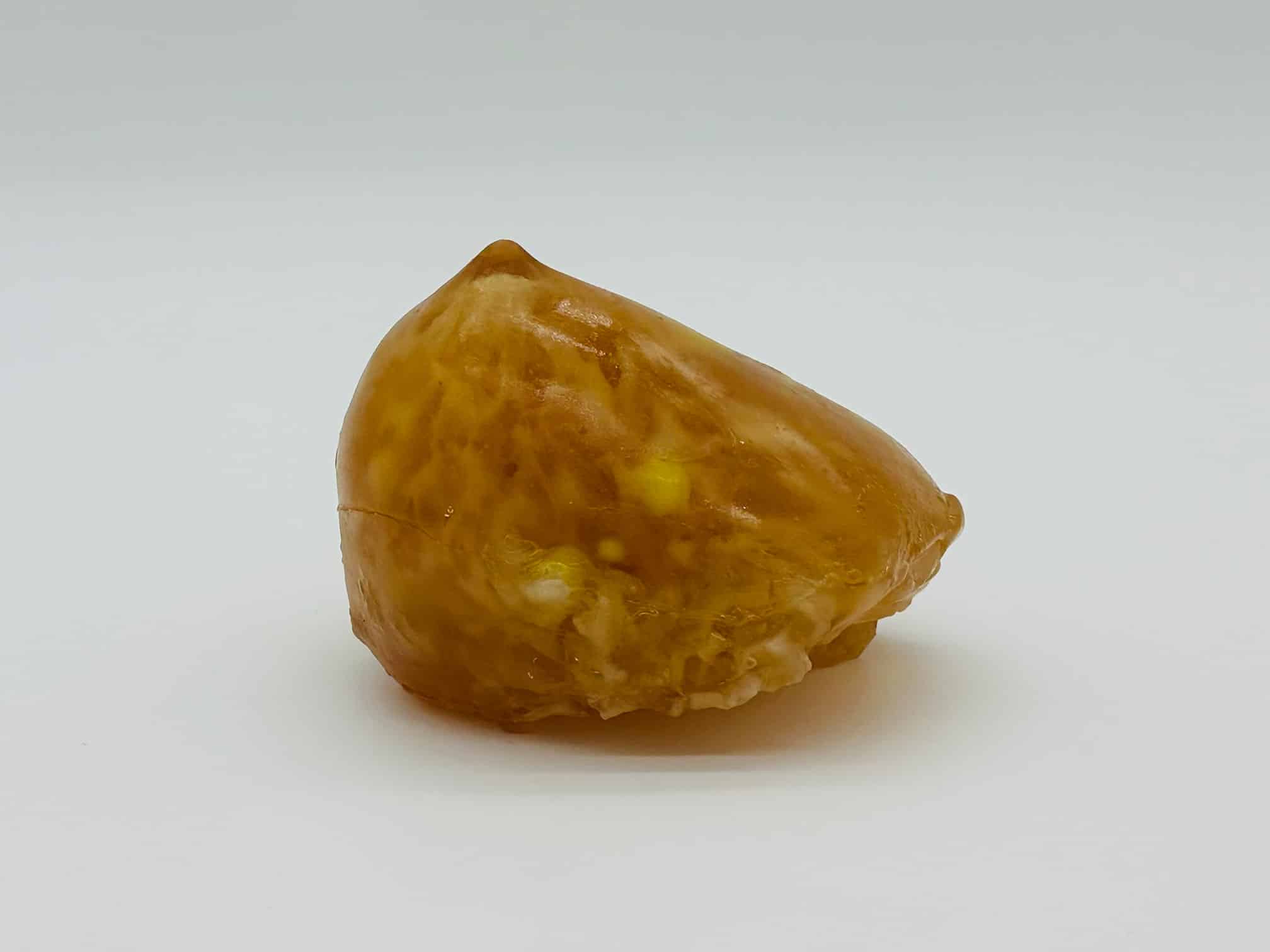

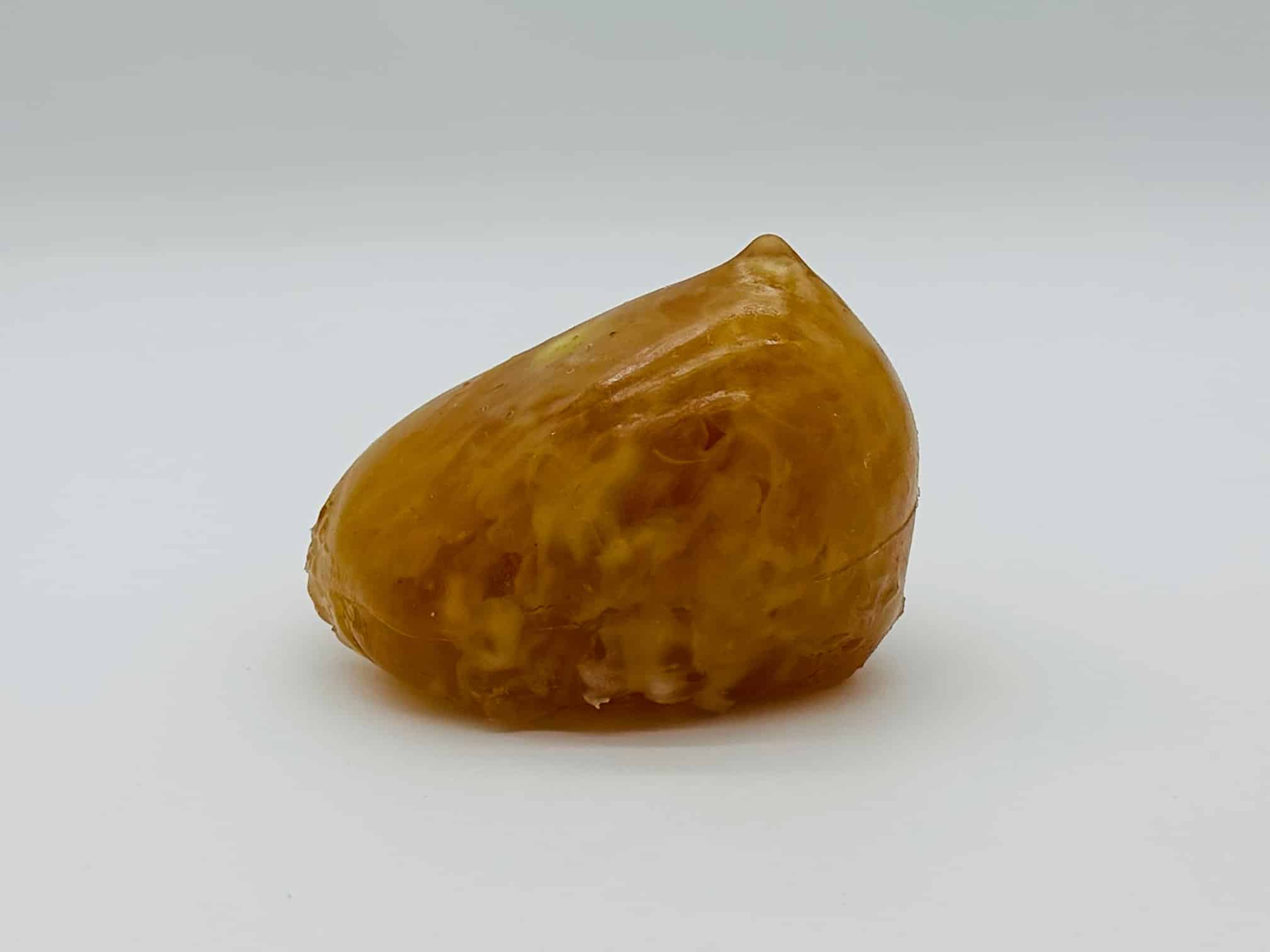

The Adult Breast (Simple) Phantom for X-Ray CT and Ultrasound is a realistic phantom. Its design is based on the average female anatomy of a human breast. This phantom is compatible with X-Ray CT and Ultrasound. This makes it an ideal tool to study, research, test, & calibrate medical imaging devices.
Â
This breast phantom has 50% standard Glandular composition and 50% fat tissue by volume.Â

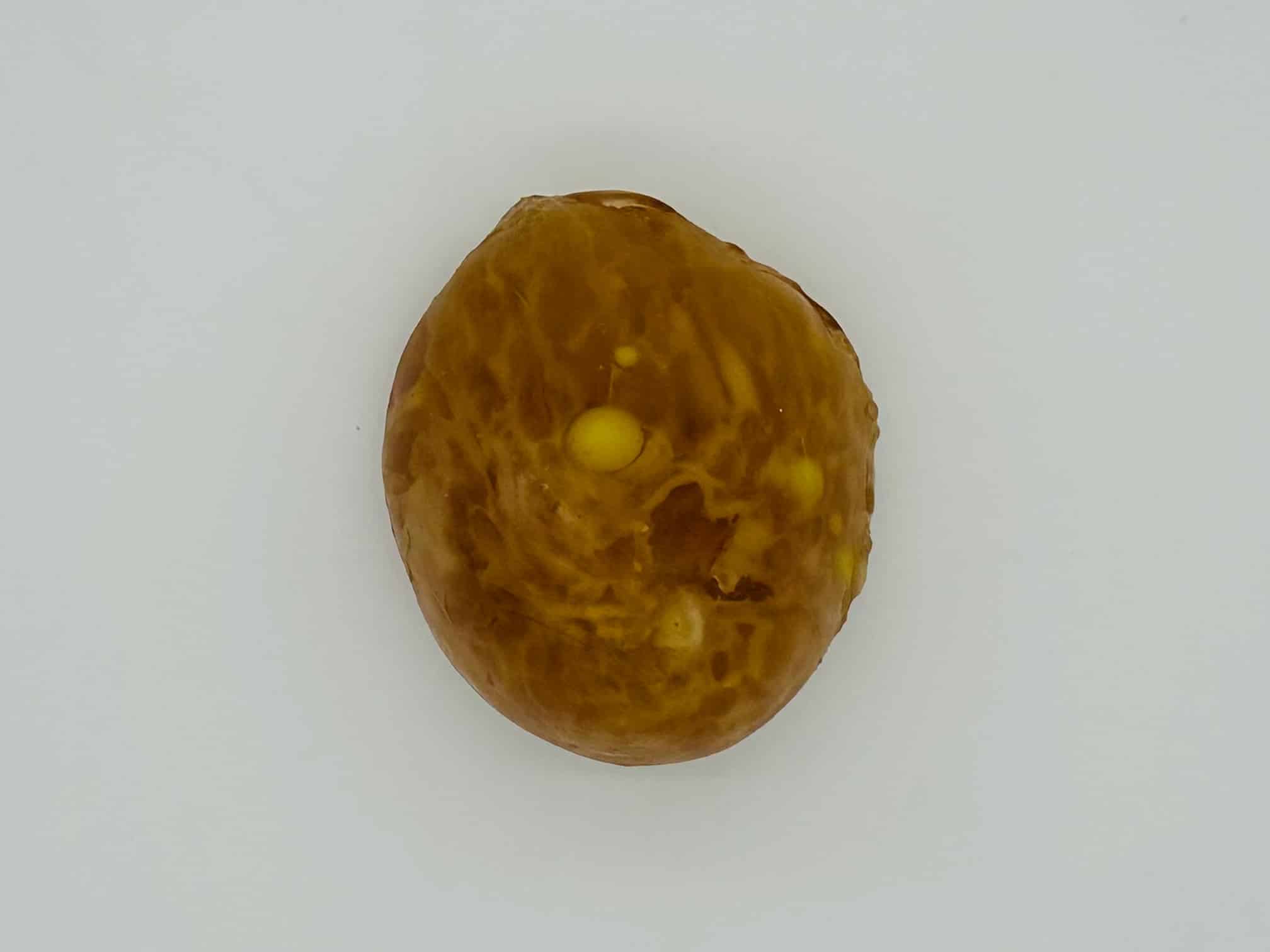

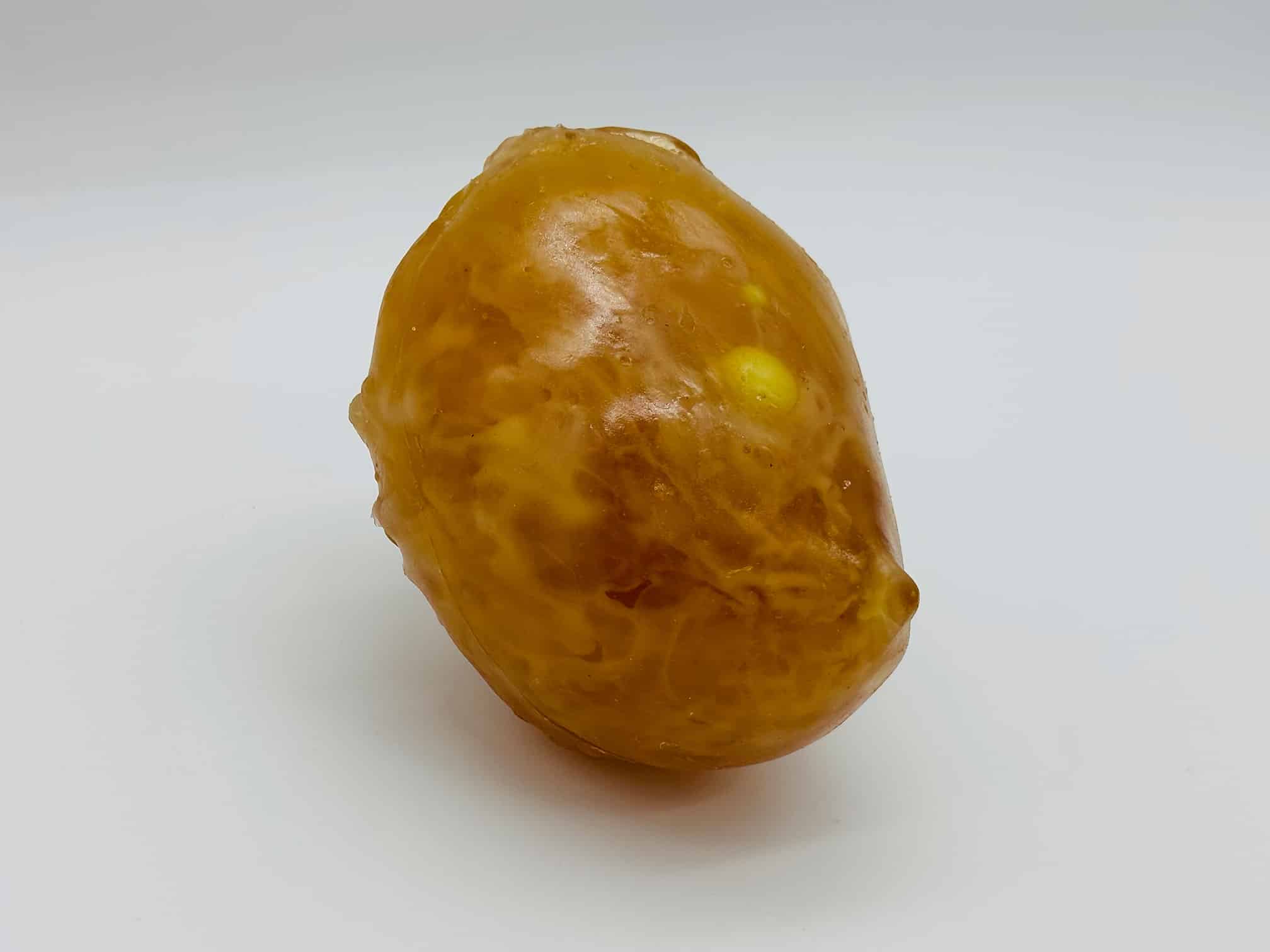

The embedded lesion that has an attenuation coefficient similar to that of the glandular breast but with a higher electron density. This makes the lesion difficult to detect on an X-Ray yet easy to detect on Ultrasound. This can be customized to fit your requirements.Â
Â

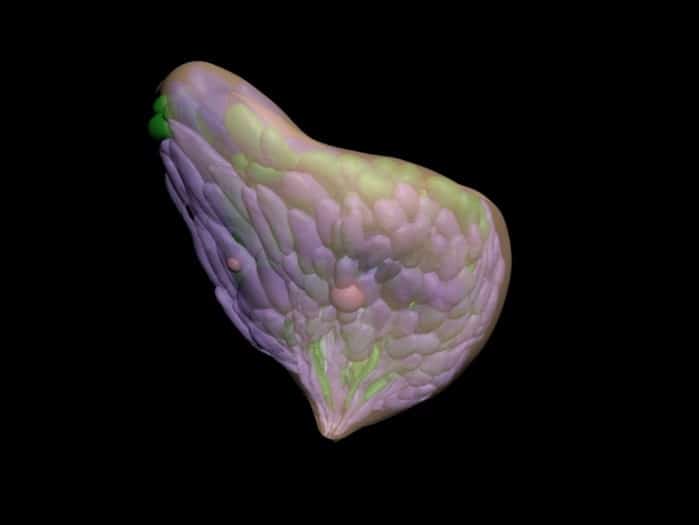

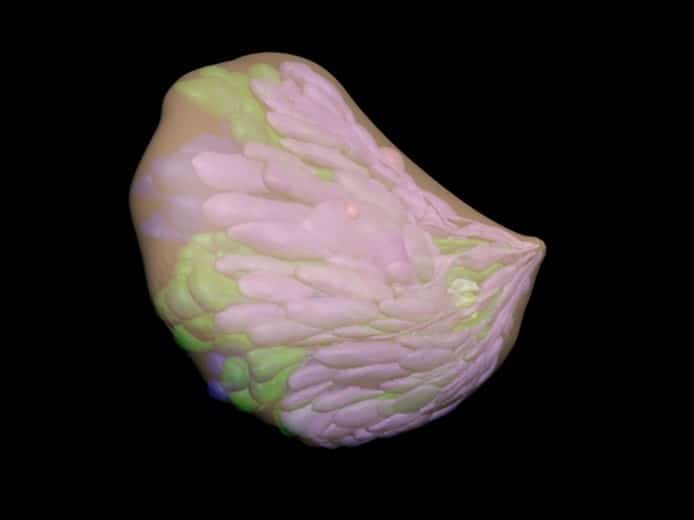

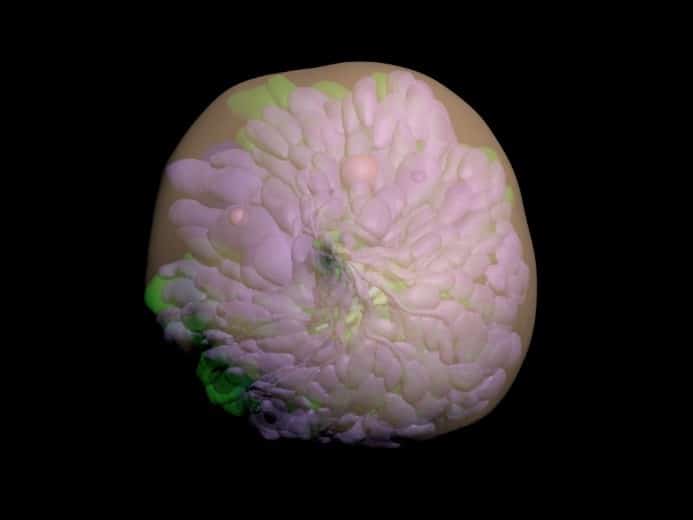

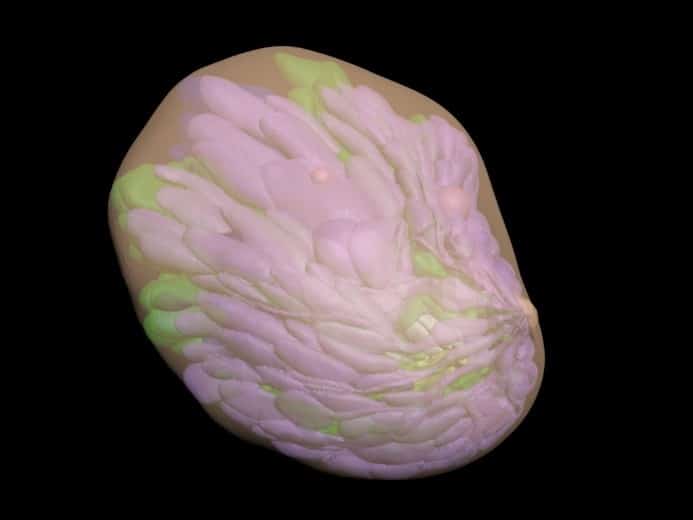

Body Tissue Mimicking Material
Mammary Fat Tissues
Mammary Gland Tissues
Radiolucent Lesion
Scan Results:
Coming Soon...
In the meantime, please refer to our Radiographs page for imaging quality of our phantoms.Â

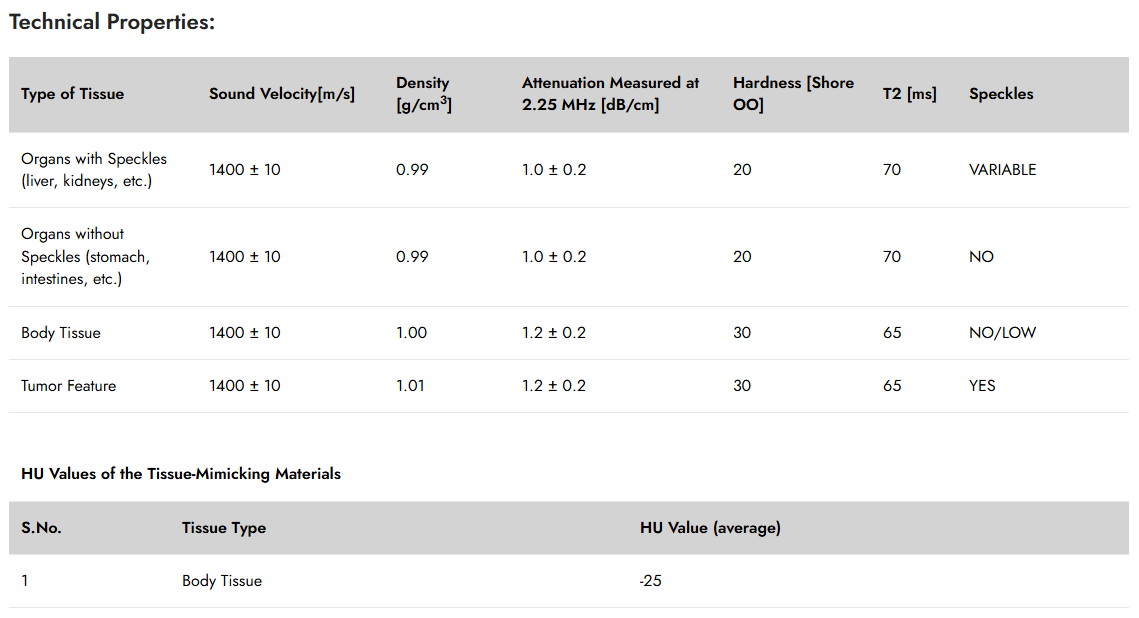

Technical Properties:
| Type of Tissue | Sound Velocity[m/s] | Density [g/cm3] | Attenuation Measured at 2.25 MHz [dB/cm] | Hardness [Shore OO] | T2 [ms] | Speckles |
| Organs with Speckles (liver, kidneys, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | VARIABLE |
| Organs without Speckles (stomach, intestines, etc.) | 1400 ± 10 | 0.99 | 1.0 ± 0.2 | 20 | 70 | NO |
| Body Tissue | 1400 ± 10 | 1.00 | 1.2 ± 0.2 | 30 | 65 | NO/LOW |
| Tumor Feature | 1400 ± 10 | 1.01 | 1.2 ± 0.2 | 30 | 65 | YES |
| HU Values of the Tissue-Mimicking Materials | ||
| S.No. | Tissue Type | HU Value (average) |
| 1 | Body Tissue | -25 |
View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.
Adult Breast Phantom
User Manual/Assembly Instructions
2-Year Warranty & Unlimited Customer Service
Hard Carry Case
Phantom:
- Size: 4.7 x 4.7 x 4.7 Inches
- Weight: 1.8 Lbs (approx.).
Shipment:
- Size: 12 x 10 x 10 Inches
- Weight: 6 Lbs (approx.)
- Soft tissue and organs: Composition of urethane-based soft resin
