HomeX-Ray CT, MRI Adult Pelvis for X-Ray CT, MRI
Pelvis Phantom for X-Ray, CT, MRI, Ultrasound
Pelvis Phantom for X-Ray, CT, MRI, Ultrasound
Pelvis Phantom for X-Ray, CT, MRI, Ultrasound
Pelvis Phantom for X-Ray, CT, MRI, Ultrasound
Click to enlarge

Adult Pelvis for X-Ray CT, MRI

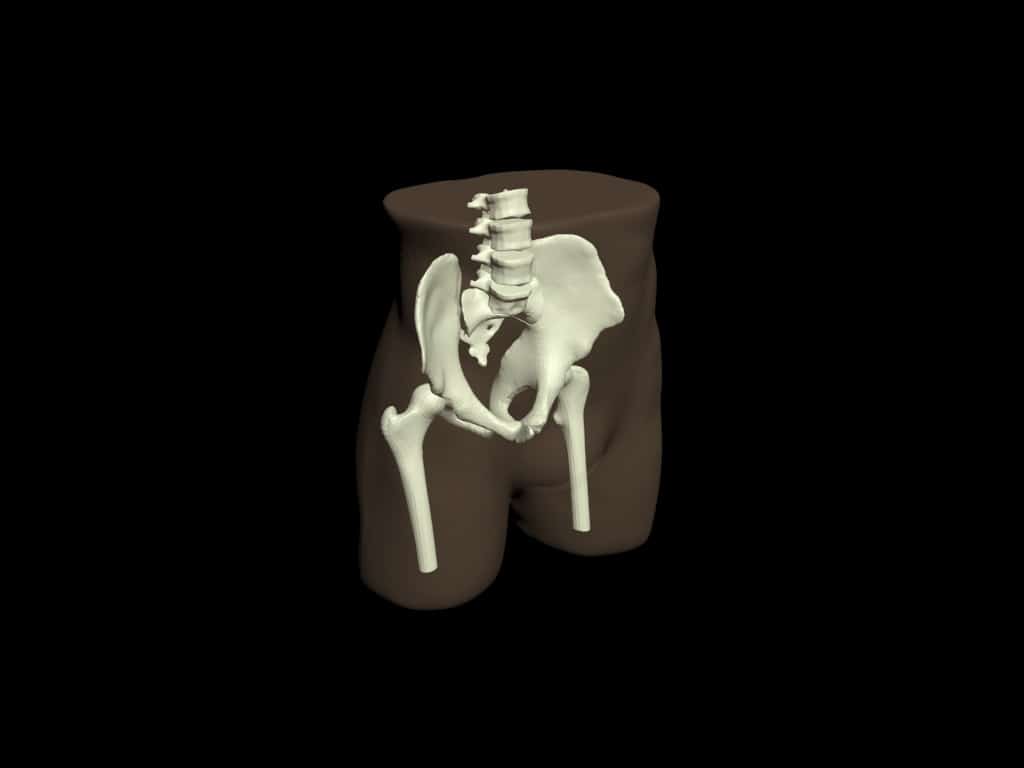

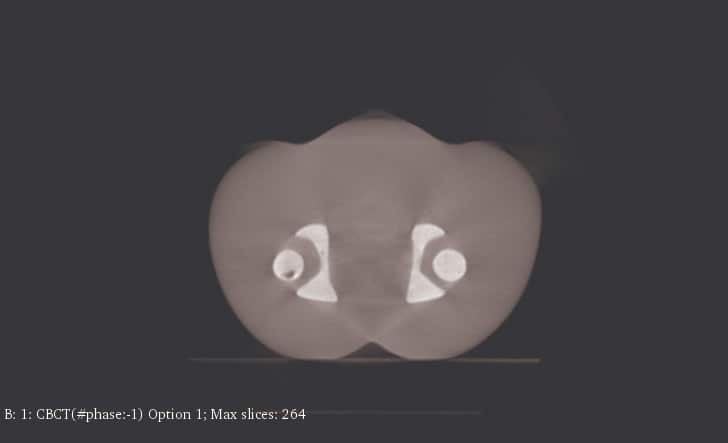

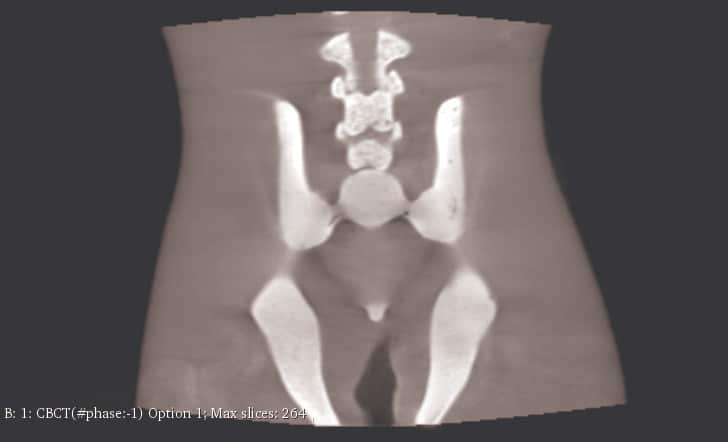

The Adult Pelvis Phantom is a realistic training tool and research device for medical imaging. Made of patented bone material, it is suitable for X-Ray/CT and MRI imaging. Customizable in size and shape, it offers a three-layered structure with adjustable porosity for specific project needs.

PLEASE NOTE: WE CAN CUSTOMIZE THIS PRODUCT BASED ON YOUR REQUIREMENTS
Add to quote
This product is already in your quote request list.
Browse the list
SKU: PE-A01 Categories: All Products, Adults, X-Ray CT, MRI Tags: x-ray phantom, MRI phantom, pelvis phantom
  • Description
Description

The Adult Pelvis Phantom’s structure and geometry is designed based on an average adult human (male). It is made out of realistic patented bone material that is suitable for X-Ray/CT and MRI imaging applications. It can be used as a tool to conduct medical imaging research, radiology training, testing, and calibration-related purposes. This product can be further customized to match our client’s specific requirements.

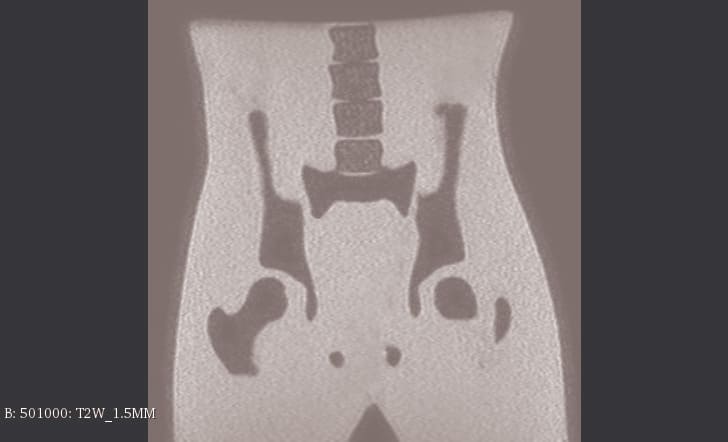

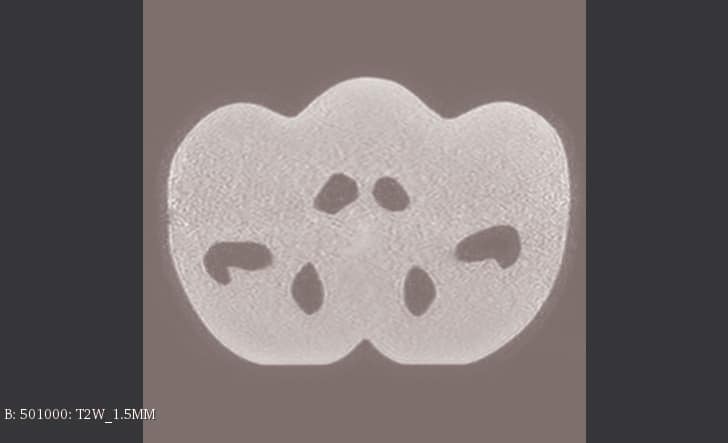

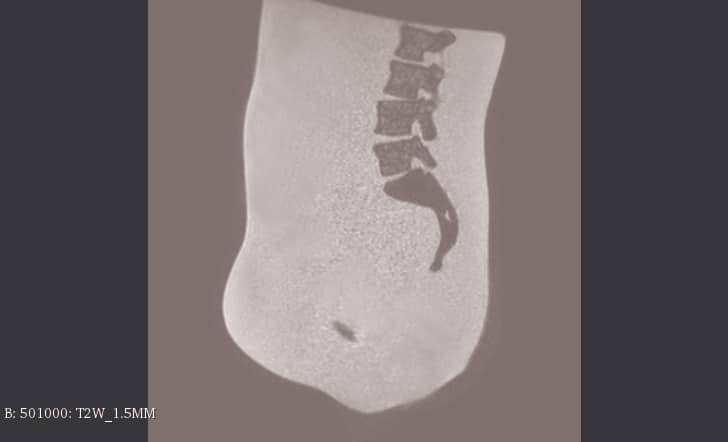

In terms of MRI applications, the phantom tissues have realistic T2 relaxation time values, which makes this product the best fit for any T2-weighted MRI imaging methods. Very good results can also be achieved with proton-density imaging methods. The phantom can still be imaged with T1-weighted methods, but the T1 values are less realistic, and they are within the range of about 100 ms.

The bones will consist of a realistic three-layered structure with inner porosity, which can be adjusted according to the requirement of wide variety of projects. The phantom can also be customized in size and shape (i.e. based on any individual’s CT scan).

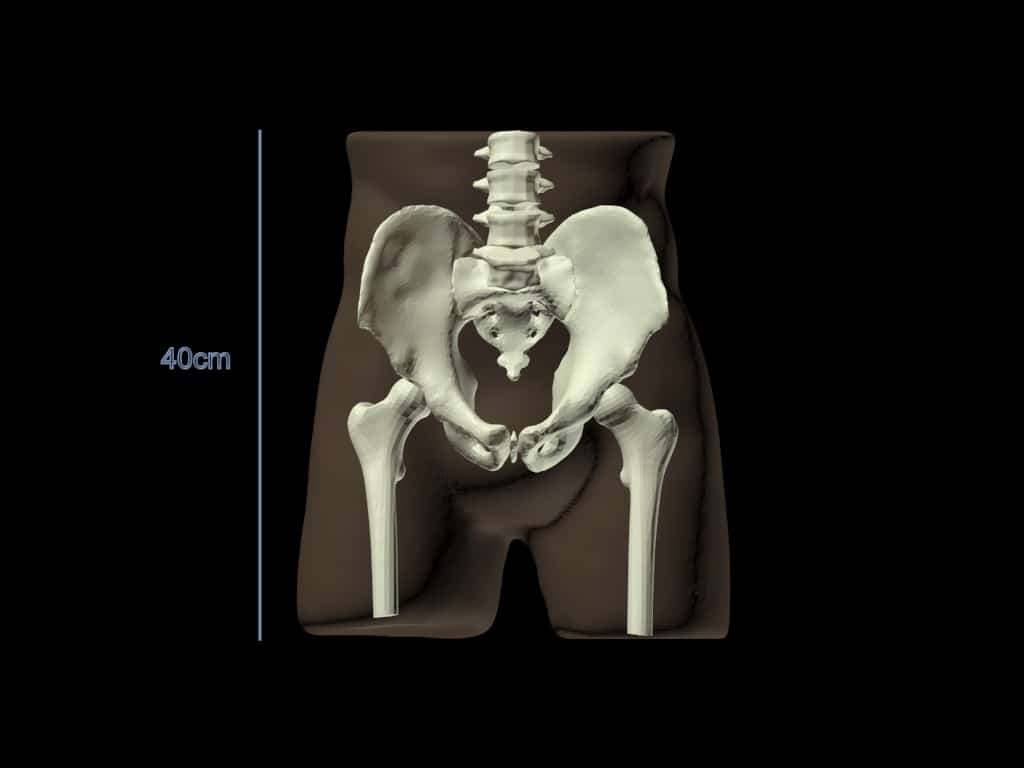

Anatomy
  • Spine (L5 – L2)

  • Pelvis Bone

  • Partial Left and Right Femoral Bones

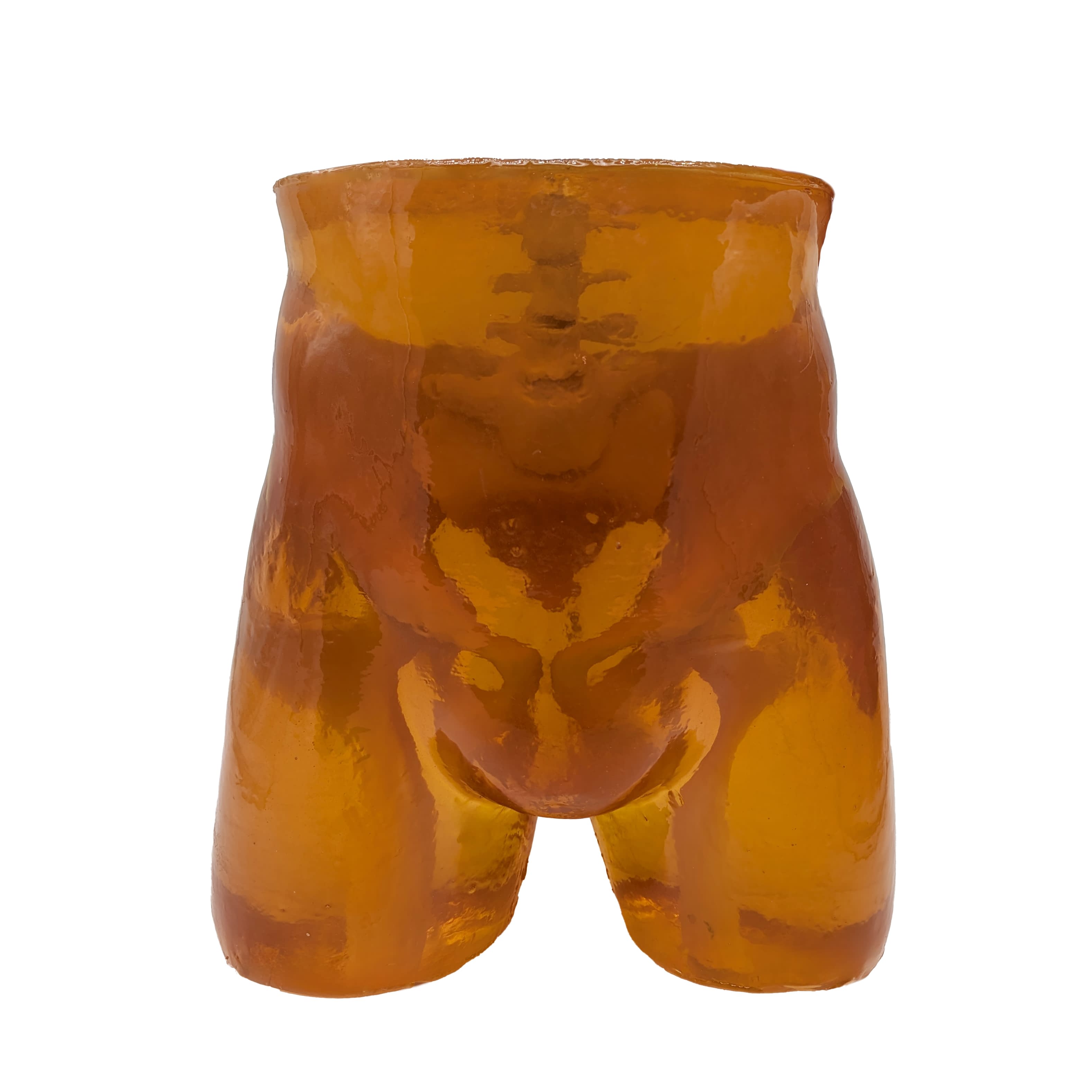

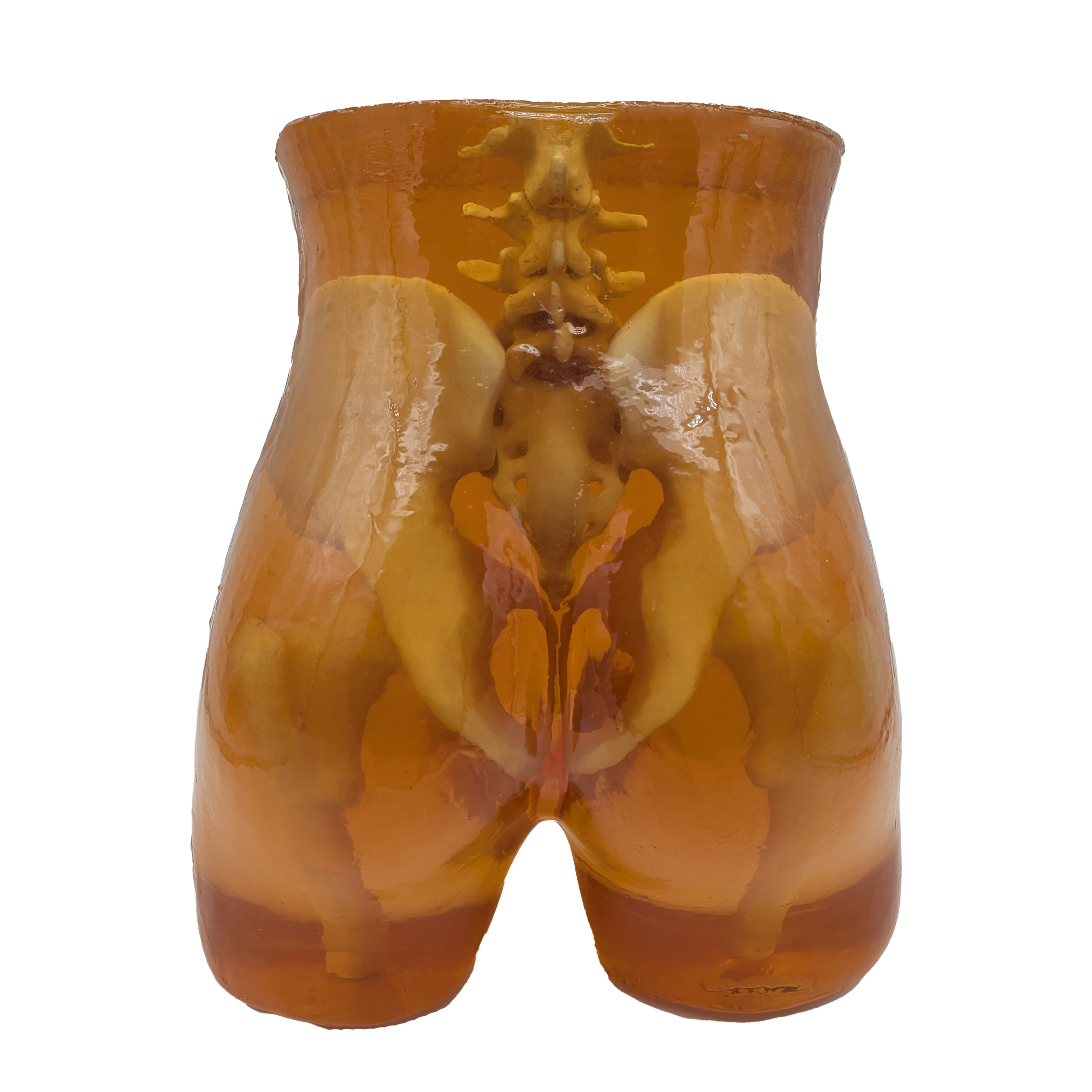

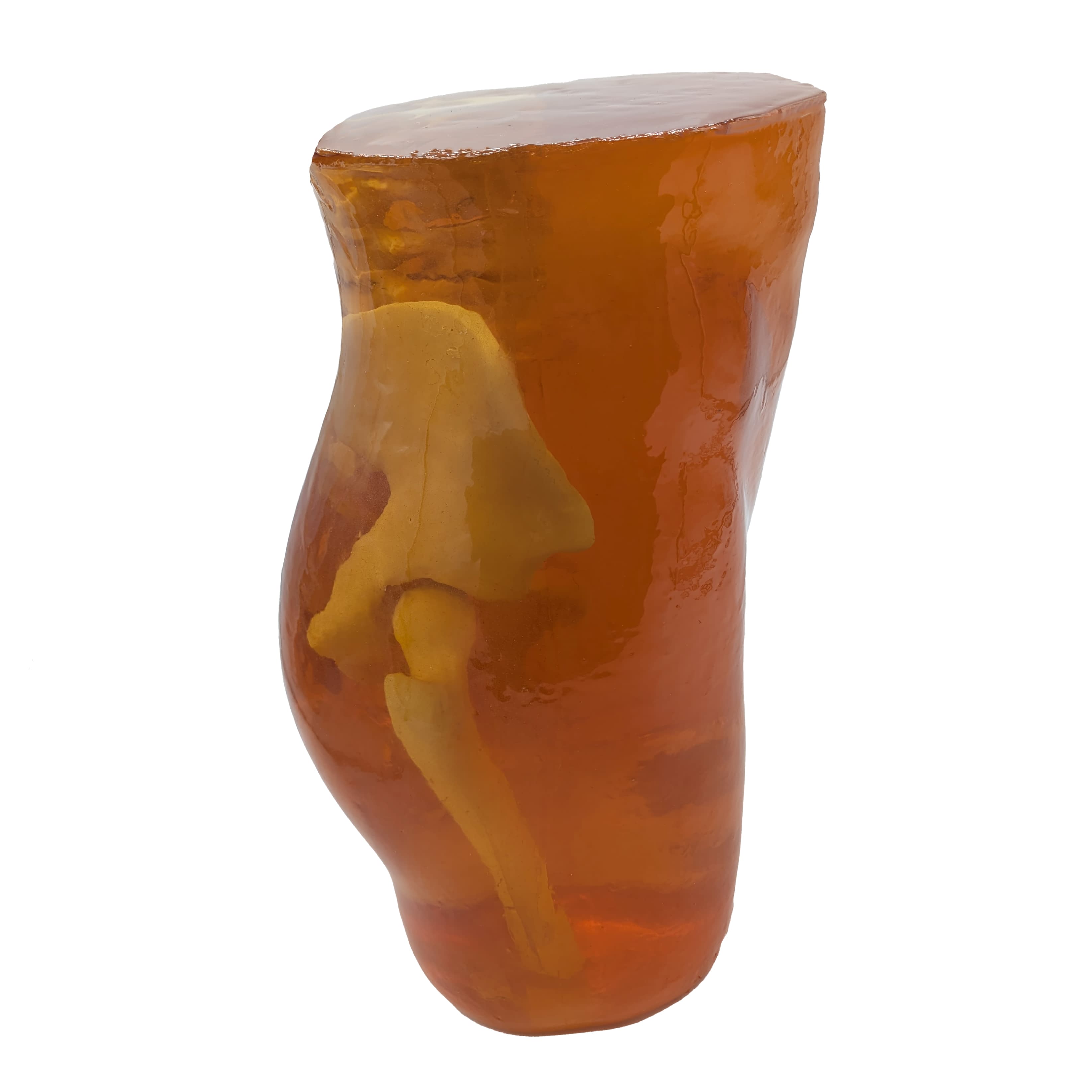

Note: By default, the phantom comes in a translucent amber appearance. The skin feature can be included upon request.

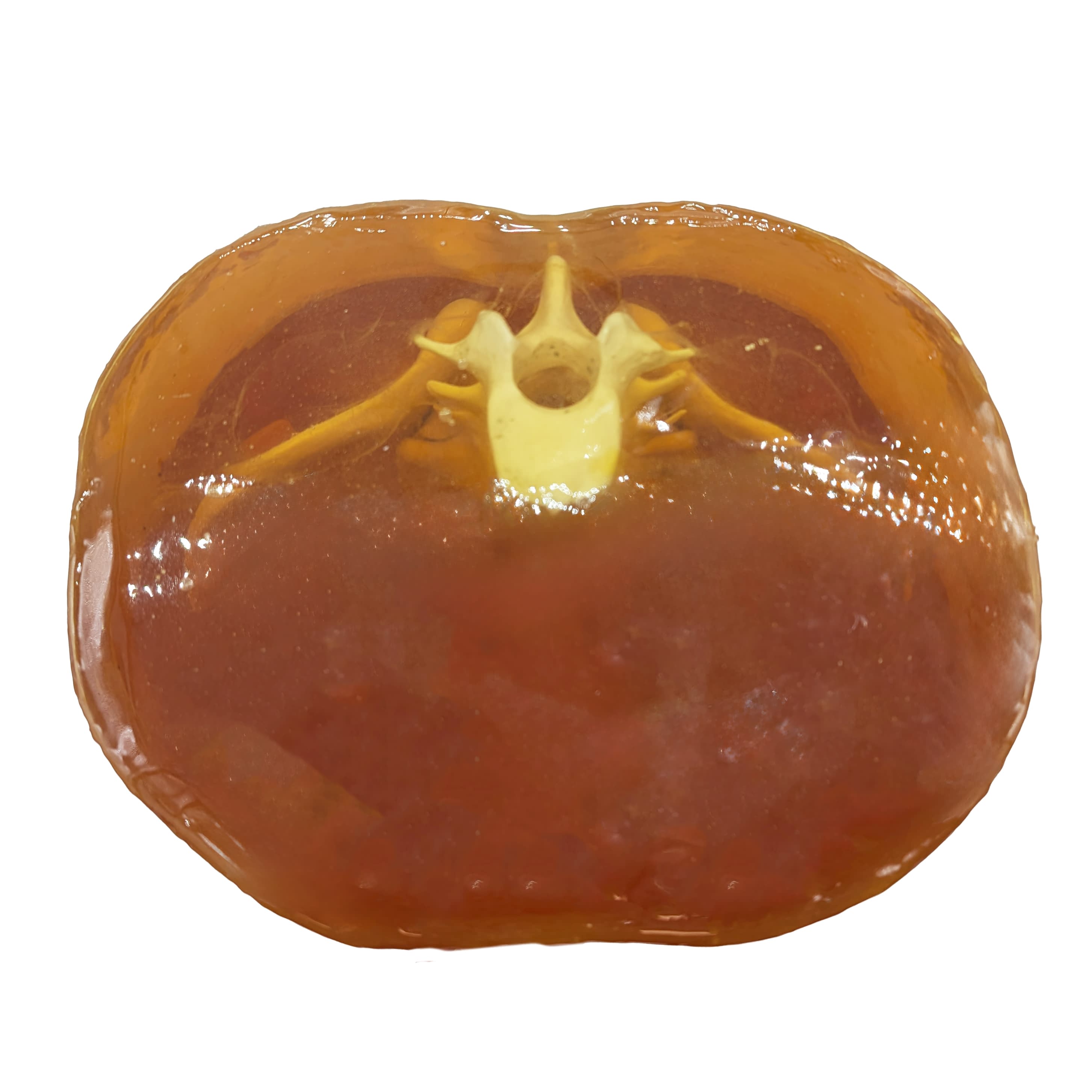

Custom Fat Layer with the pelvis (optional add-on)

Note: This is a custom fat layer which can be added upon request. With the addition of this fat layer, BMI of the phantom was increased to 33.

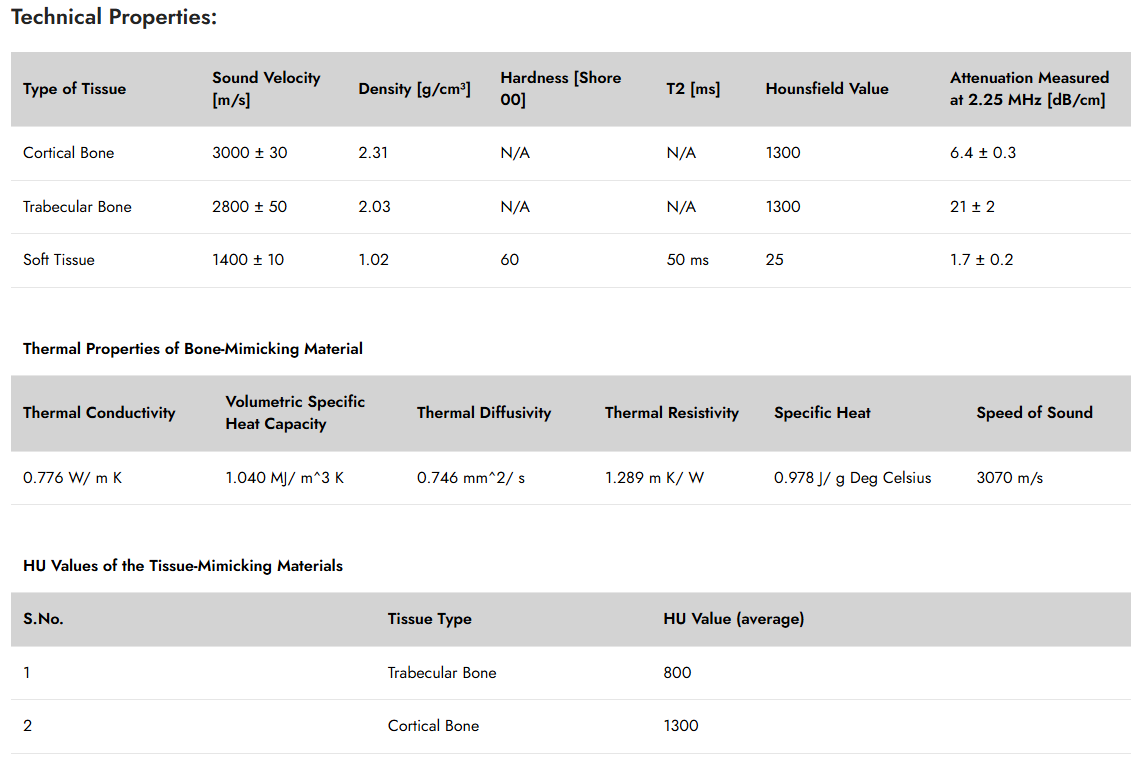

Technical Properties:

Type of Tissue Sound Velocity [m/s] Density [g/cm³] Hardness [Shore 00] T2 [ms] Hounsfield Value Attenuation Measured at 2.25 MHz [dB/cm]
Cortical Bone 3000 ± 30 2.31 N/A N/A 1300 6.4 ± 0.3
Trabecular Bone 2800 ± 50 2.03 N/A N/A 1300 21 ± 2
Soft Tissue 1400 ± 10 1.02 60 50 ms 25 1.7 ± 0.2
Thermal Properties of Bone-Mimicking Material
Thermal Conductivity Volumetric Specific Heat Capacity Thermal Diffusivity Thermal Resistivity Specific Heat Speed of Sound
0.776 W/ m K 1.040 MJ/ m^3 K 0.746 mm^2/ s 1.289 m K/ W 0.978 J/ g Deg Celsius 3070 m/s
HU Values of the Tissue Mimicking-Materials
S.No. Tissue Type HU Value (Average)
1 Soft Tissue -25
2 Trabecular Bone 800
3 Cortical Bone 1300
4 Bladder 35
5 Rectum Wall 100
6 Sigmoid Colon Wall 100

View our technical properties, thermal properties of bone-mimicking tissue, and HU values of the tissue-mimicking material in the tables accessible through the button below.

View Tables
Included in Order
  • Adult Pelvis Phantom

  • User Manual/Assembly Instructions

  • 2-Year Warranty & Unlimited Customer Service

  • Hard Carry Case

Size & Weight

Phantom:

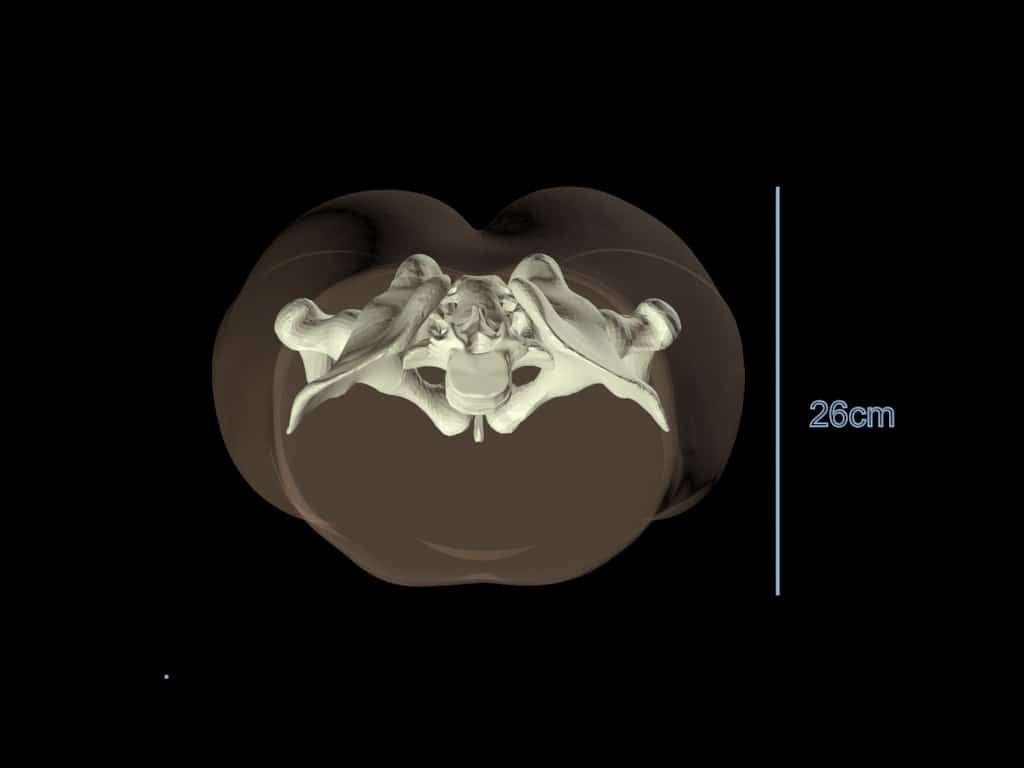

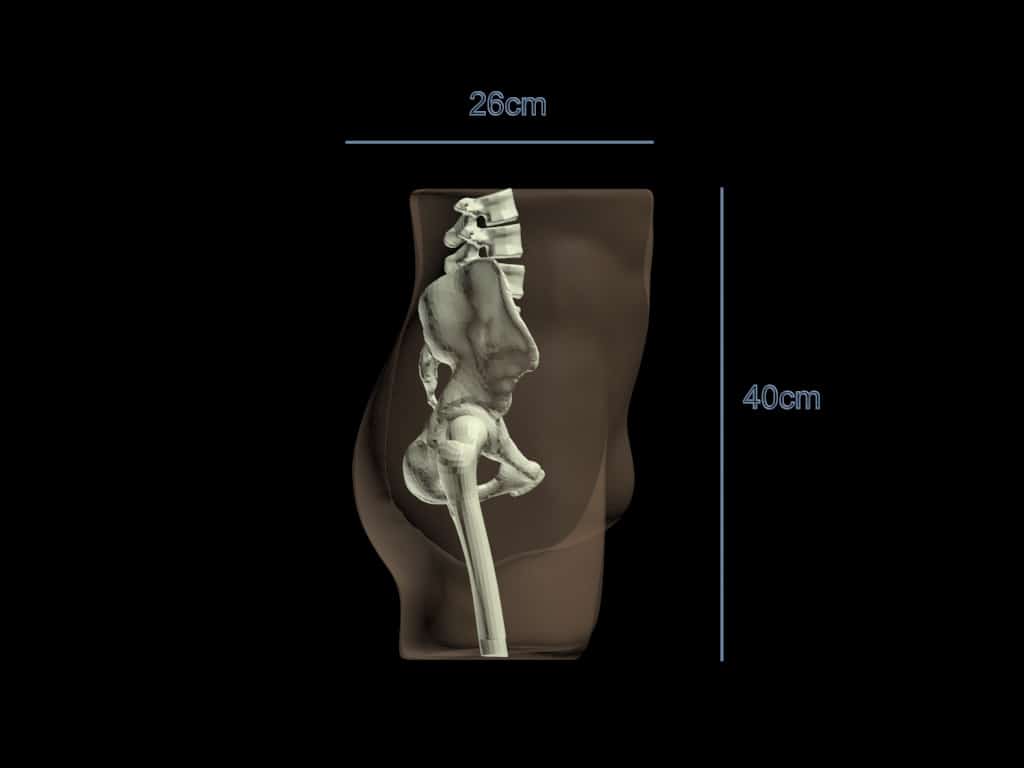

  • Size: 14 x 10 x 16 Inches
  • Weight: 49 Lbs (approx.).

Shipment:

  • Size: 32 x 23 x 13 Inches
  • Weight: 88 Lbs (approx.)
Materials Used:
  • Soft tissue and organs: Composition of urethane-based soft resin
  • Synthetic bones: Patented ceramic-reinforced epoxy-based composite material
FAQ
  • Please refer to our FAQ page.
